ABSORBER CONTROL ACTUATOR (for Front Side): Components

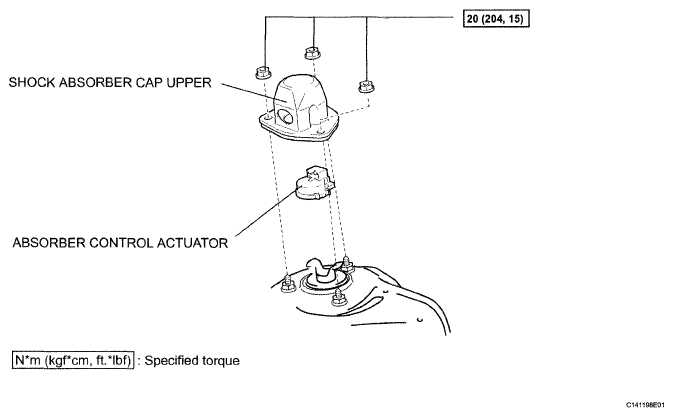

Fig 1: Identifying Absorber Control Actuator Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Absorber Control Actuator Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
