Active Stabilizer Suspension System
›
System Diagram
System Diagram

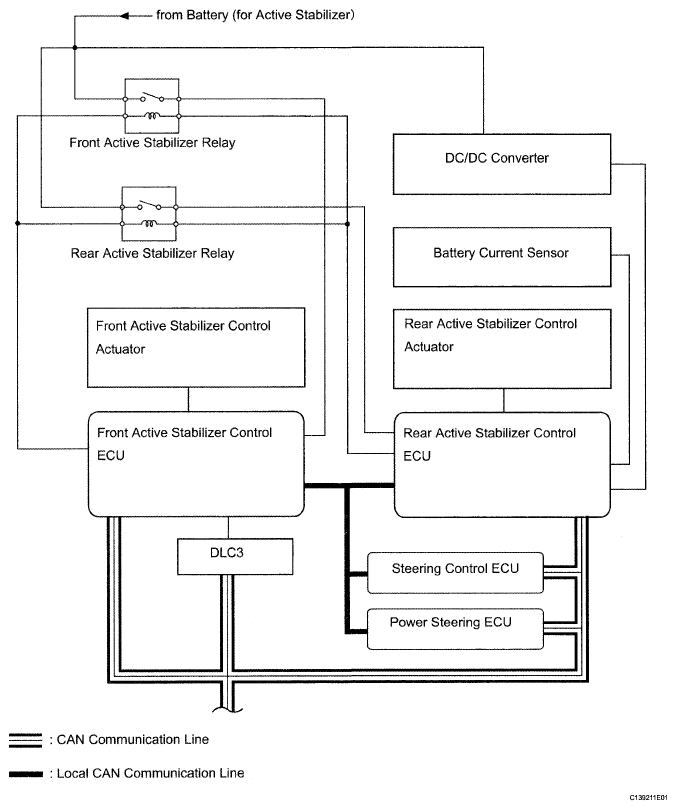

Fig 1: Suspension Control - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Suspension Control - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
