Electronic Controlled Automatic Transmission System
›
Parts Location
Parts Location

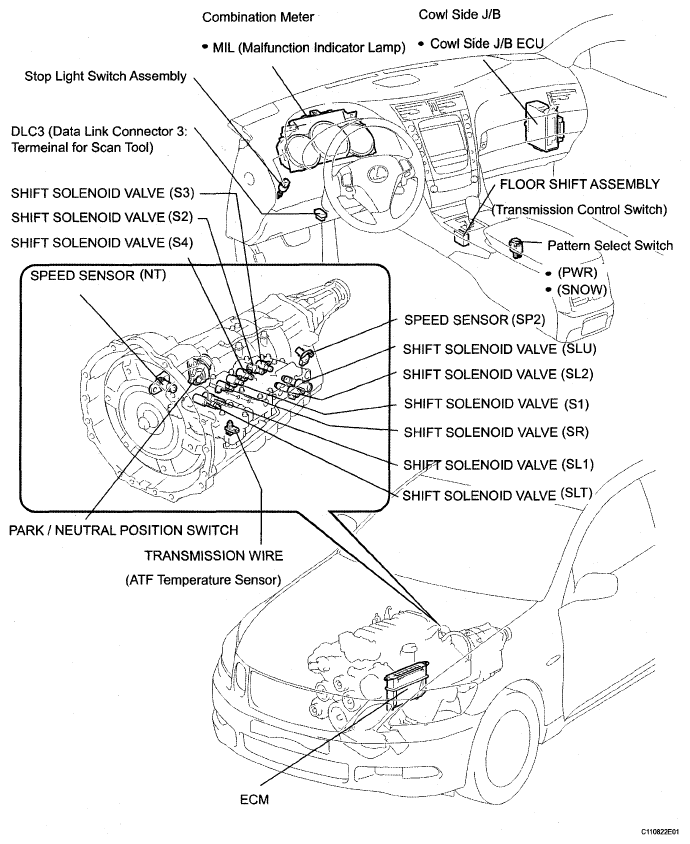

Fig 1: Identifying Electronic Controlled Automatic Transmission System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
