System Diagram (2006/07-)
System Diagram (2006/07-)

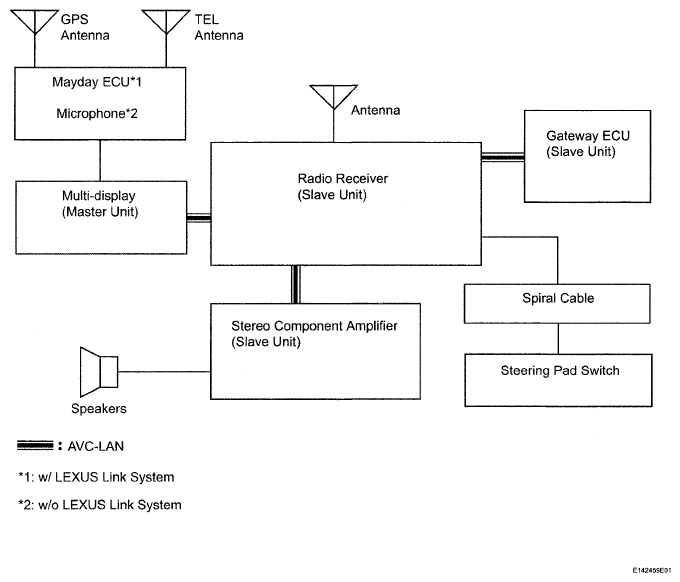

Fig 1: Audio And Visual System Diagram (2006/07)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
