Stereo Component Amplifier: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL NO. 2 AMPLIFIER BRACKET
   1. Set the bracket's aligning protrusions labeled A into the amplifier's holes.
   2. Install the bracket with the 2 screws labeled B
      Fig 1: Installing Bracket With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 1 AMPLIFIER BRACKET
   1. Set the bracket's aligning protrusions labeled A into the amplifier's holes.
   2. Install the bracket with the 2 screws labeled B.
      Fig 2: Installing Bracket With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH AMPLIFIER BRACKET

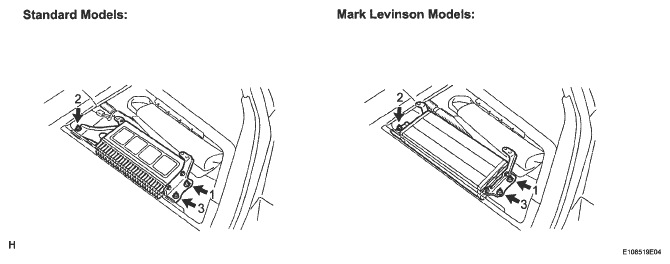

   Fig 3: Installing Amplifier With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the amplifier with the 3 nuts.

      HINT:

      Tighten the nuts in the order shown in the illustration.

4. INSTALL LUGGAGE COMPARTMENT COVER RH
5. INSTALL LUGGAGE COMPARTMENT FLOOR MAT  (See INSTALLATION )
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION (2006/02-2006/07) ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
