Navigation Ecu: Components

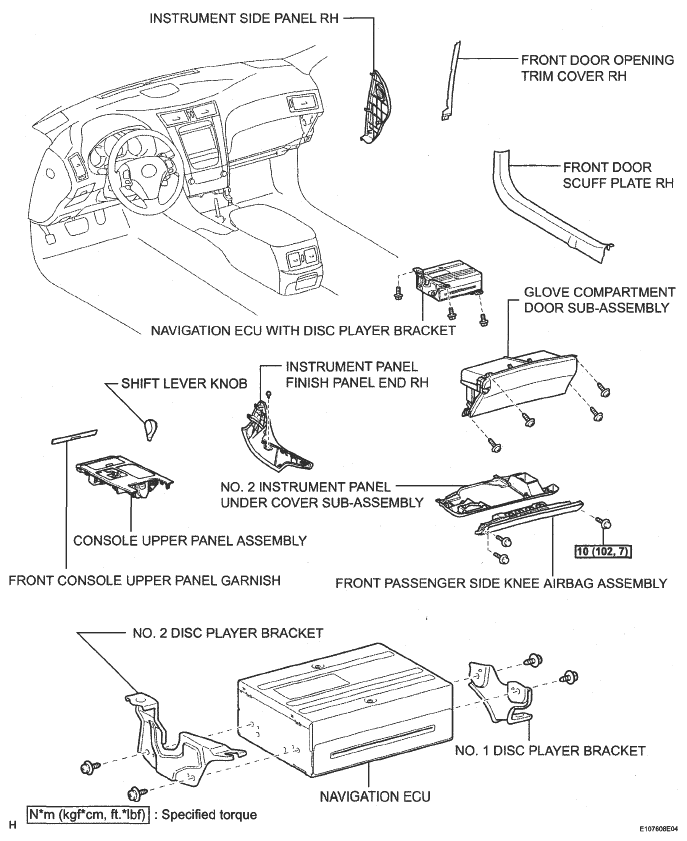

Fig 1: Navigation ECU Replacement Components With Torque Specifications
G05314707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
