Driver Side Door Entry Unlock Function does not Operate
›
Wiring Diagram
Driver Side Door Entry Unlock Function does not Operate: Wiring Diagram

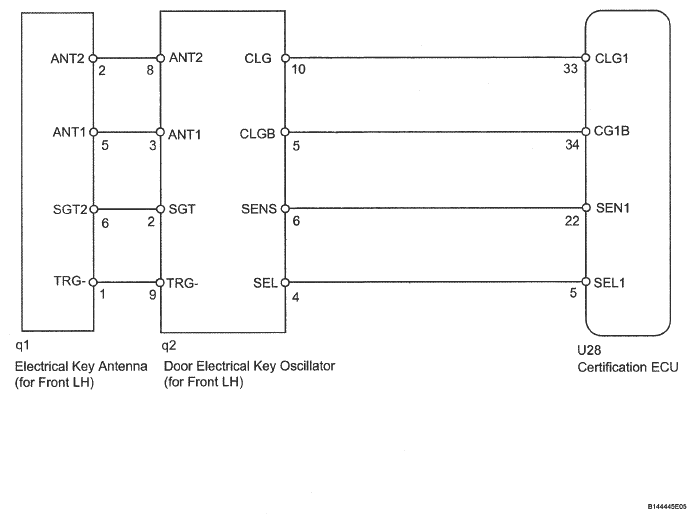

Fig 1: Driver Side Door Entry Unlock Function Does Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
