Smart Access System With Push-Button Start
›
Entry Functions do not Operate at All
›
Wiring Diagram
Entry Functions do not Operate at All: Wiring Diagram

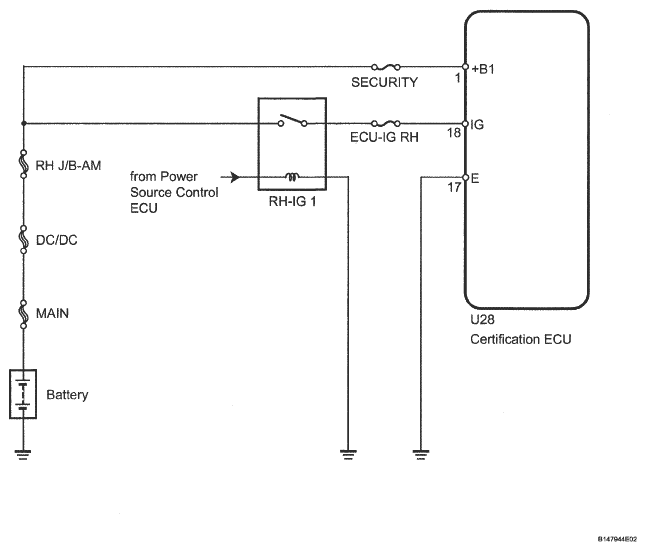

Fig 1: Entry Functions Do Not Operate At All - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
