Inspection Procedure

1. Check that the manual door lock and unlock function operates normally.

   OK: Manual door lock and unlock function operates normally.

NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: GO TO Next Step

1. Select the ACTIVE TEST, use the intelligent tester to generate a control command, and then check that the oscillator operates.

   Certification ECU:

   CERTIFICATION ECU REFERENCE CHART



   Item	Test Details
   P TRANSMITTER	Front passenger side oscillator ON / OFF

   OK: When key is brought close to door oscillator that is OFF, indicator light on key illuminates.

OK: REPLACE CERTIFICATION ECU

NG: GO TO Next Step

1. Disconnect the U28 ECU connector.
2. Disconnect the p2 oscillator connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART



   Tester Connection	Specified Condition
   U28-35 (CLG2) - p2-10 (CLG)	Below 1 Ω
   U28-36 (CG2B) - p2-5 (CLGB)	Below 1 Ω
   U28-35 (CLG2) or p2-10 (CLG) - Body ground	10 kΩ or higher
   U28-36 (CG2B) or p2-5 (CLGB) - Body ground	10 kΩ or higher

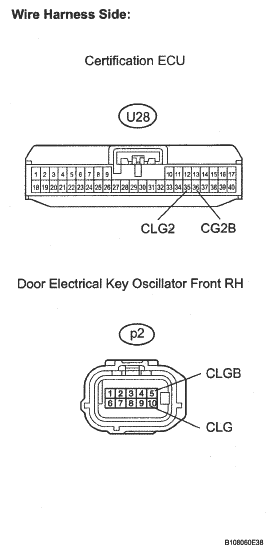

Fig 1: Identifying U28 ECU And P2 Oscillator Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

1. Disconnect the p2 oscillator connector.
2. Disconnect the p1 antenna connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART



   Tester Connection	Specified Condition
   p2-2 (SGT) - p1-6 (SGT2)	Below 1 Ω
   p2-3 (ANT1) - p1-5 (ANT1)	Below 1 Ω
   p2-8 (ANT2) - p1-2 (ANT2)	Below 1 Ω
   p2-9 (TRG-) - p1-1 (TRG-)	Below 1 Ω
   p2-2 (SGT) or p1-6 (SGT2) - Body ground	10 kΩ or higher
   p2-3 (ANT1) or p1-5 (ANT1) - Body ground	10 kΩ or higher
   p2-8 (ANT2) or p1-2 (ANT2) - Body ground	10 kΩ or higher
   p2-9 (TRG-) or p1-1 (TRG-) - Body ground	10 kΩ or higher

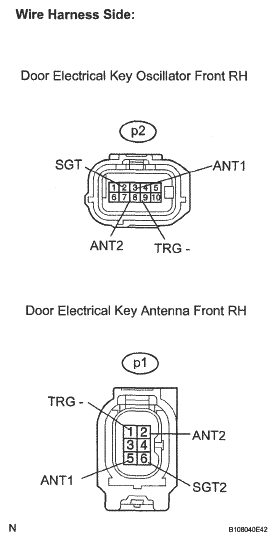

Fig 2: Identifying P2 Oscillator And P1 Antenna Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

1. Disconnect the p2 oscillator connector.
2. Disconnect the M3 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART



   Tester Connection	Specified Condition
   p2-1 (+B) - M3-7 (OSCB)	Below 1 Ω
   p2-7 (GND) - M3-20 (OSCE)	Below 1 Ω
   p2-1 (+B) or M3-7 (OSCB) - Body ground	10 kΩ or higher
   p2-7 (GND) or M3-20 (OSCE) - Body ground	10 kΩ or higher

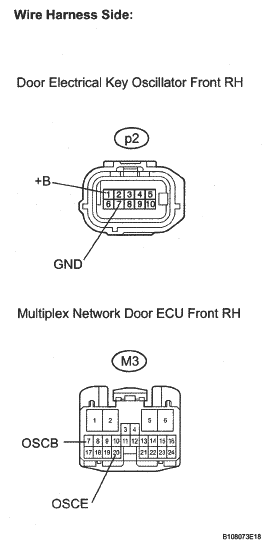

Fig 3: Identifying P2 Oscillator And M3 ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

1. Disconnect the p1 antenna connector.
2. Disconnect the M3 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART



   Tester Connection	Specified Condition
   p1-3 (TRG+) - M3-18 (TRG+)	Below 1 Ω
   p1-3 (TRG+) or M3-18 (TRG+) - Body ground	10 kΩ or higher

Fig 4: Identifying P1 Antenna And M3 ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

1. After replacing the electrical key antenna front RH with a normal one, check that the entry lock and unlock functions operate normally.

   OK: Entry lock and unlock functions operate normally.

OK: END (ELECTRICAL KEY ANTENNA FRONT RH IS DEFECTIVE)

NG: GO TO Next Step

1. After replacing the door electrical key oscillator front RH with a normal one, check that the entry lock and unlock functions operate normally.

   OK: Entry lock and unlock functions operate normally.

NG: REPLACE CERTIFICATION ECU

OK: END (DOOR ELECTRICAL KEY OSCILLATOR FRONT RH IS DEFECTIVE)
