Inspection Procedure

  1. CHECK LUGGAGE DOOR OPENING MAIN SWITCH
    1. Turn the luggage door opening switch OFF and check that the entry luggage compartment door opener function operates normally.
      Fig 1: Checking Luggage Door Opening Main Switch
      G05299275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Entry luggage compartment door opener function operates normally.

    OK: END

    NG: GO TO Next Step

  2. CHECK MANUAL LUGGAGE COMPARTMENT DOOR OPENER OPERATION
    1. Check that the manual luggage compartment door operates function operates normally.

      OK: Manual luggage compartment door opener function operates normally.

    NG:  GO TO LUGGAGE COMPARTMENT DOOR OPENER SYSTEM

    OK: GO TO Next Step

  3. READ VALUE OF INTELLIGENT TESTER (DOOR COURTESY SWITCH)
    1. Check the DATA LIST for proper functioning of each door courtesy switch.

      Main body ECU RH:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      D DOR CTY SW Driver side door courtesy switch / ON or OFF ON: Courtesy switch is pushed
      OFF: Courtesy switch is not pushed
      P DOR CTY SW Front passenger side door courtesy switch / ON or OFF ON: Courtesy switch is pushed
      OFF: Courtesy switch is not pushed
      RL DOR CTY SW Rear LH side door courtesy switch / ON or OFF ON: Courtesy switch is pushed
      OFF: Courtesy switch is not pushed
      RR DOR CTY SW Rear RH side door courtesy switch / ON or OFF ON: Courtesy switch is pushed
      OFF: Courtesy switch is not pushed

      Multiplex network rear ECU:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LUGG COURTESY SW Luggage compartment door switch / ON or OFF ON: Courtesy switch is pushed
      OFF: Courtesy switch is not pushed

      OK: ON (door courtesy switch is pushed) appears on the screen.

    NG:  GO TO LIGHTING SYSTEM

    OK: GO TO Next Step

  4. READ VALUE OF INTELLIGENT TESTER (LOCK POSITION SWITCH)
    1. Check the DATA LIST for proper functioning of the door lock position switch.

      Multiplex network master switch:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LOCK POS SW Door unlock detection switch signal / ON or OFF ON: Door is unlocked
      OFF: Door is locked

      Multiplex network door ECU front RH:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LOCK POS SW Door unlock detection switch signal / ON or OFF ON: Door is unlocked
      OFF: Door is locked

      Multiplex network door ECU rear LH:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LOCK POS SW Door unlock detection switch signal / ON or OFF ON: Door is unlocked
      OFF: Door is locked

      Multiplex network door ECU rear RH:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LOCK POS SW Door unlock detection switch signal / ON or OFF ON: Door is unlocked
      OFF: Door is locked

      OK: ON (Door is unlocked) appears on the screen.

    NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

    OK: GO TO Next Step

  5. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (LUGGAGE ELECTRICAL KEY ANTENNA [for Inner])
    1. Select the ACTIVE TEST, use the intelligent tester to generate a control command, and then check that the antenna (for inner) operates.

      Certification ECU:

      CERTIFICATION ECU REFERENCE CHART

      Item Test Details
      IN_BDR TRNSMTTR Luggage compartment door inner antenna ON / OFF

      OK: When key is brought close to luggage compartment door antenna (for inner) is turned OFF and indicator on key illuminates.

    NG:  GO TO step  11

    OK: GO TO Next Step

  6. CHECK WIRE HARNESS (DOOR CONTROL RECEIVER - BATTERY AND BODY GROUND)
    1. Disconnect the U36 receiver connector.
    2. Measure the voltage and resistance of the wire harness side connector.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      U36-2 (+5) - Body ground 5V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      U36-6 (GND) - Body ground Below 1 Ω
      3. Fig 2: Identifying U36 Receiver Connector Terminals
      G05311061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  7. CHECK WIRE HARNESS (DOOR CONTROL RECEIVER - CERTIFICATION ECU)
    1. Disconnect the U36 receiver connector.
    2. Disconnect the U28 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      U36-3 (DATA) - U28-38 (RDA) Below 1 Ω
      U36-5 (RSSI) - U28-39 (RSSI) Below 1 Ω
      U36-4 (ASEL) - U28-37 (ASEL) Below 1 Ω
      U36-3 (DATA) or U28-38 (RDA) - Body ground 10 kΩ or higher
      U36-5 (RSSI) or U28-39 (RSSI) - Body ground 10 kΩ or higher
      U36-4 (ASEL) or U28-37 (ASEL) -Body ground 10 kΩ or higher

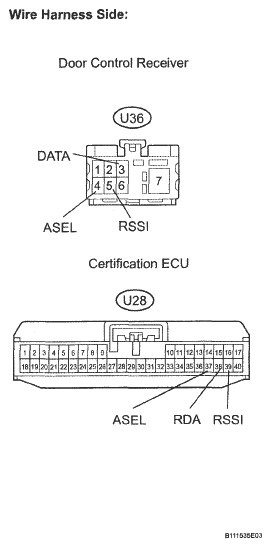

      4. Fig 3: Identifying U36 Receiver And U28 ECU Connector Terminals
      G05311062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  8. CHECK DOOR CONTROL RECEIVER
    1. Measure the frequency of the receiver connector.

      Standard frequency

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Condition Specified Condition
      7 (ANT) - 6 (GND) Key is placed near center of luggage compartment and luggage compartment door is closed Above 0 Hz
      2. Fig 4: Checking Door Control Receiver
      G05299281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE DOOR CONTROL RECEIVER

    OK: GO TO Next Step

  9. CHECK LUGGAGE ELECTRICAL KEY ANTENNA (for Inner)
    1. Disconnect the V33 connector.
    2. Measure the voltage and resistance of the wire harness side connectors.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      V33-3 (CLGB) - Body ground 10 to 14 V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      V33-1 (CLG6) - Body ground Below 1 Ω
      3. Fig 5: Identifying V33 Connector Terminals
      G05311064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG:  GO TO step  12

    OK: GO TO Next Step

  10. READ VALUE OF INTELLIGENT TESTER (POWER LUGGAGE DOOR OPEN SWITCH)
    1. Check the DATA LIST for proper functioning of the power luggage door open switch.

      Cowl Side Junction Block ECU LH:

      NORMAL CONDITION CHART

      Item Measurement Item / Range (Display) Normal Condition
      LUGG PUSH SW Power luggage door open switch / ON or OFF ON: Power luggage door open switch is pushed
      OFF: Power luggage door open switch is not pushed

      OK: ON (power luggage door open switch is pushed) appears on the screen.

    NG: REPLACE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    OK: GO TO Next Step

  11. CHECK OPERATION OF CERTIFICATION ECU
    1. After replacing the certification ECU with a normal one, check that the key luggage lock-in prevention function operates normally.

      OK: Key luggage lock-in prevention function operates normally.

    NG: REPLACE MAIN BODY ECU LH

    OK: END (CERTIFICATION ECU IS DEFECTIVE)

  12. CHECK WIRE HARNESS (ANTENNA - ECU)
    1. Disconnect the V33 antenna connector.
    2. Disconnect the U28 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      V33-1 (CLG6) - U28-15 (CLG7) Below 1 Ω
      V33-1 (CLG6) or U28-15 (CLG7) -Body ground 10 kΩ or higher
      V33-3 (CLGB) - U28-16 (CG7B) Below 1 Ω
      V33-3 (CLGB) or U28-16 (CG7B) -Body ground 10 kΩ or higher

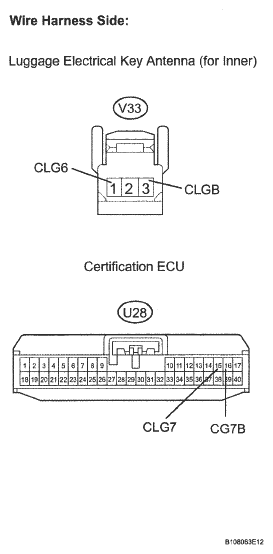

      4. Fig 6: Identifying V33 Antenna And U28 ECU Connector Terminals
      G05311065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  13. CHECK OPERATION OF LUGGAGE ELECTRICAL KEY ANTENNA (for Inner)
    1. After replacing the luggage electrical key antenna (for inner) with a normal one, check that the key luggage lock-in prevention function operates normally.

      OK: Key luggage lock-in prevention function operates normally.

    NG: REPLACE CERTIFICATION ECU

    OK: END (LUGGAGE ELECTRICAL KEY ANTENNA IS DEFECTIVE [for INNER])
