Door Lock
›
Smart Access System With Push-Button Start
›
Room Oscillator does not Recognize Key
›
Wiring Diagram
Room Oscillator does not Recognize Key: Wiring Diagram

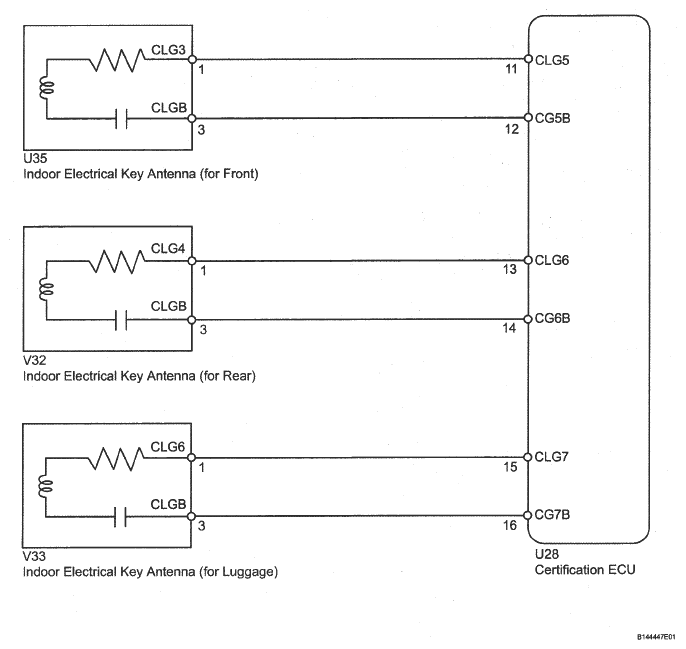

Fig 1: Room Oscillator Does Not Recognize Key - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
