Outer Rear View Mirror: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

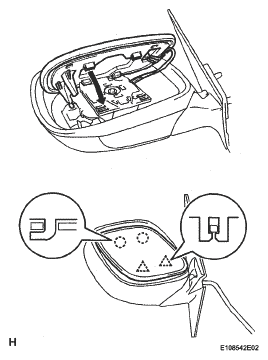

1. INSTALL OUTER REAR VIEW MIRROR COVER
   1. Attach the claw and 3 clips to install the mirror cover.
      Fig 1: Identifying Outer Rear View Mirror Cover Claw And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL OUTER MIRROR LIGHT ASSEMBLY
   1. Install the mirror light.
      Fig 2: Identifying Outer Mirror Light

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR VISOR
   1. Install the mirror visor with the 4 screws.
   Fig 3: Identifying Outer Rear View Mirror Visor Screws
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH
   1. Connect the 2 connectors.
   2. Attach the 2 claws and clips to install the mirror.
      Fig 4: Identifying Outer Rear View Mirror Claws And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
   1. Install the mirror with the 3 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   2. Attach the clip.
   3. Connect the connector.
   Fig 5: Identifying Outer Rear View Mirror Bolts
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL DOOR FRAME GARNISH LH  (See ADJUSTMENT )
7. INSTALL FRONT DOOR TRIM COVER LH  (See ADJUSTMENT )
8. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH  (See INSTALLATION )
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH  (See INSTALLATION )
