Brake Control Warning Light Remains ON: Wiring Diagram

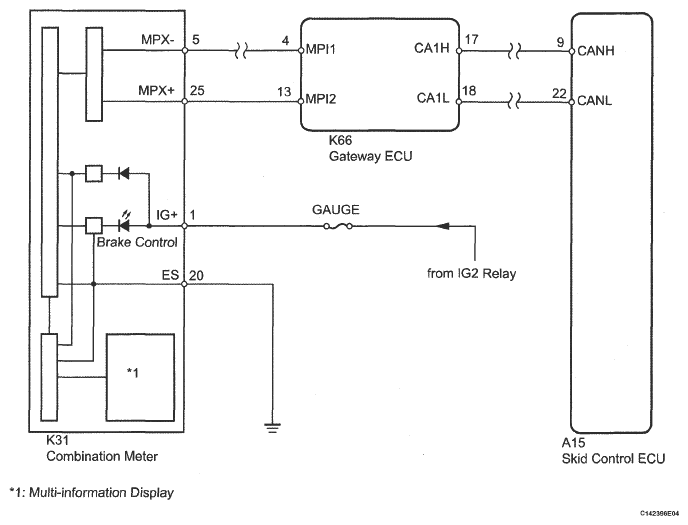

Fig 1: Brake Control Warning Light Remains ON - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
