Back-Up Light: Notes

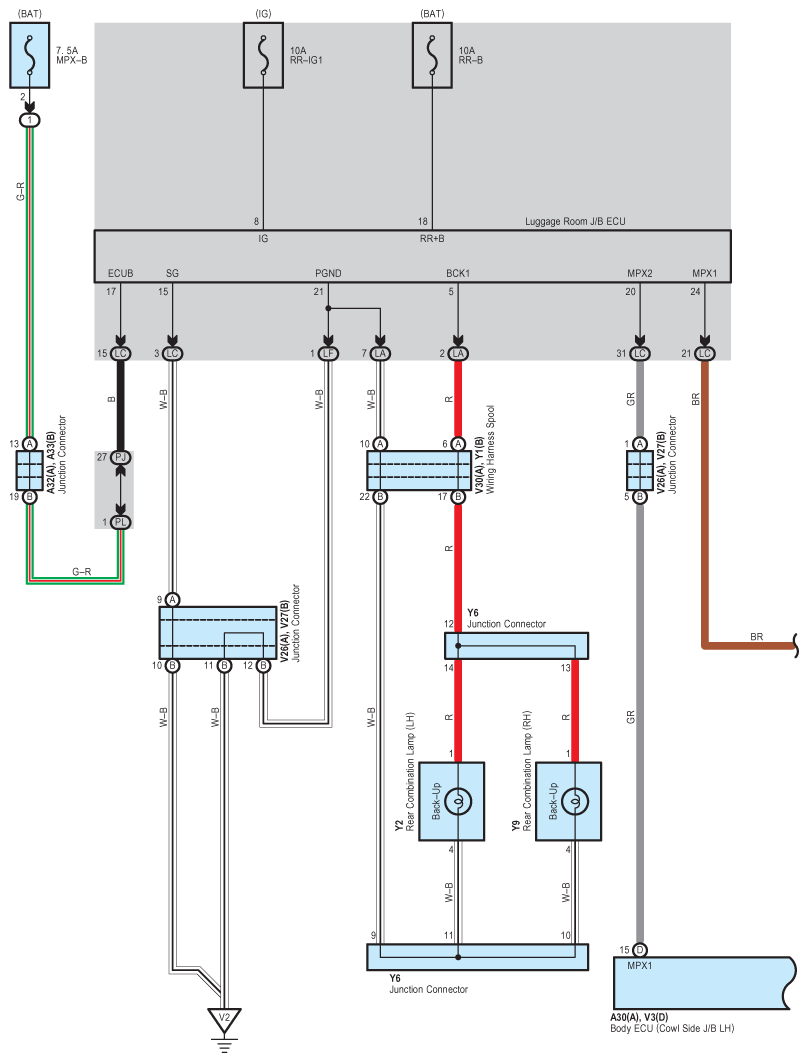

Fig 1: Back-Up Light Wiring Diagram (1 Of 3)
G08919478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

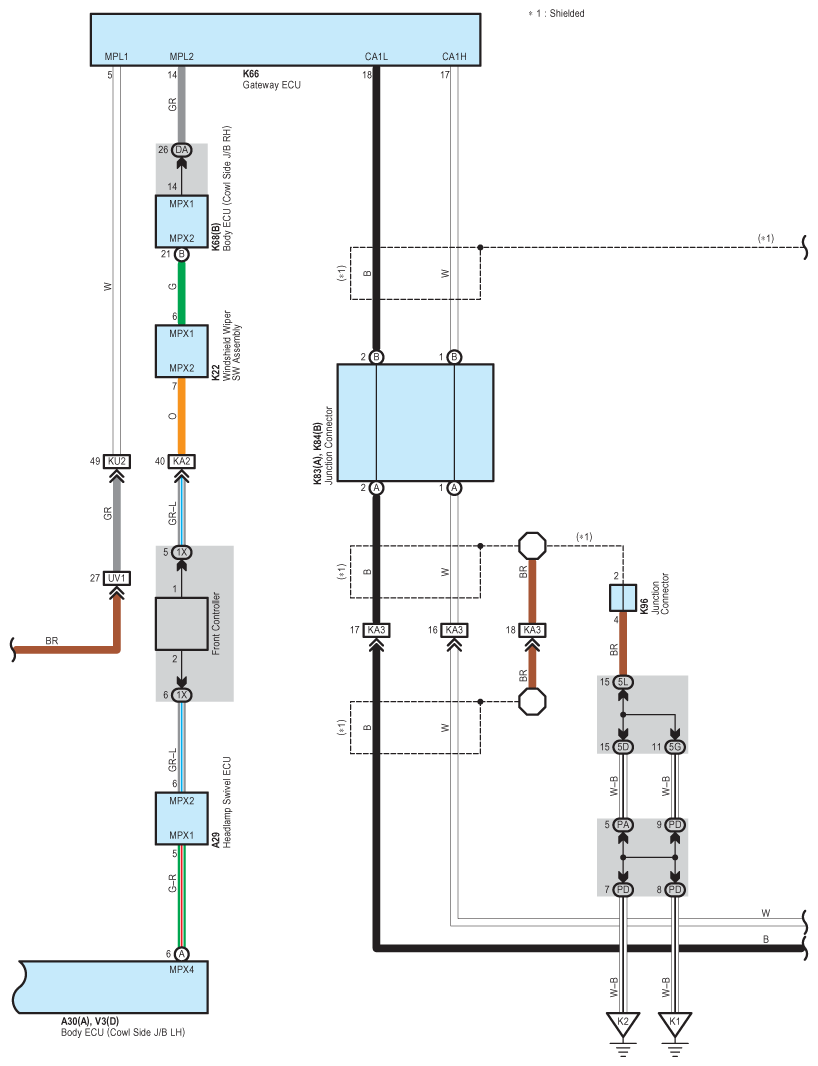

Fig 2: Back-Up Light Wiring Diagram (2 Of 3)
G08919479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

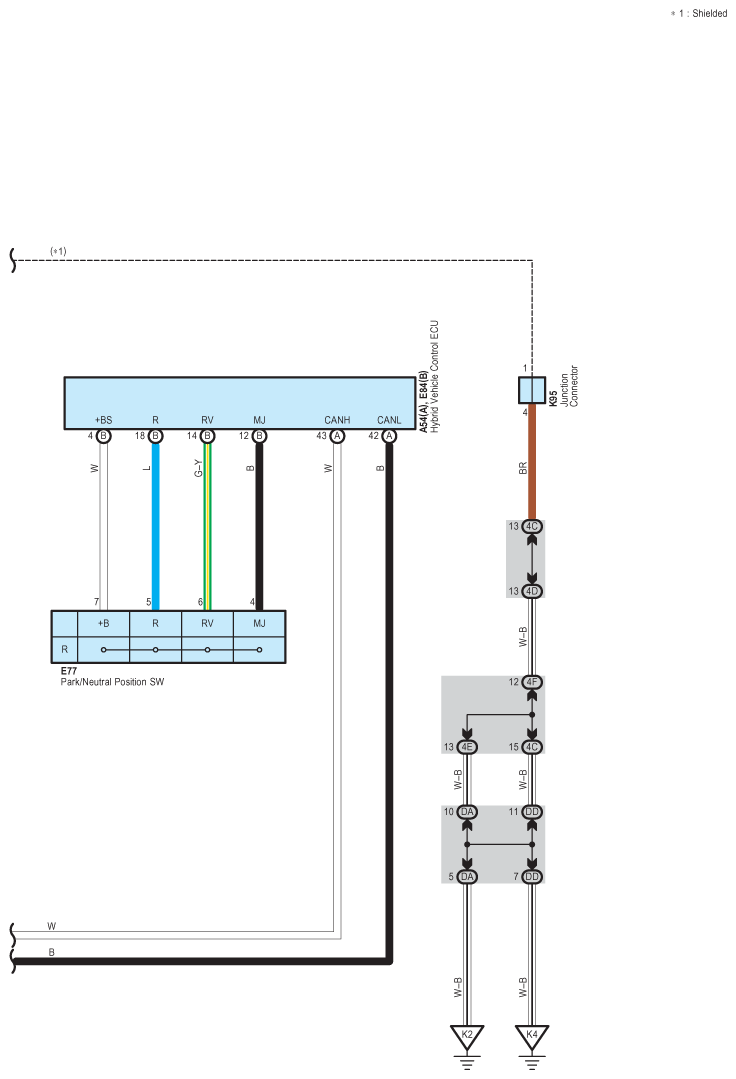

Fig 3: Back-Up Light Wiring Diagram (3 Of 3)
G08919480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
