Cooling Fan: Notes

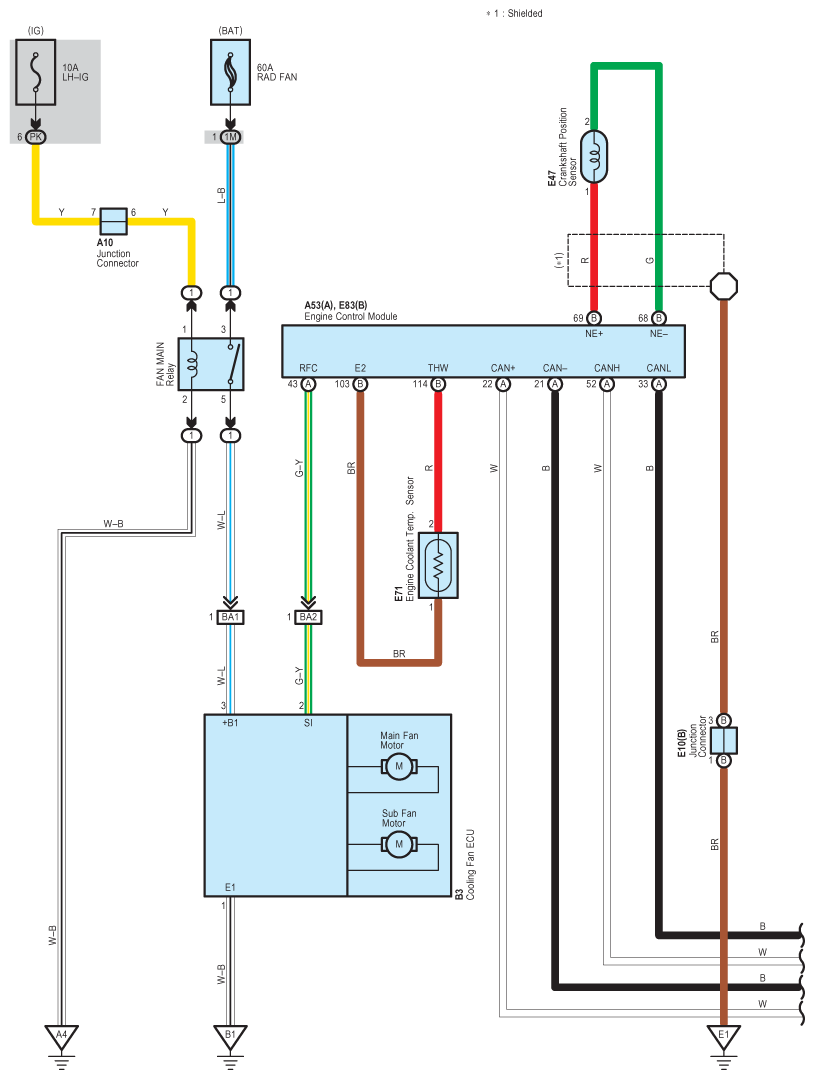

Fig 1: Cooling Fan Wiring Diagram (1 Of 6)
G08919766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

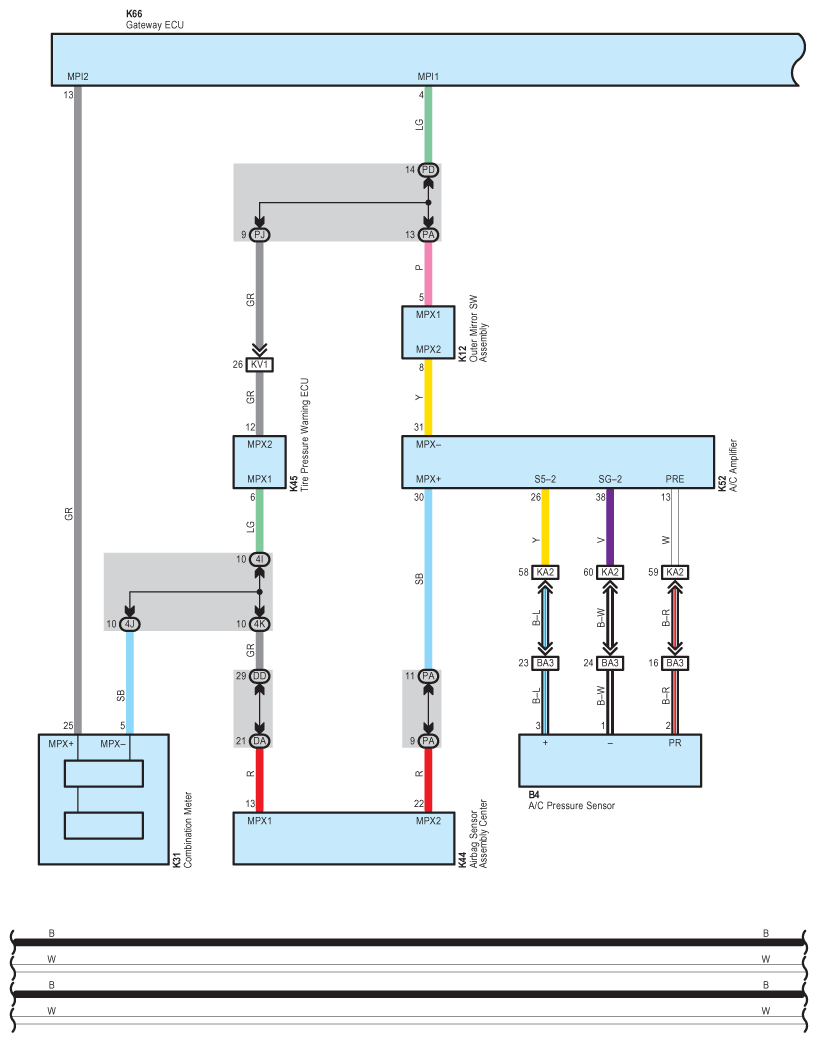

Fig 2: Cooling Fan Wiring Diagram (2 Of 6)
G08919767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

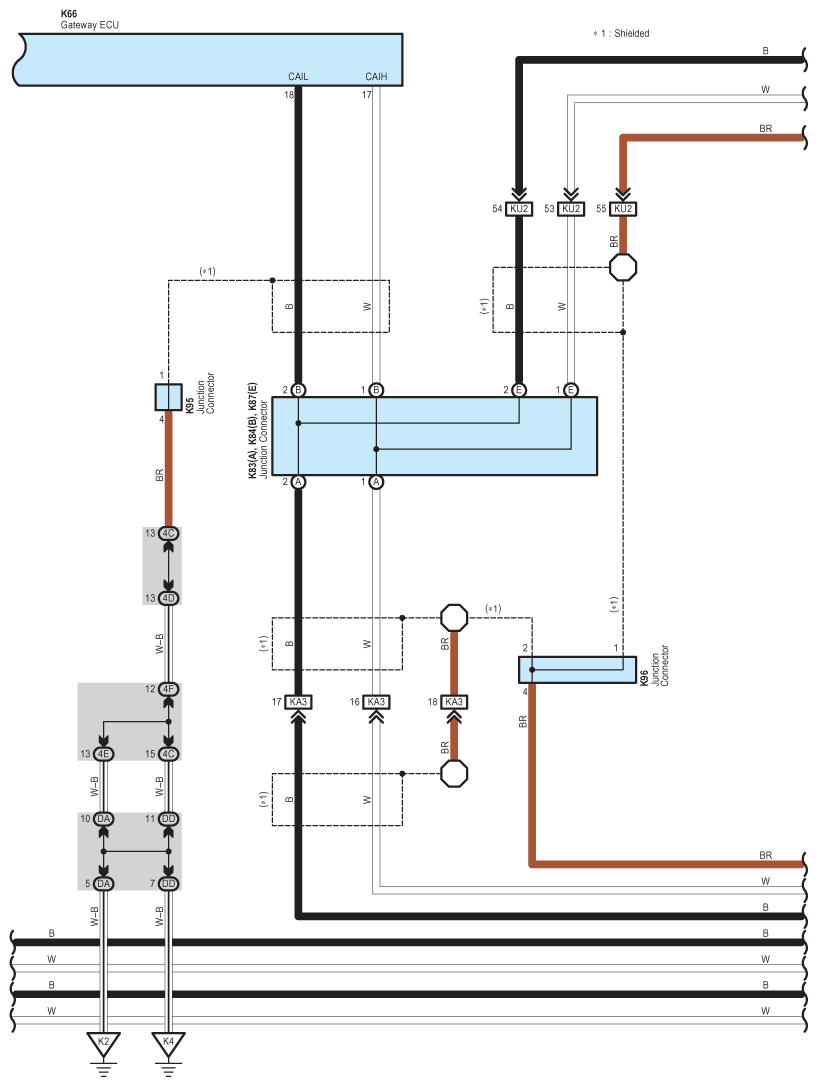

Fig 3: Cooling Fan Wiring Diagram (3 Of 6)
G08919768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

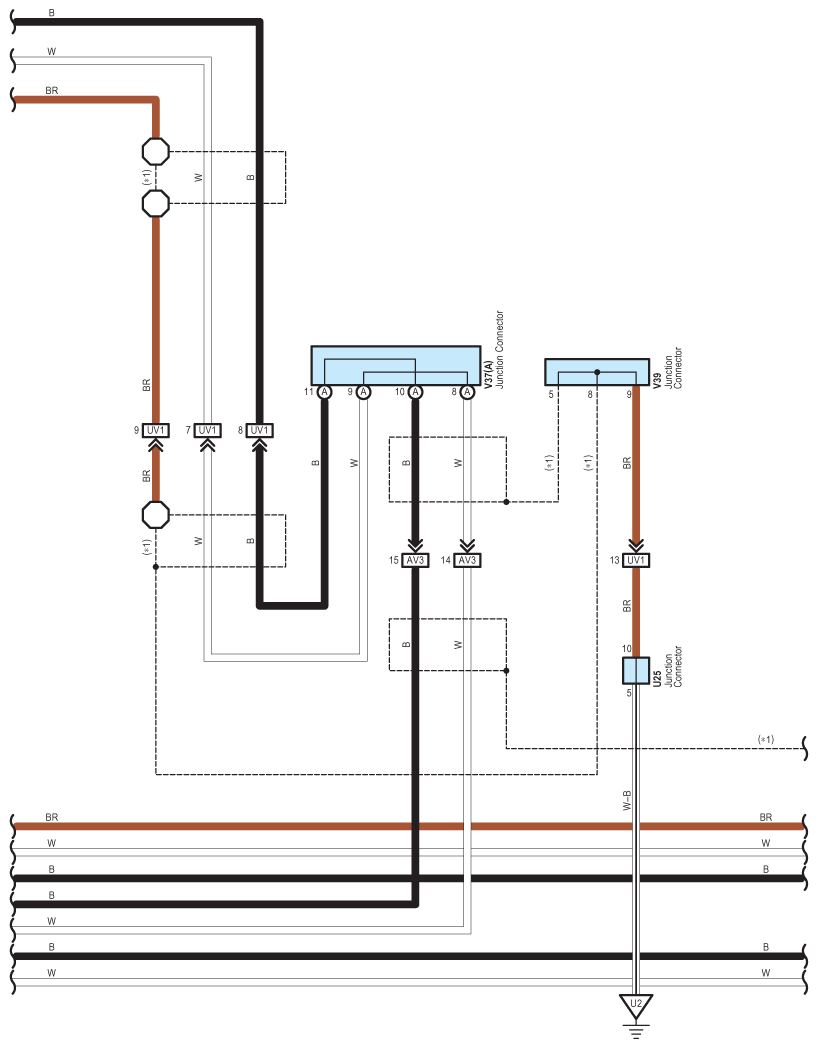

Fig 4: Cooling Fan Wiring Diagram (4 Of 6)
G08919769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

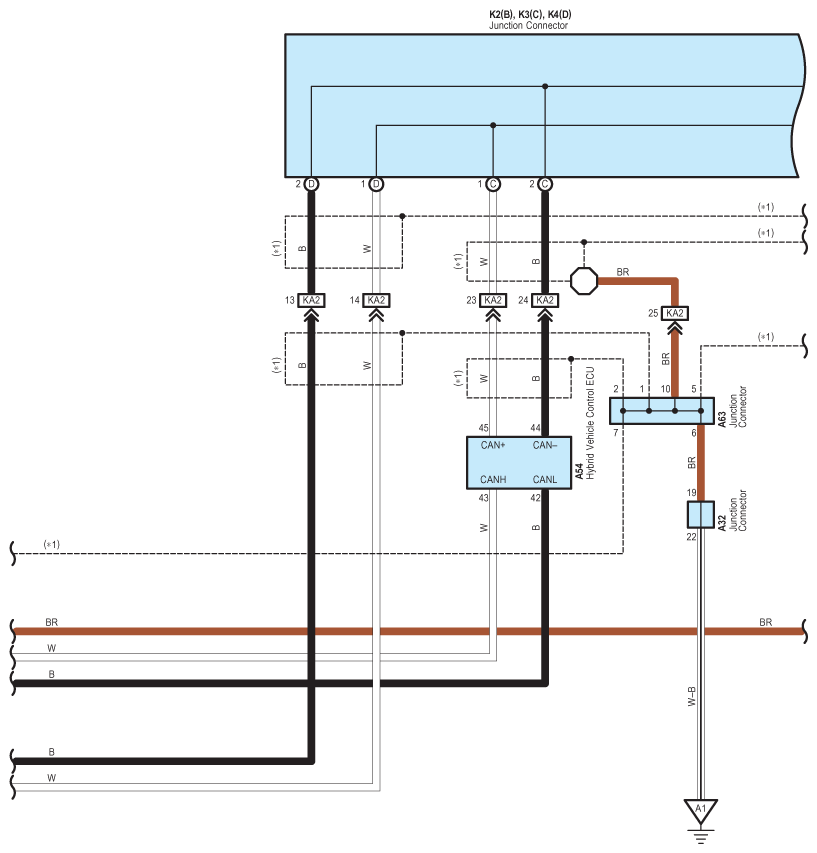

Fig 5: Cooling Fan Wiring Diagram (5 Of 6)
G08919770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

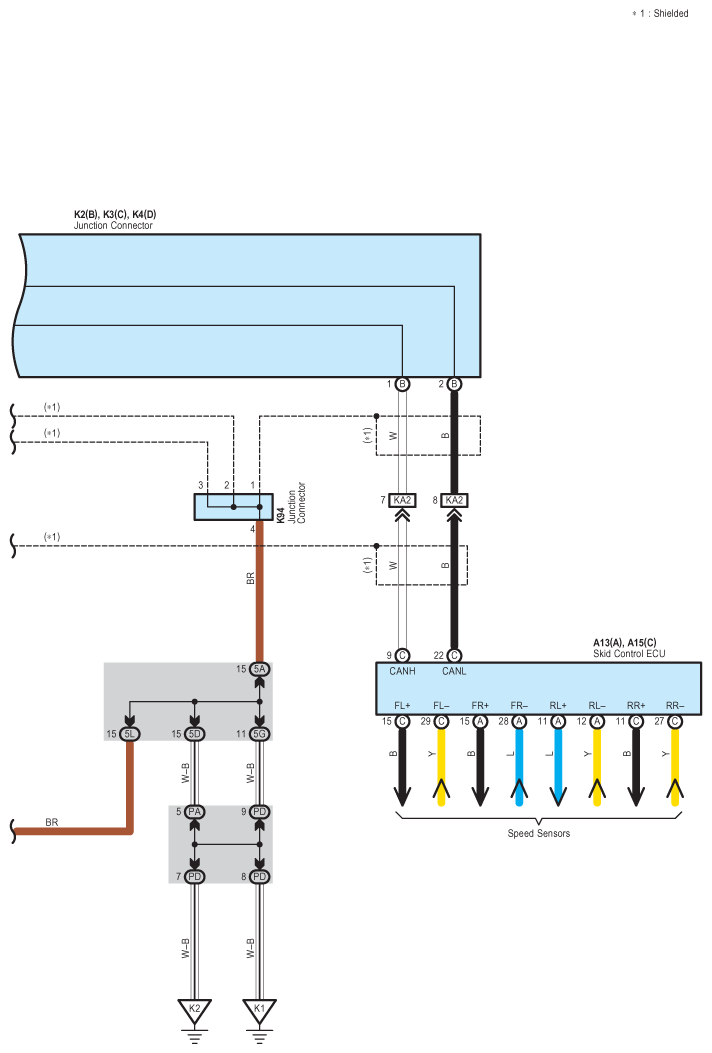

Fig 6: Cooling Fan Wiring Diagram (6 Of 6)
G08919771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
