OEM System Circuits: Headlight: Notes

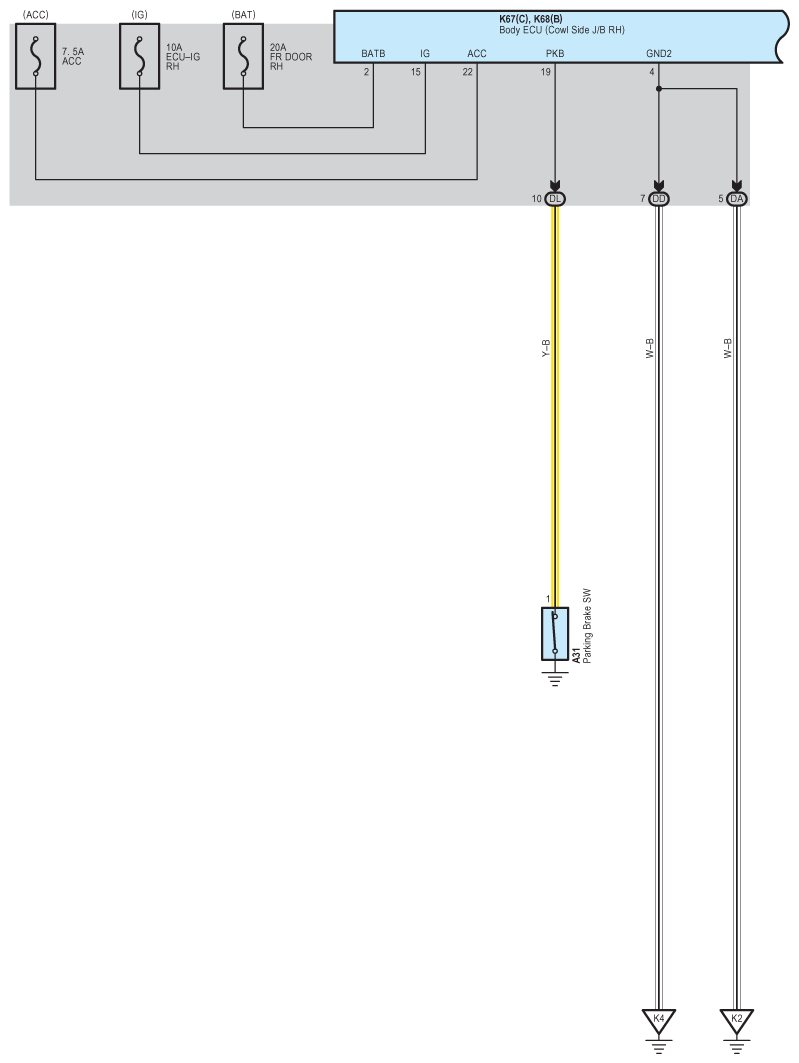

Fig 1: Headlight Wiring Diagram (1 Of 6)

G08919438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

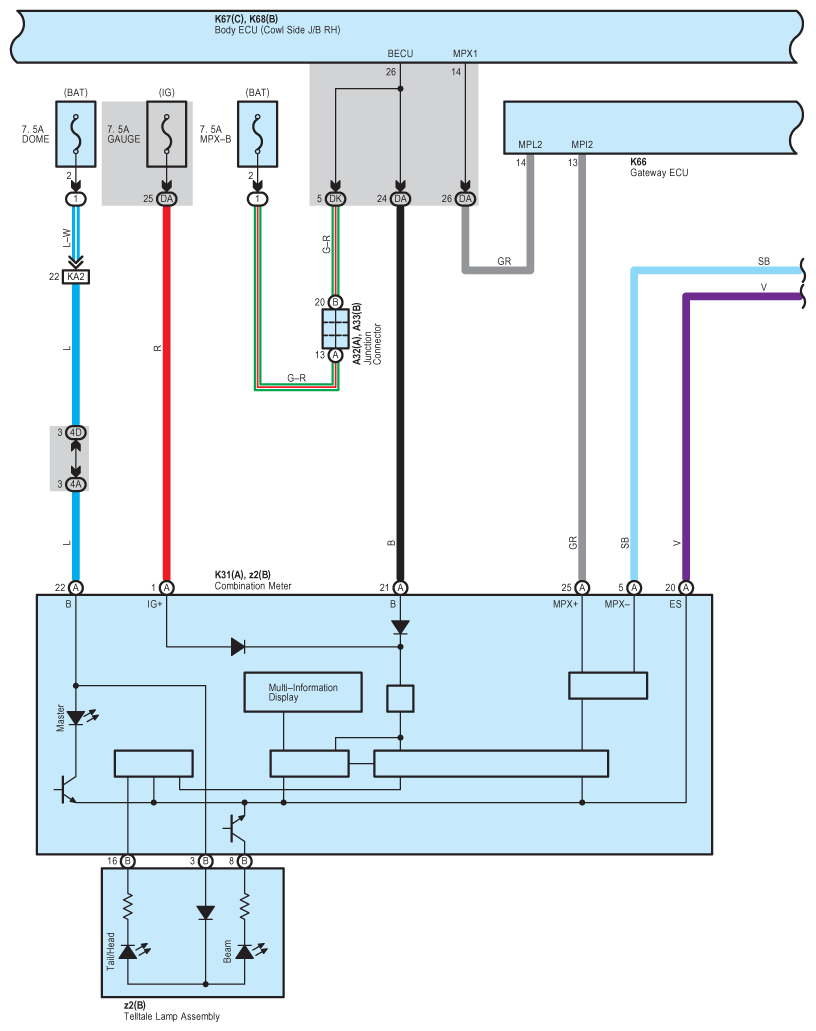

Fig 2: Headlight Wiring Diagram (2 Of 6)

G08919439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

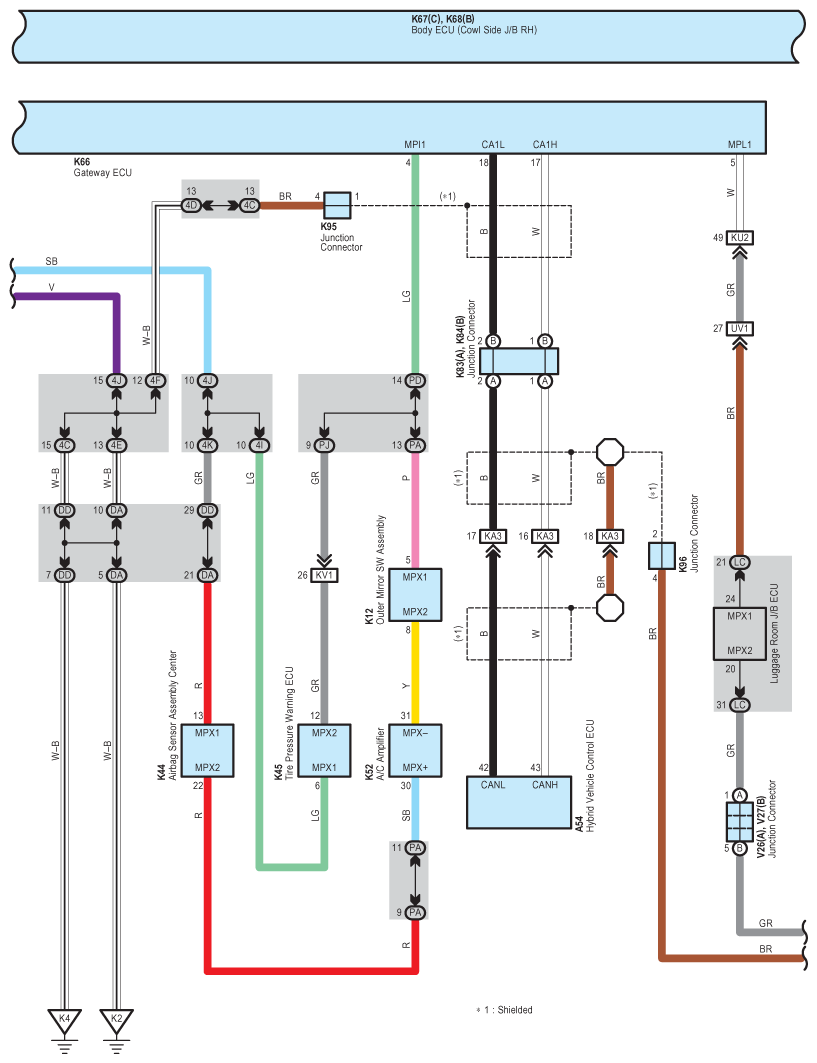

Fig 3: Headlight Wiring Diagram (3 Of 6)

G08919440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

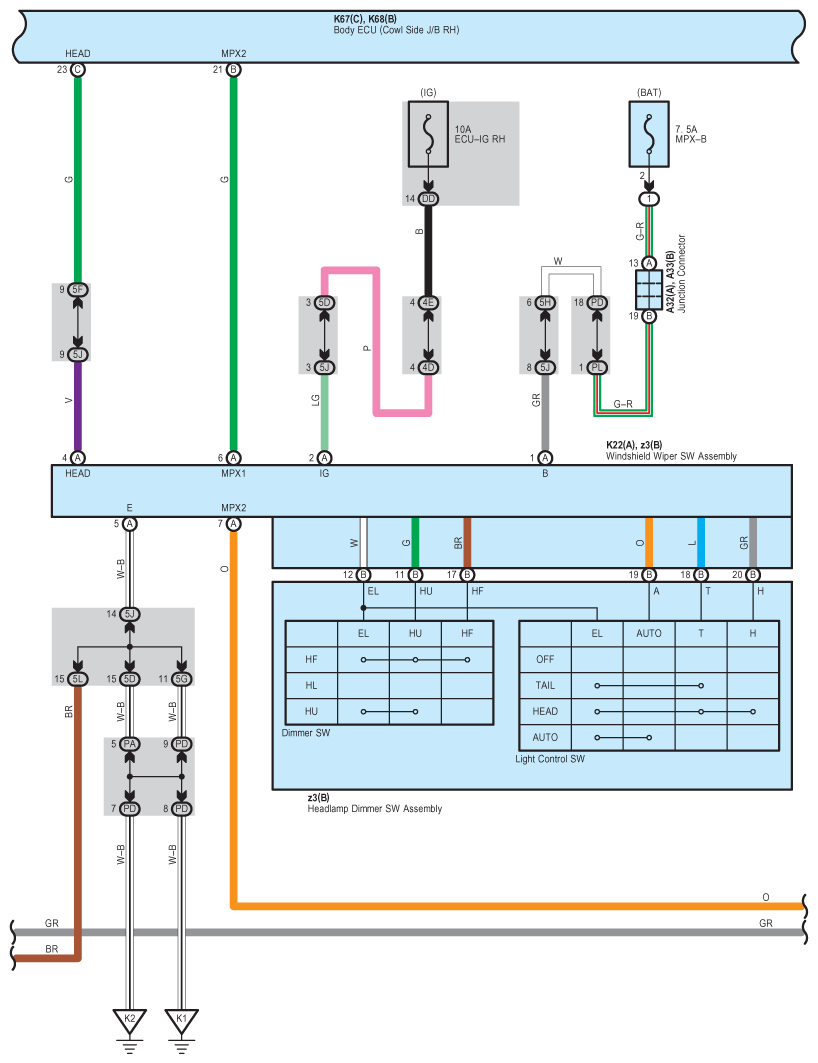

Fig 4: Headlight Wiring Diagram (4 Of 6)

G08919441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

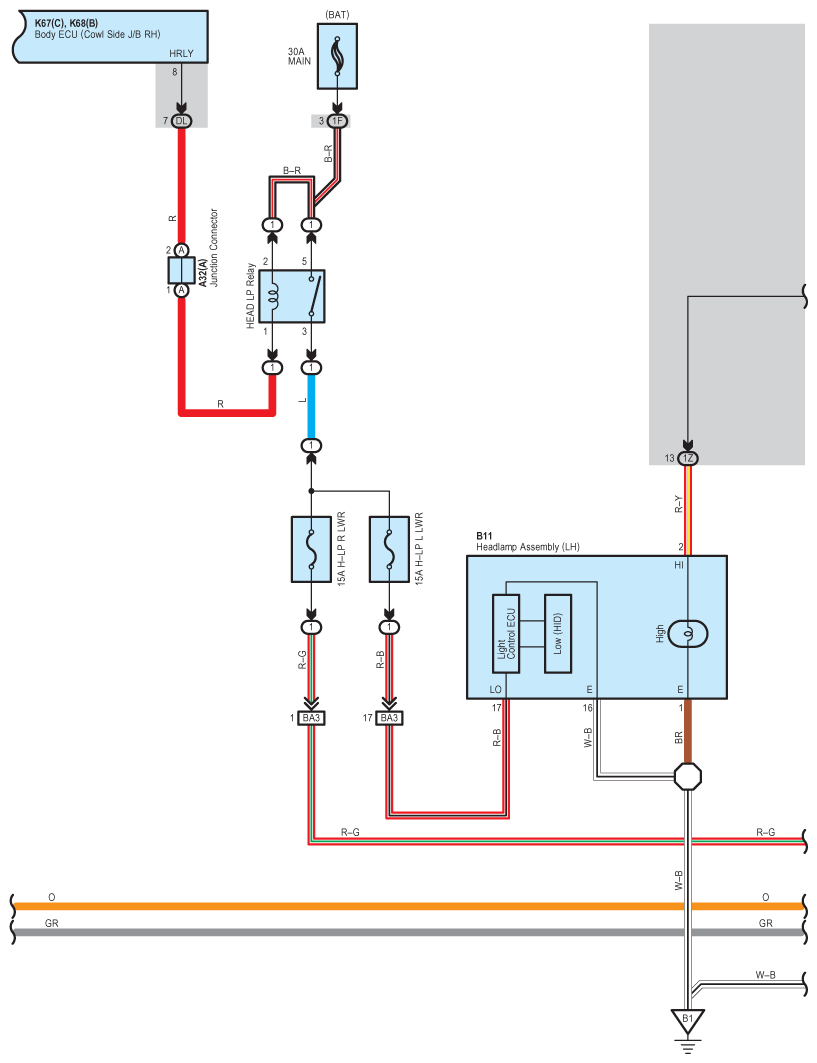

Fig 5: Headlight Wiring Diagram (5 Of 6)

G08919442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

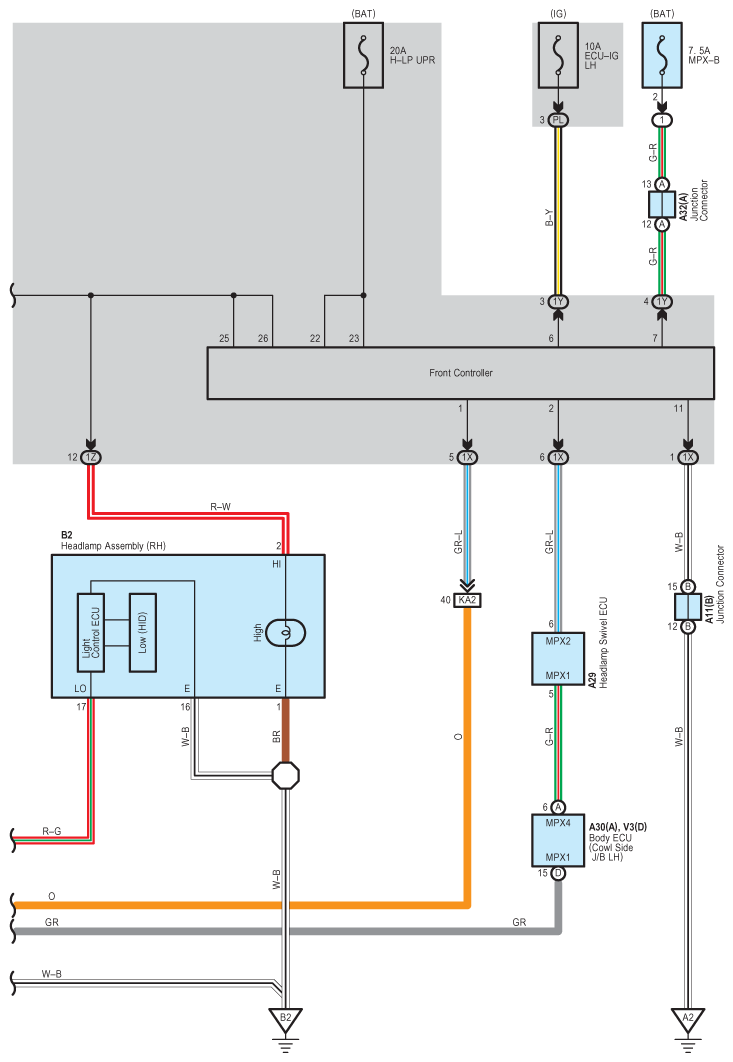

Fig 6: Headlight Wiring Diagram (6 Of 6)

G08919443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
