LEXUS Link System (Mayday System): Notes

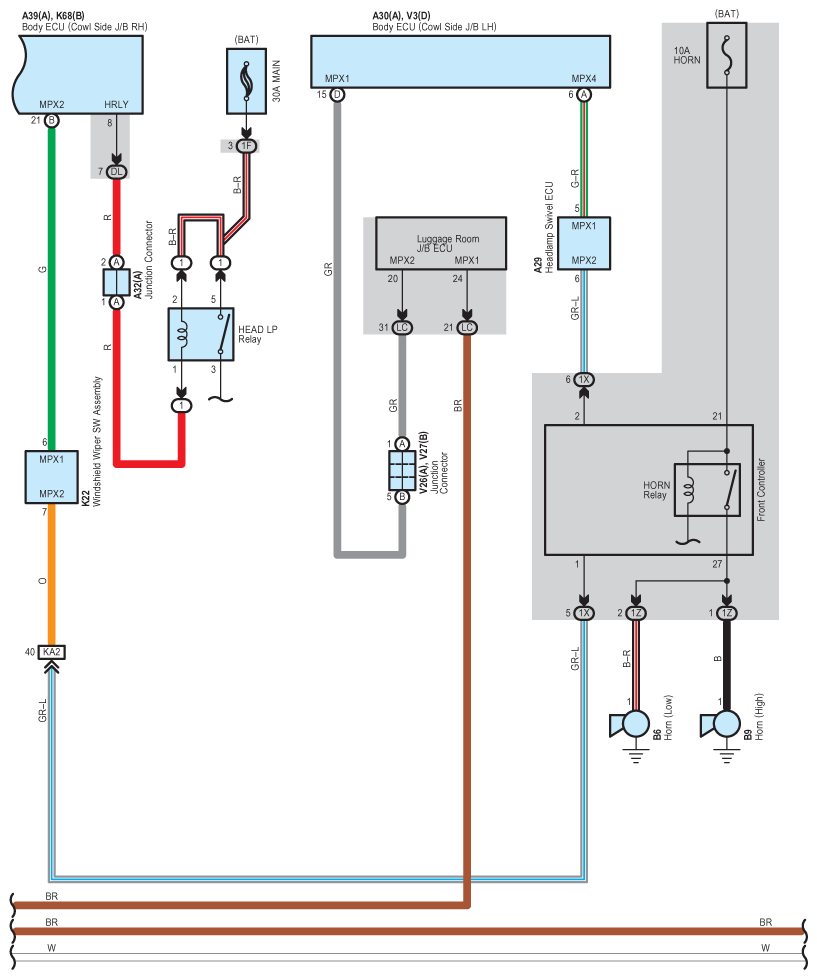

Fig 1: LEXUS Link System (Mayday System) Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

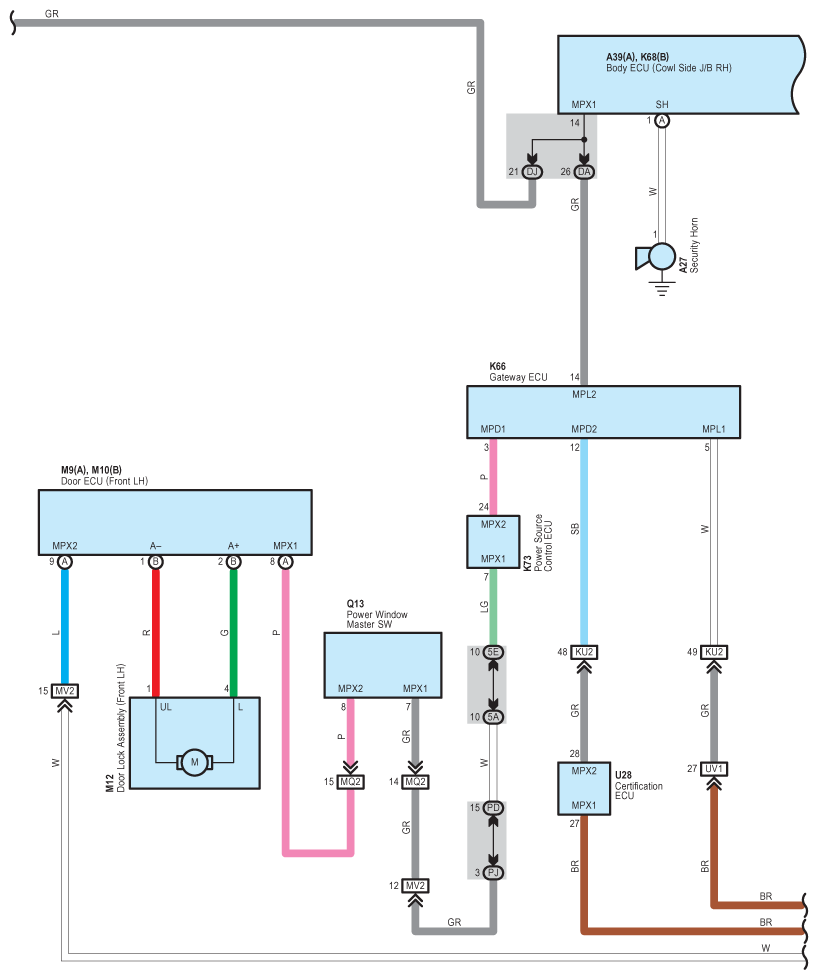

Fig 2: LEXUS Link System (Mayday System) Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

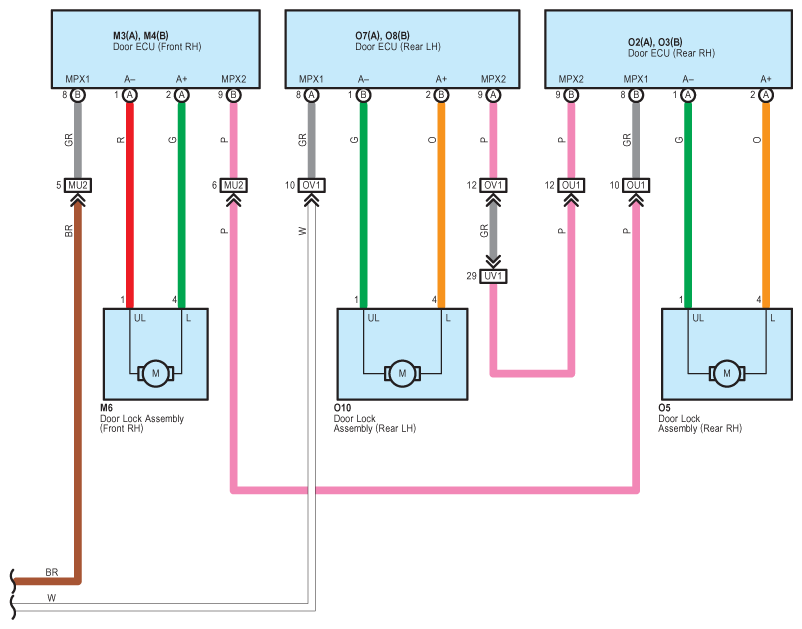

Fig 3: LEXUS Link System (Mayday System) Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

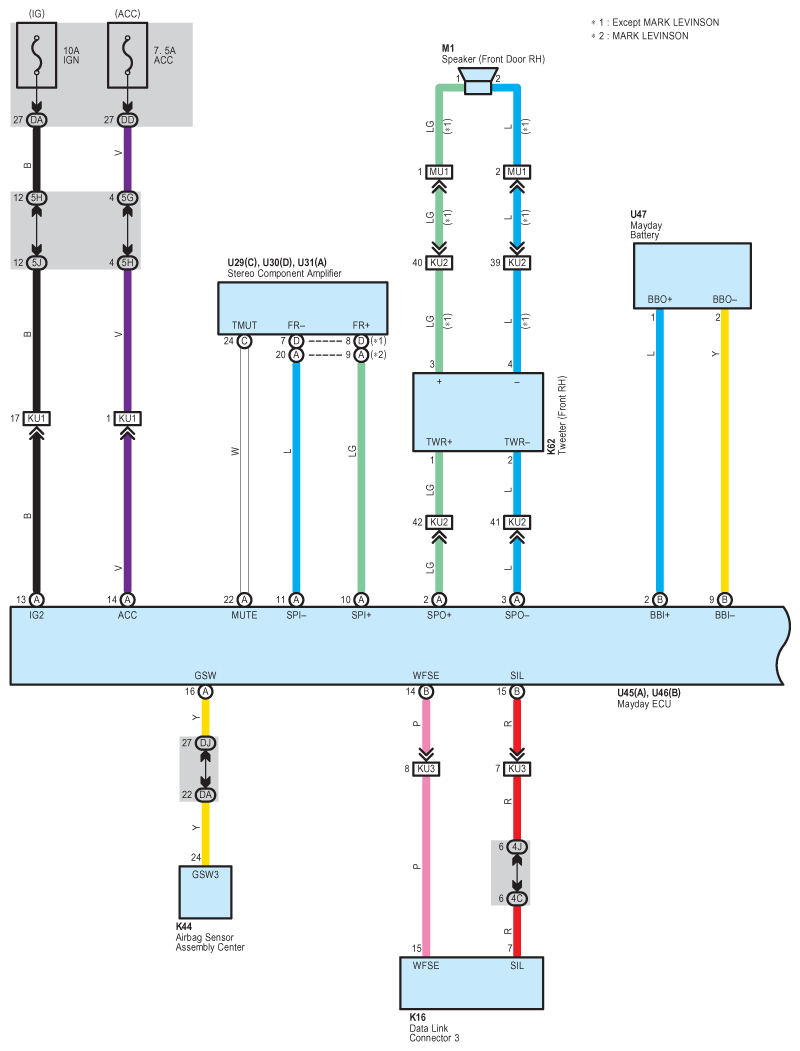

Fig 4: LEXUS Link System (Mayday System) Wiring Diagram (4 Of 6)

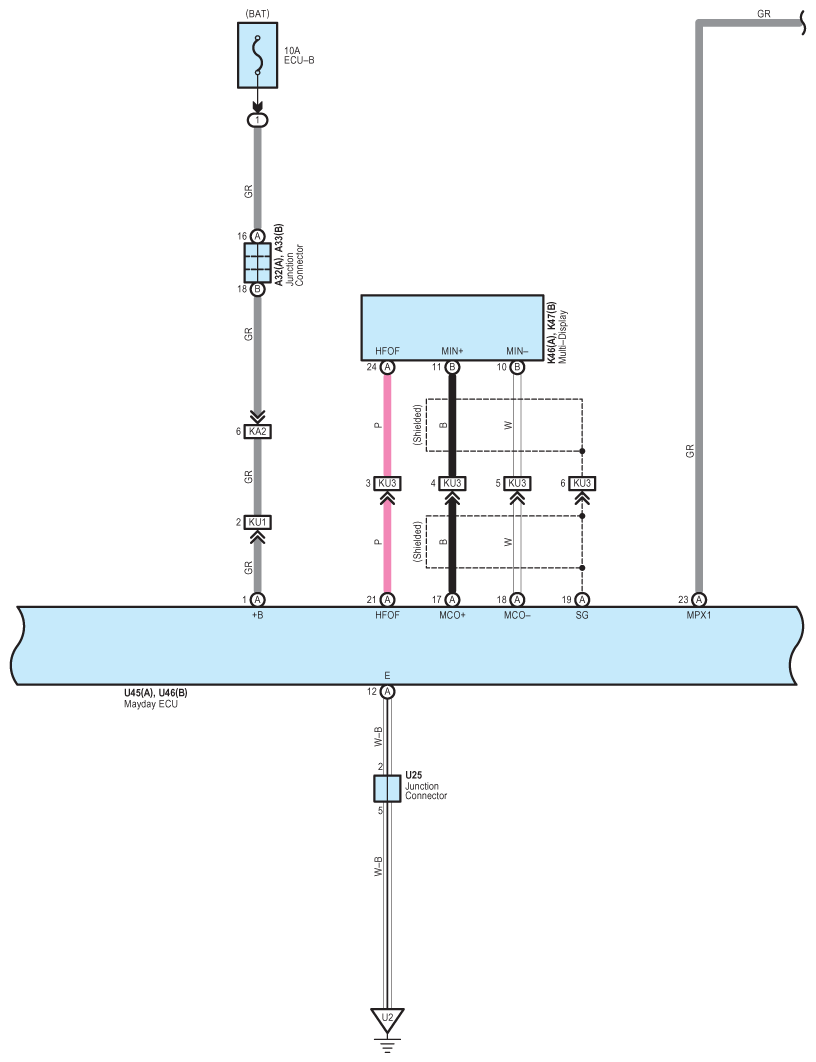

Fig 5: LEXUS Link System (Mayday System) Wiring Diagram (5 Of 6)

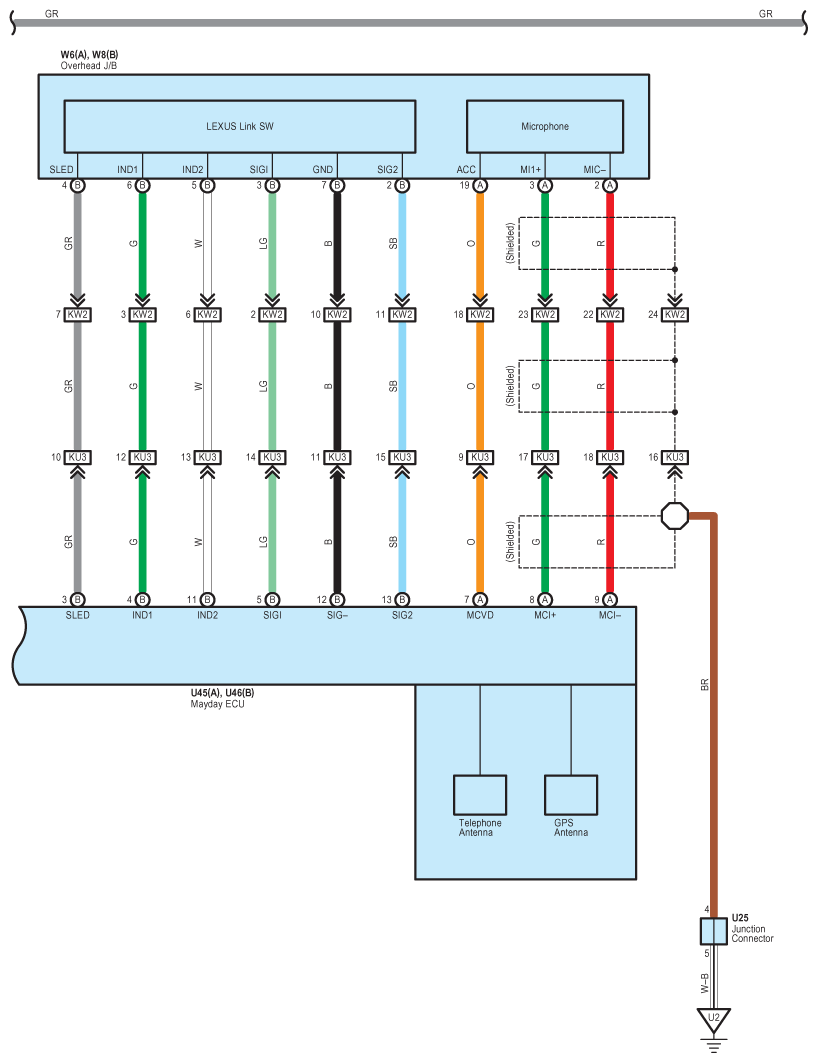

Fig 6: LEXUS Link System (Mayday System) Wiring Diagram (6 Of 6)
