Lexus
›
2007
›
GS 450h
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System - AVC-LAN
›
Notes
Multiplex Communication System - AVC-LAN: Notes

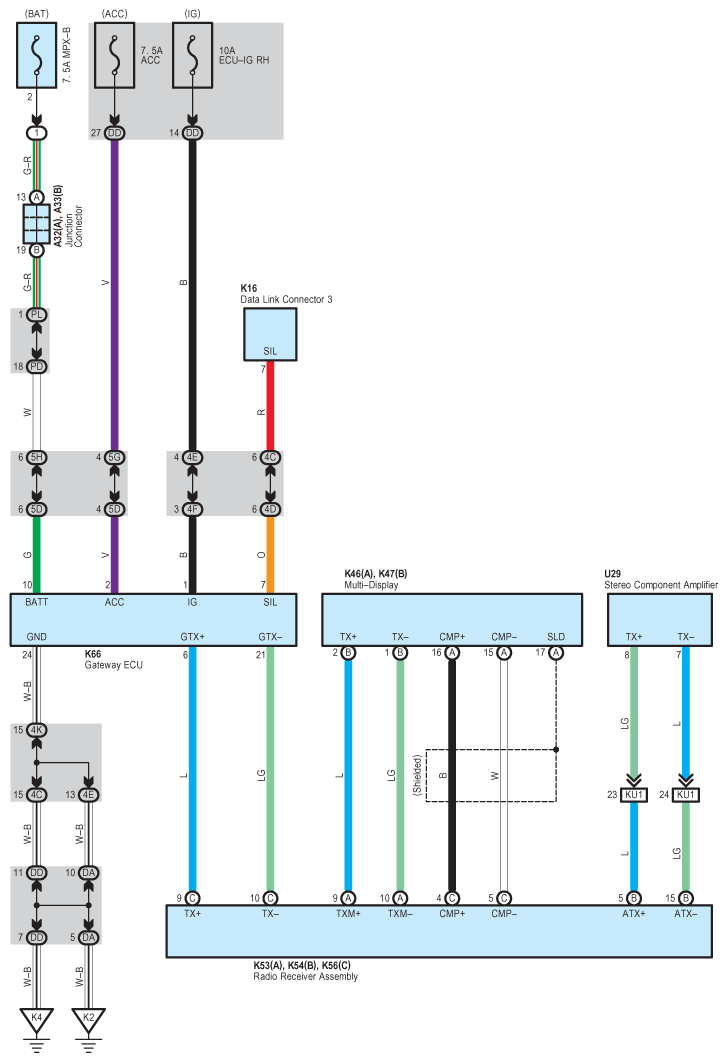

Fig 1: Multiplex Communication System - AVC-LAN Wiring Diagram
