Remote Control Mirror: Notes

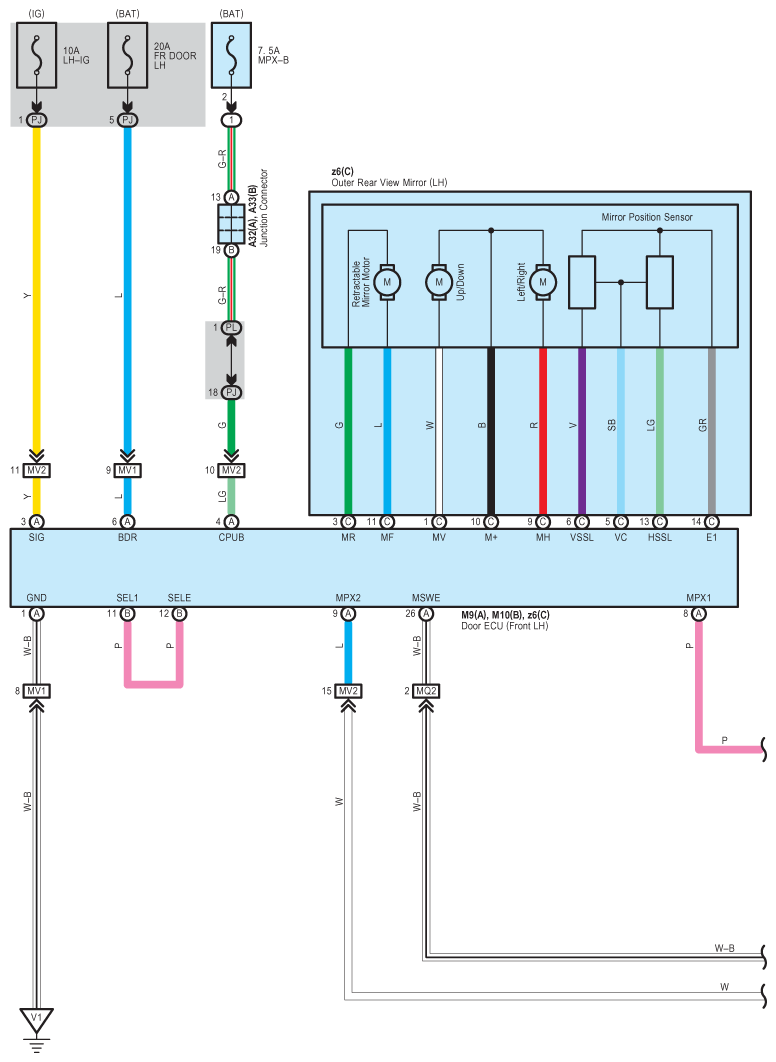

Fig 1: Remote Control Mirror Wiring Diagram (1 Of 5)
G08919706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

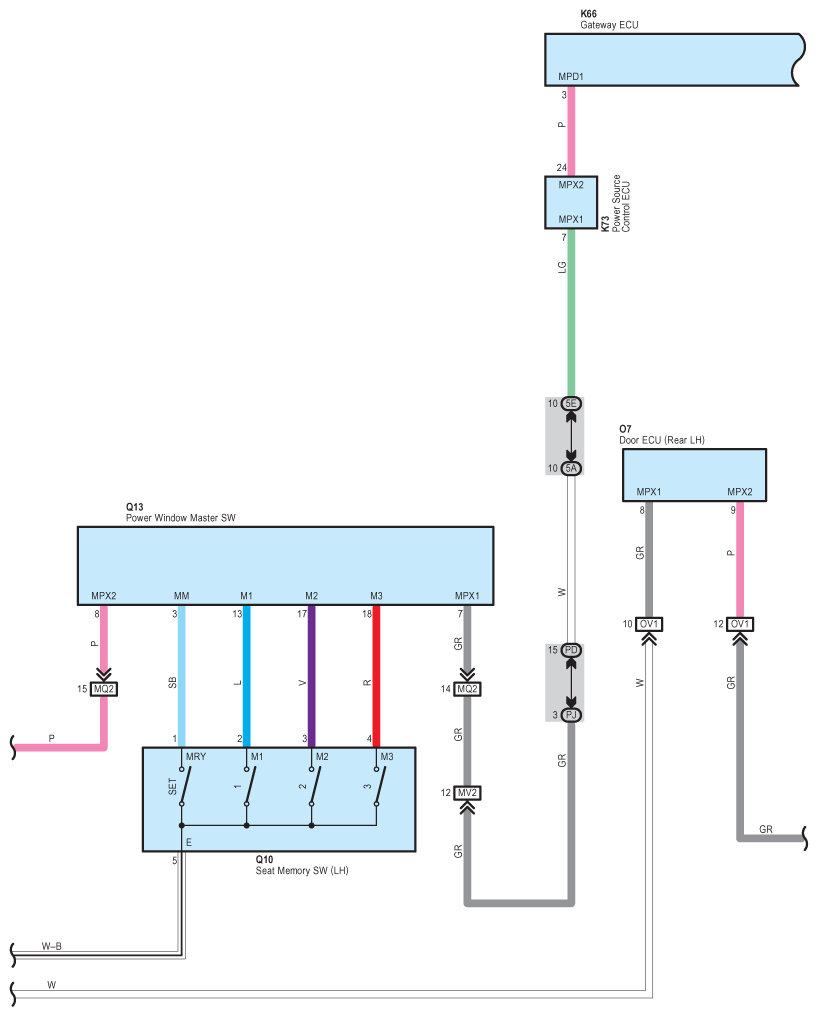

Fig 2: Remote Control Mirror Wiring Diagram (2 Of 5)
G08919707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

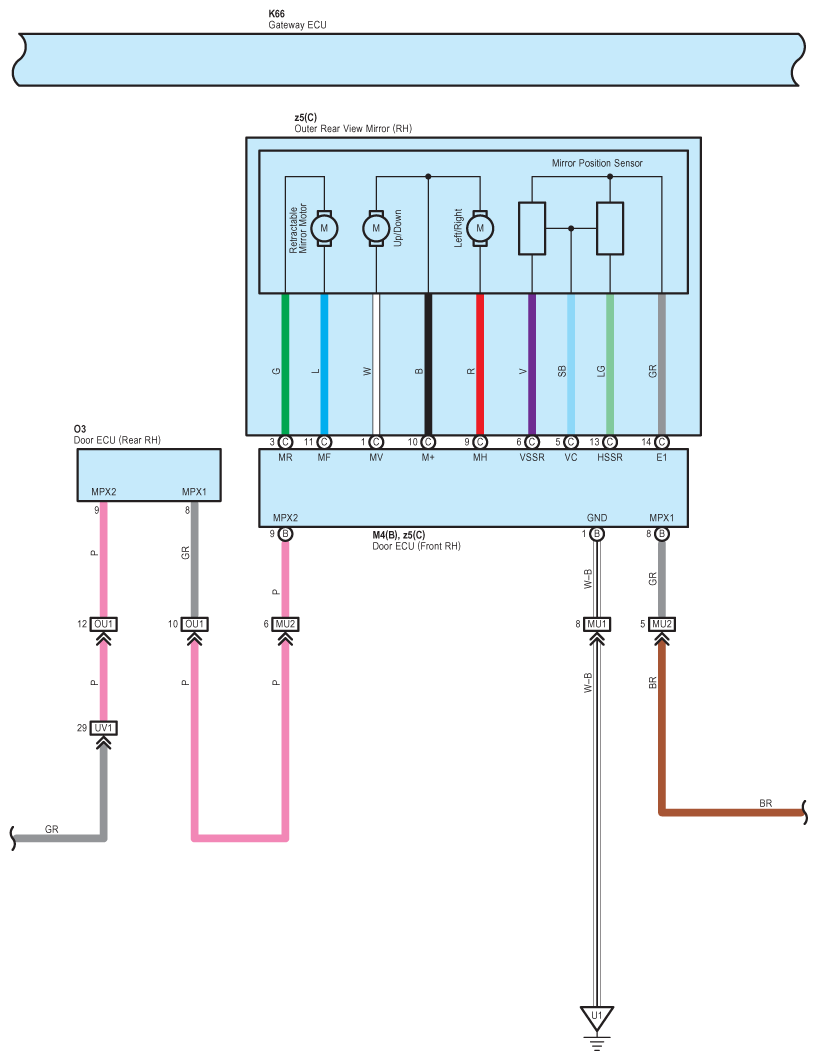

Fig 3: Remote Control Mirror Wiring Diagram (3 Of 5)
G08919708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

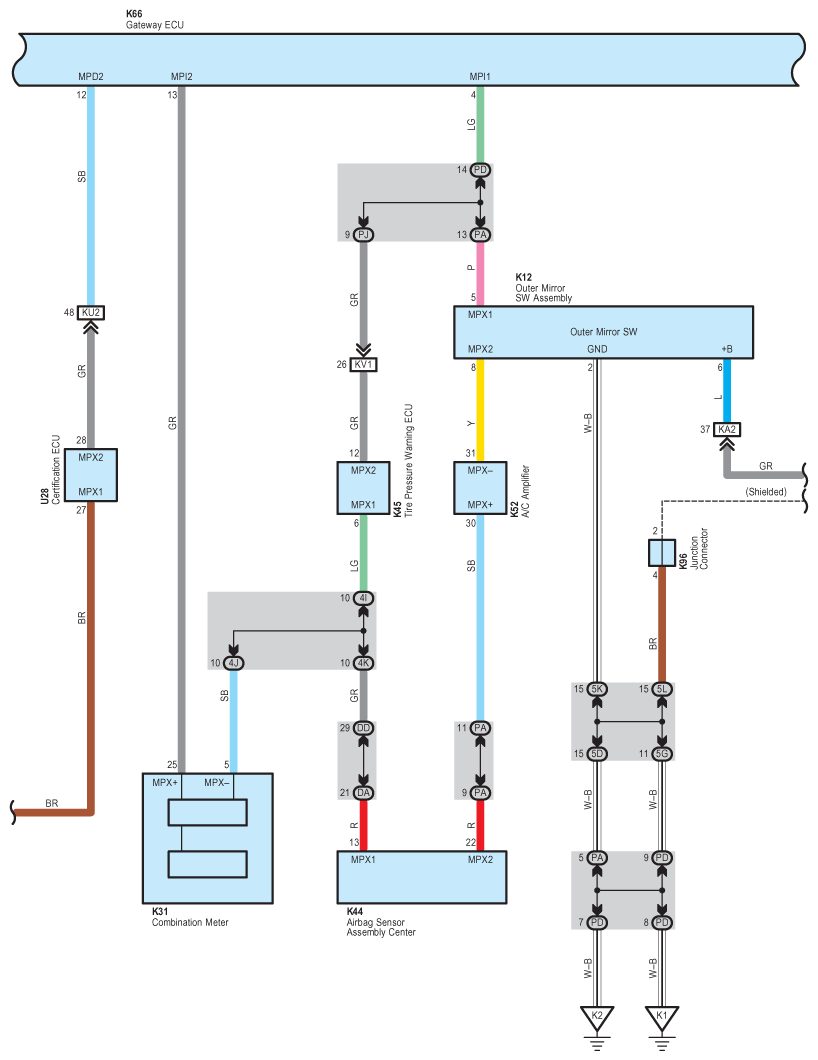

Fig 4: Remote Control Mirror Wiring Diagram (4 Of 5)
G08919709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

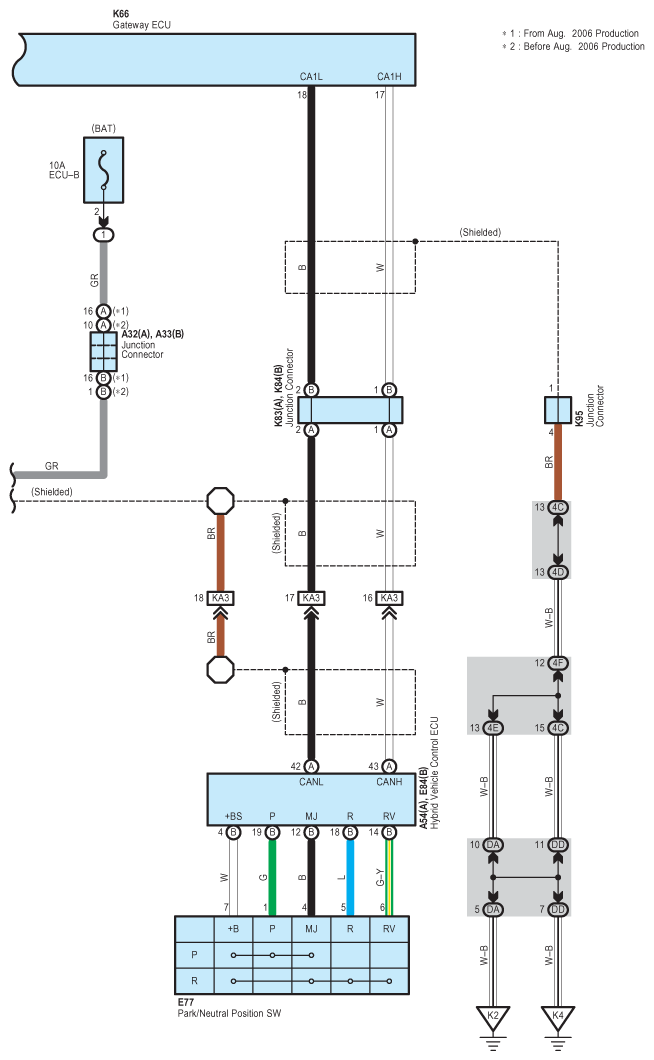

Fig 5: Remote Control Mirror Wiring Diagram (5 Of 5)
G08919710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
