Vehicle Dynamics Integrated Management for Hybrid Vehicle: Notes

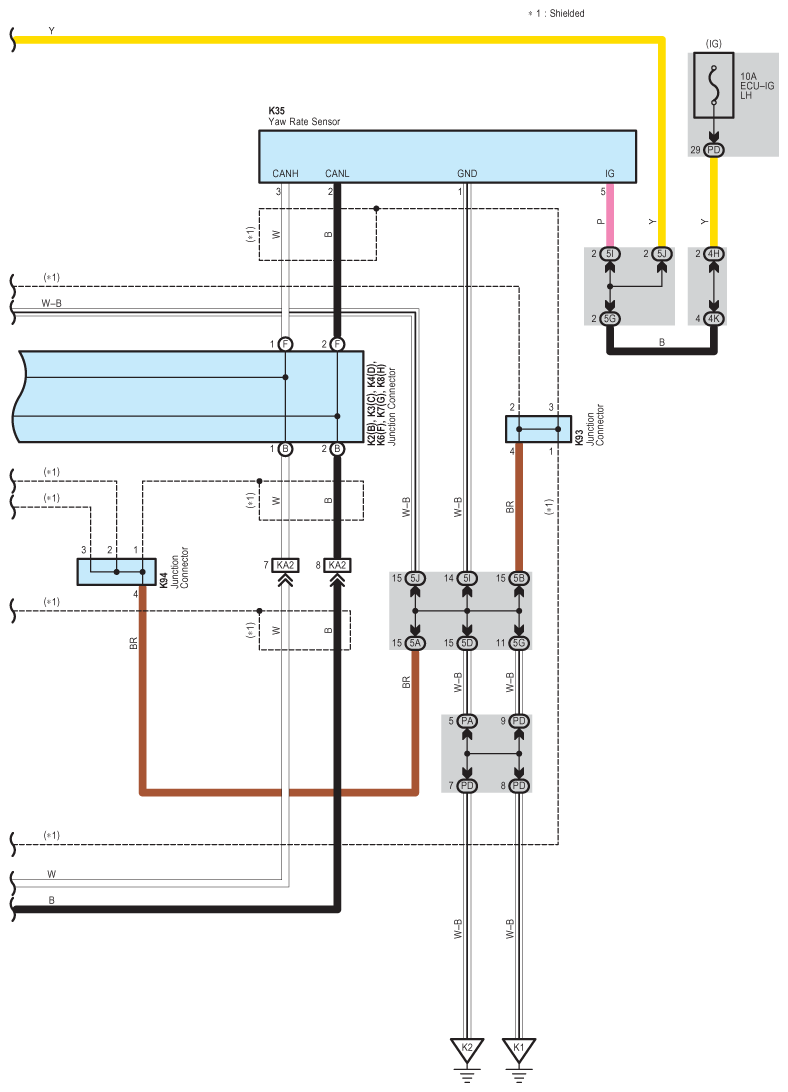

Fig 1: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

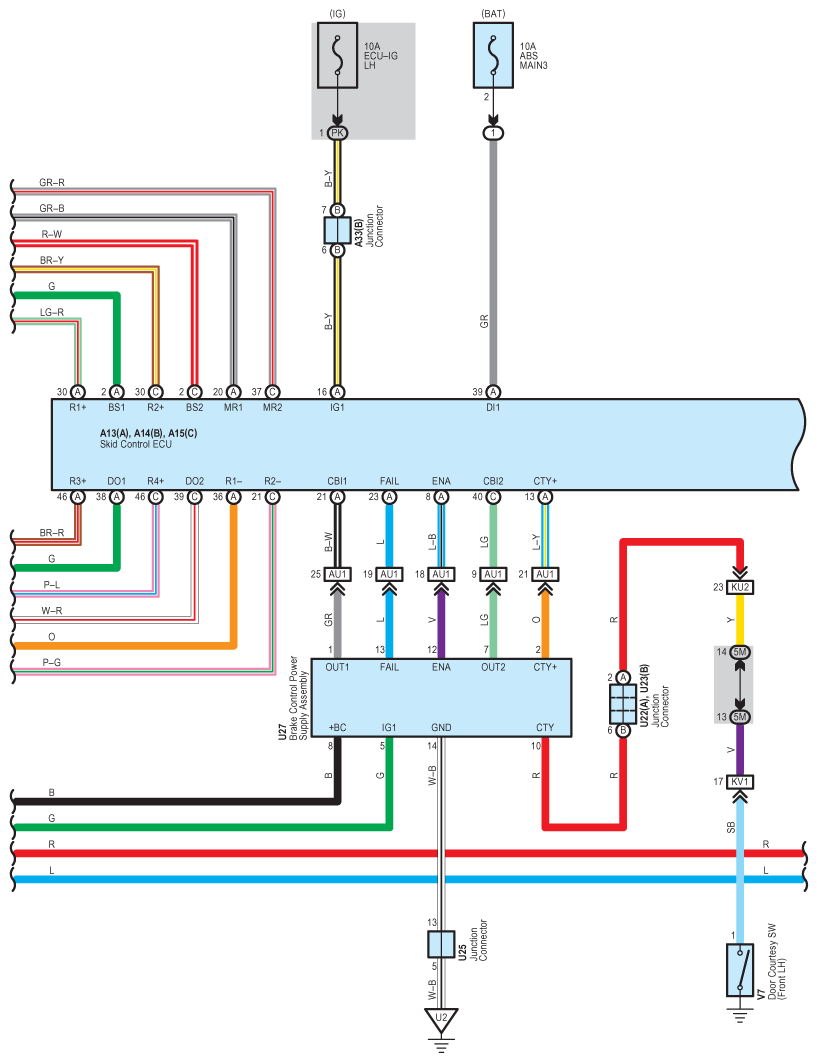

Fig 2: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

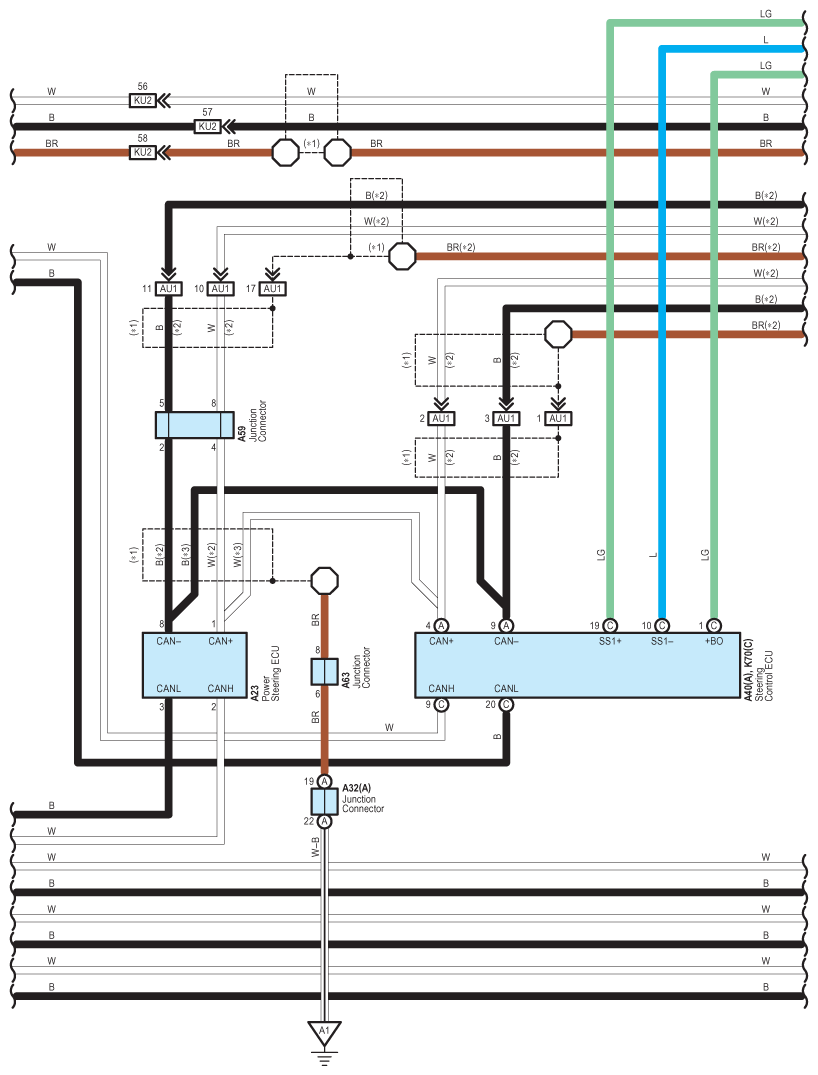

Fig 3: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

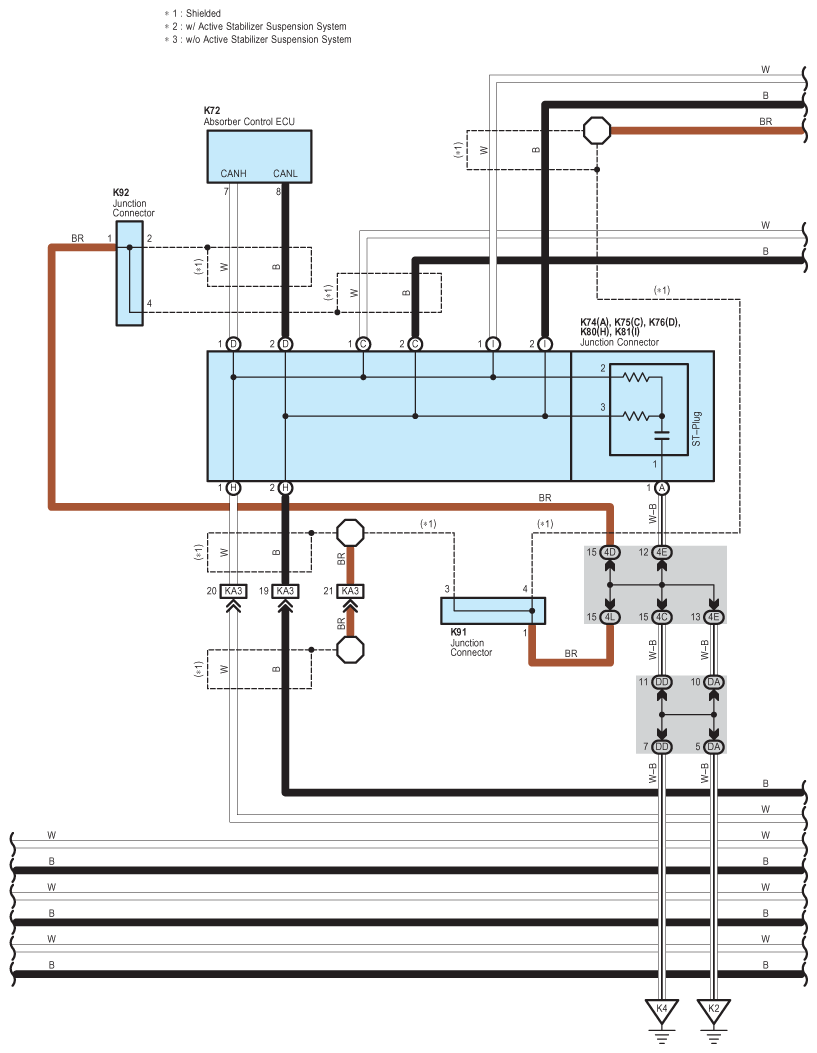

Fig 4: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

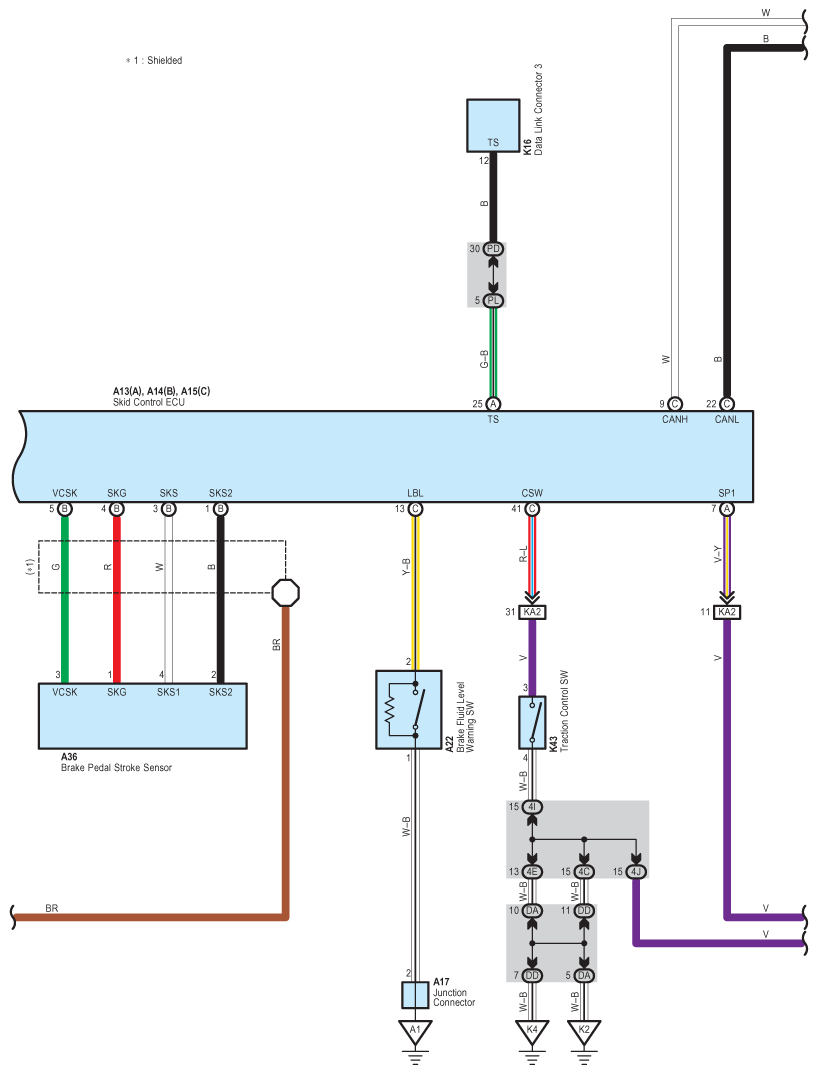

Fig 5: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

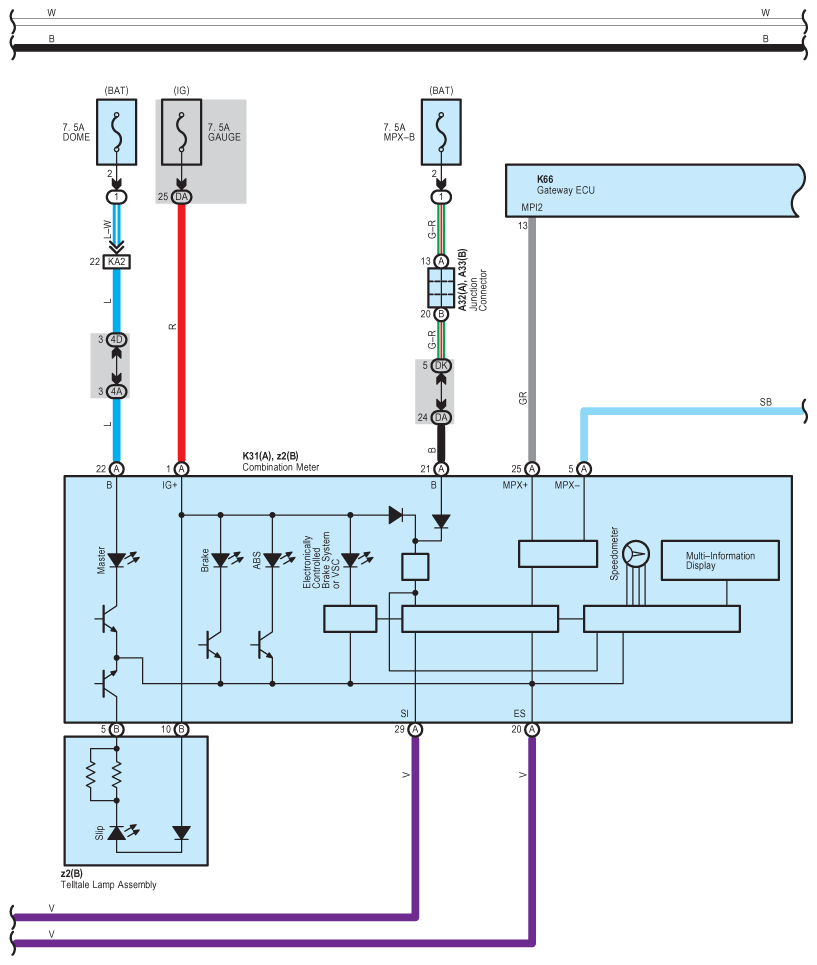

Fig 6: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

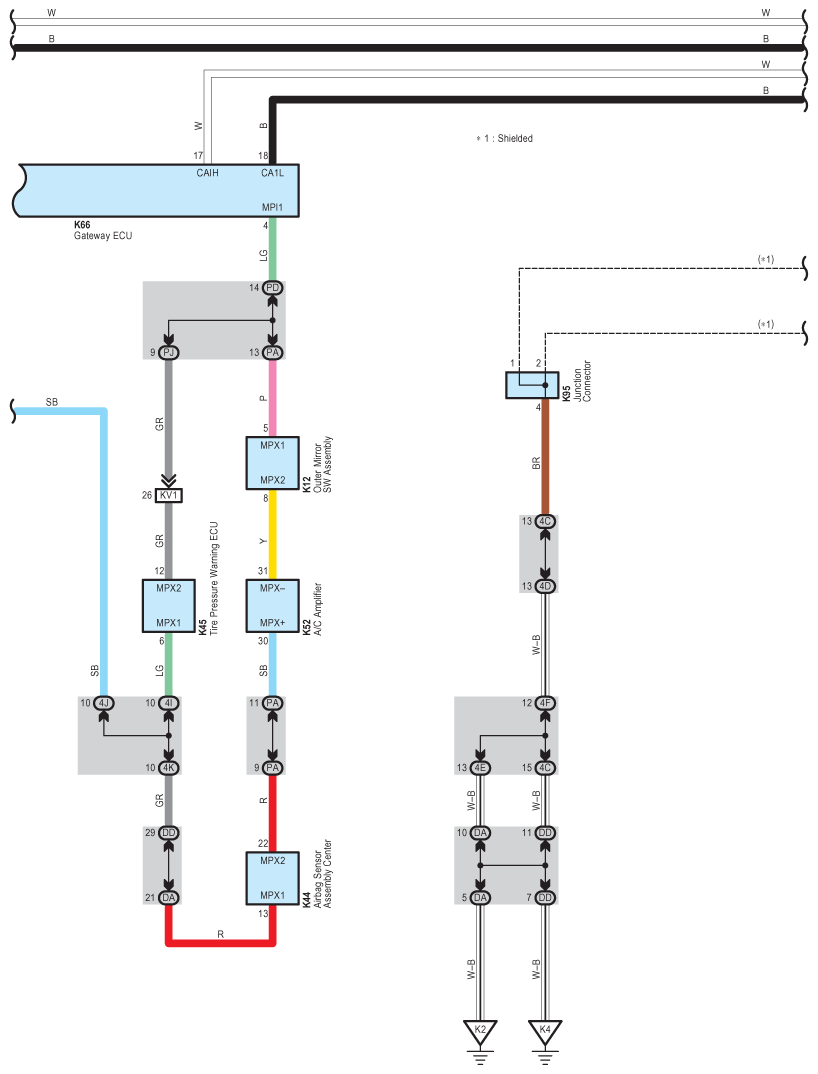

Fig 7: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

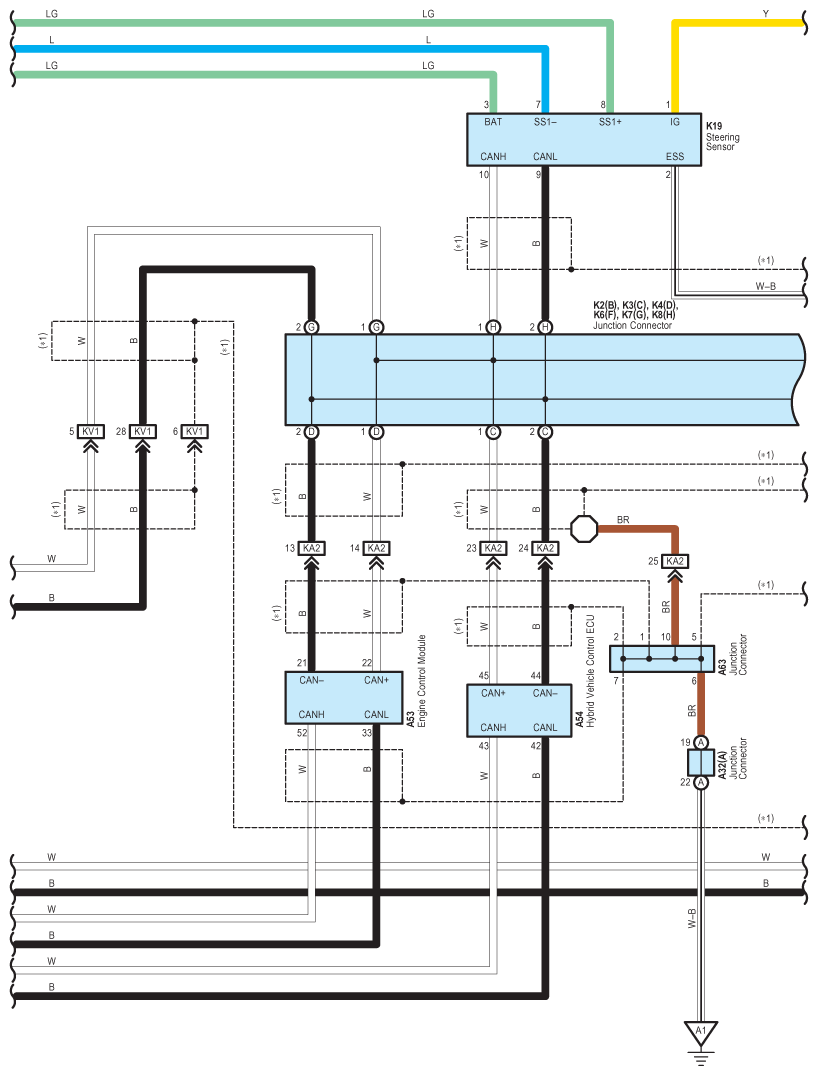

Fig 8: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

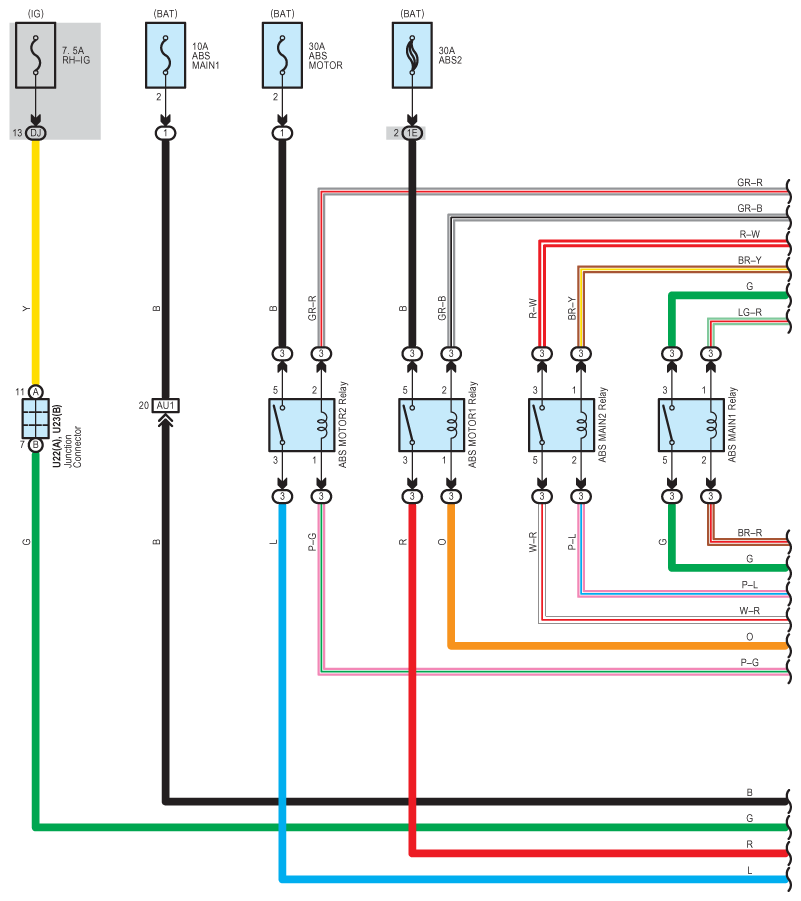

Fig 9: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

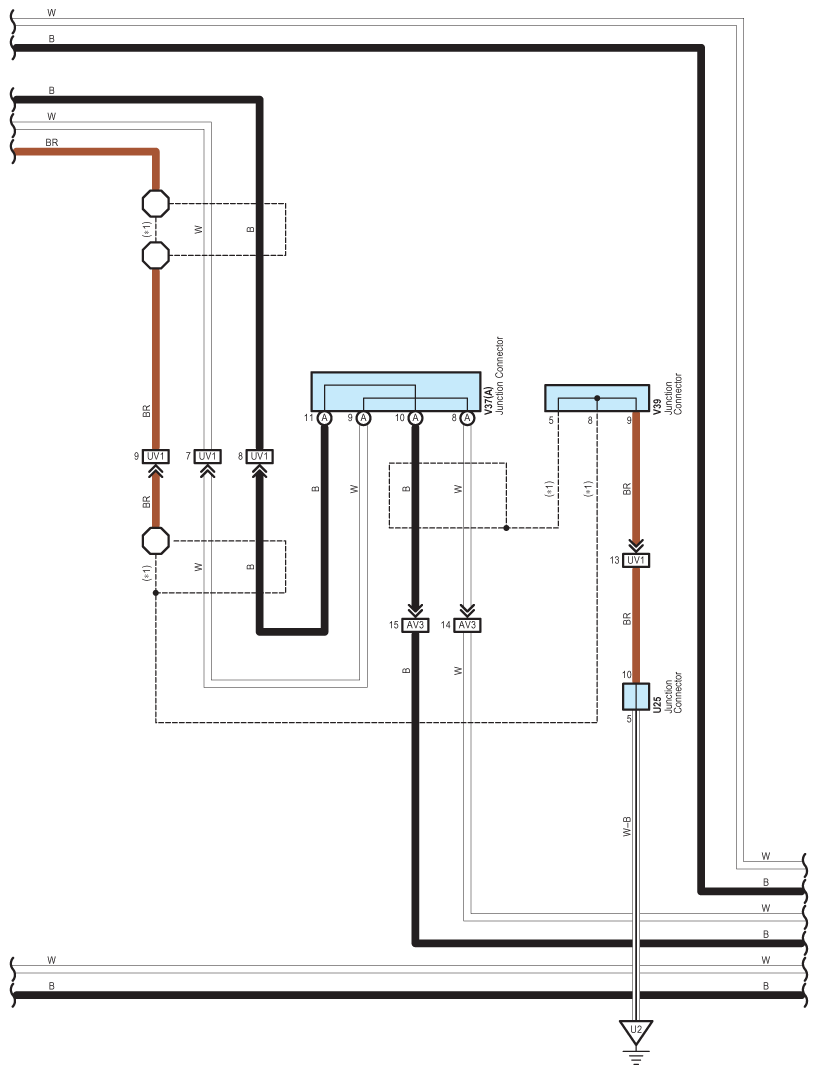

Fig 10: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

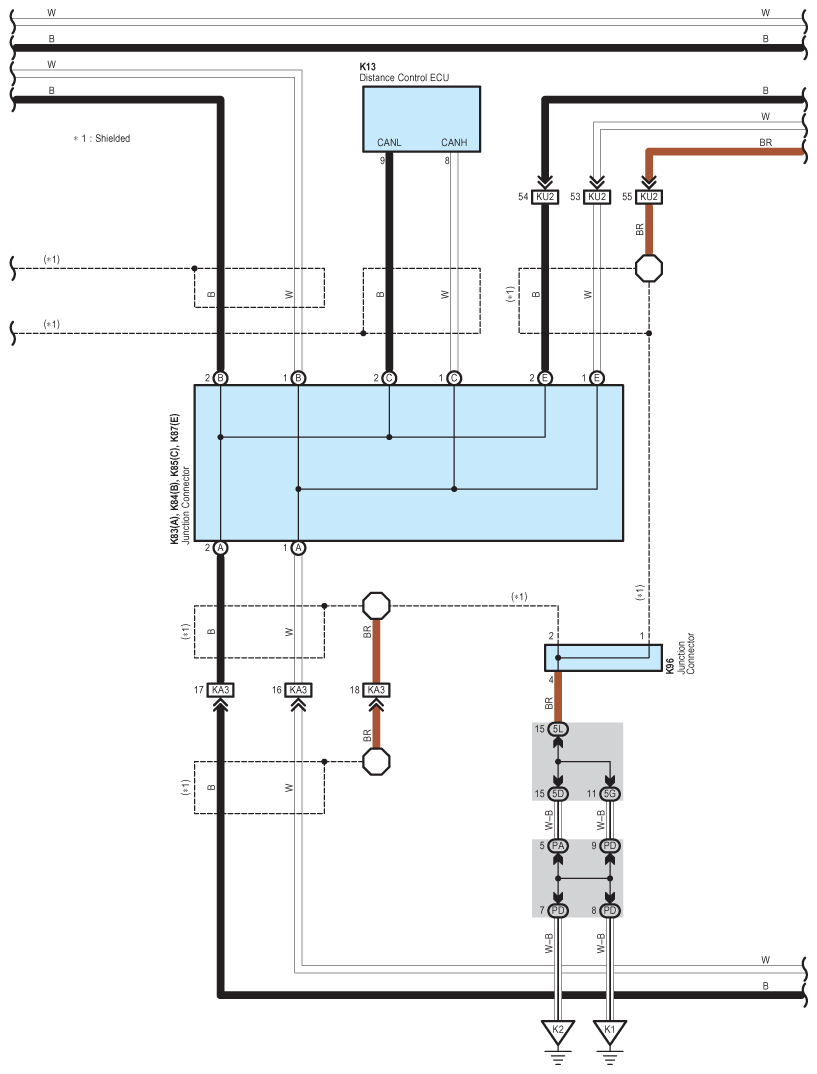

Fig 11: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (11 Of 15)

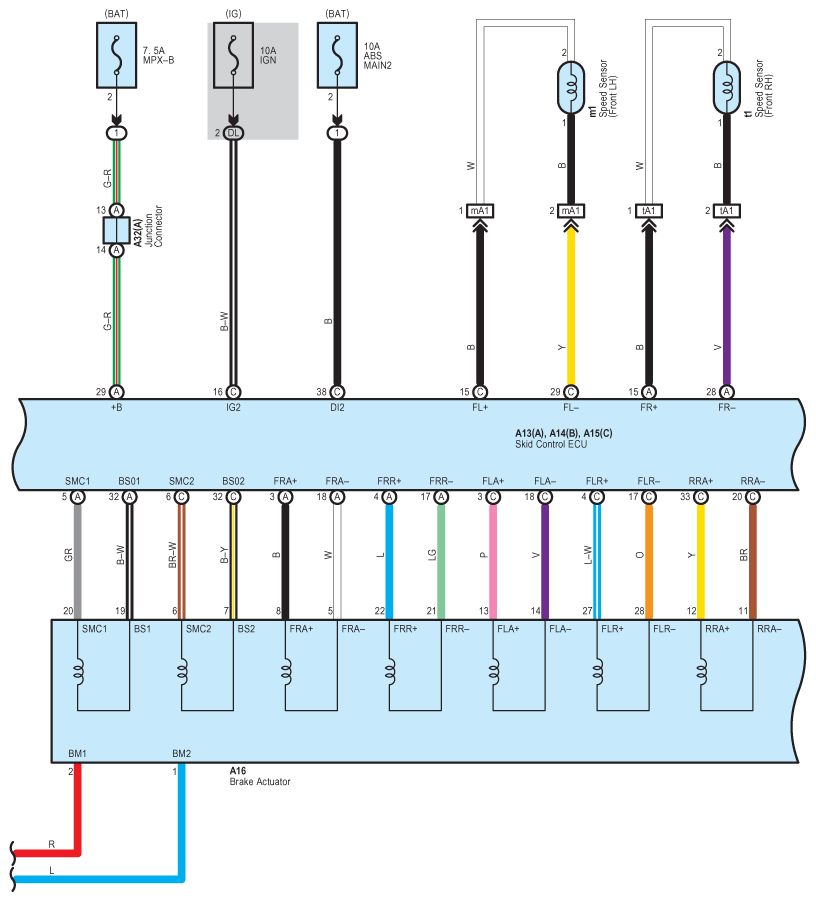

Fig 12: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (12 Of 15)

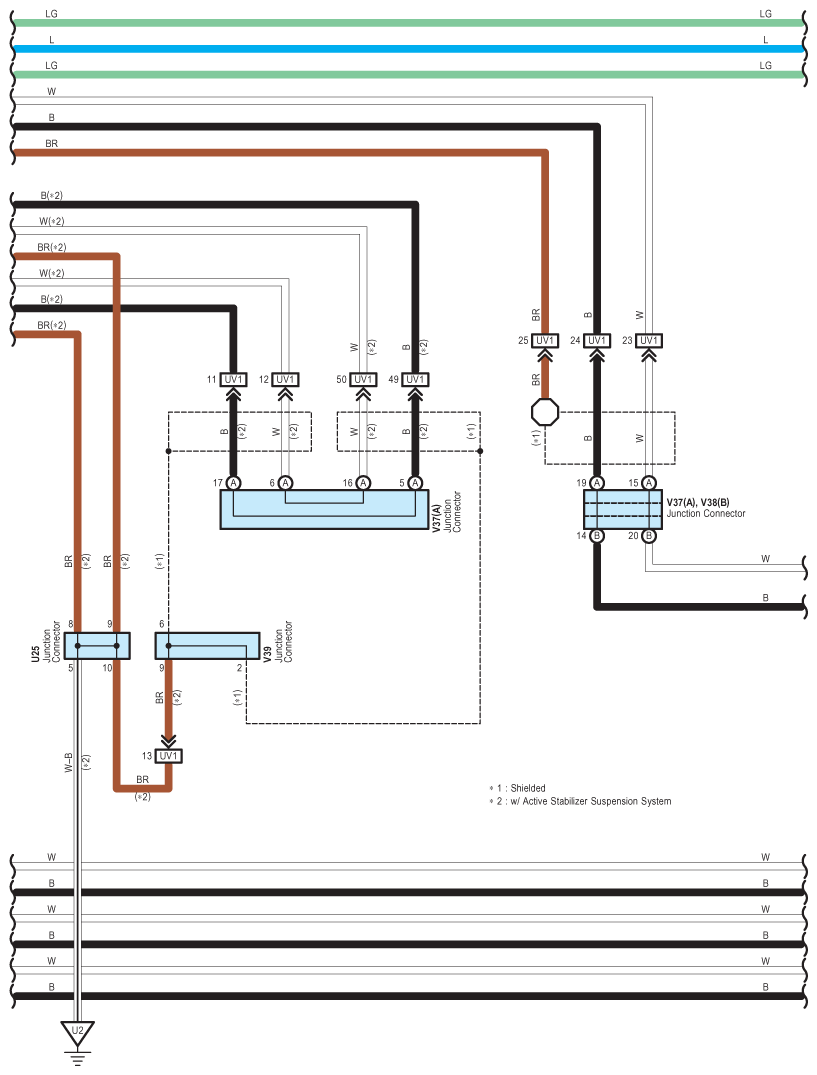

Fig 13: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (13 Of 15)

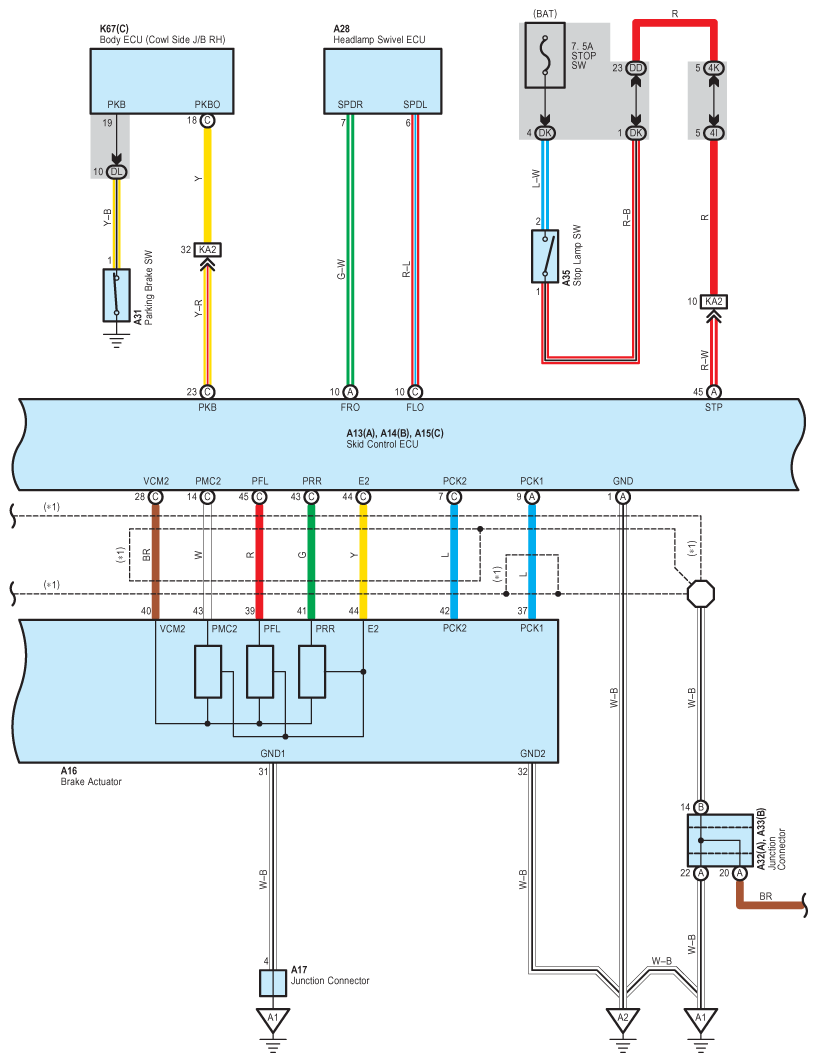

Fig 14: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (14 Of 15)

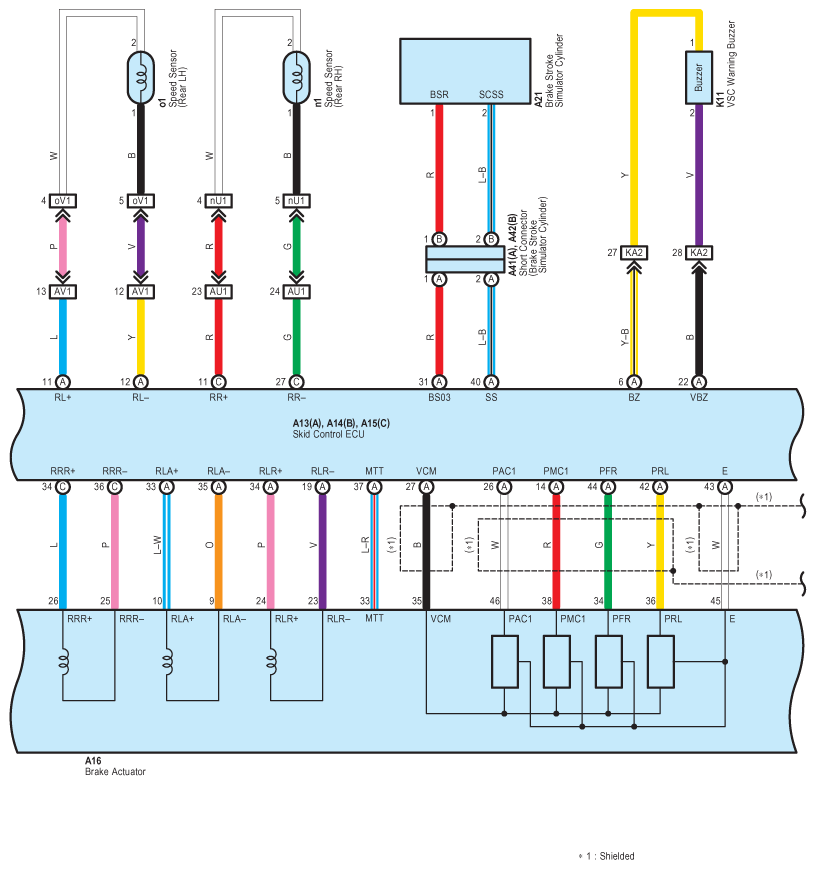

Fig 15: Vehicle Dynamics Integrated Management For Hybrid Vehicle Wiring Diagram (15 Of 15)
