Power Switch: Components

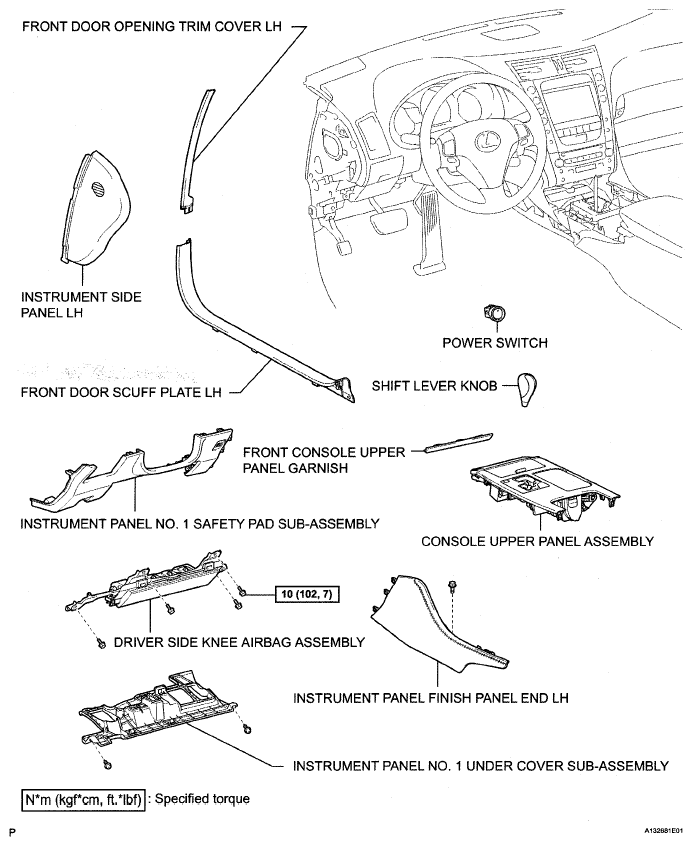

Fig 1: Power Switch Replacement Components With Torque Specifications
G05303658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
