Emission Control: Canister: Installation

INSTALL CANISTER
1. Connect the air inlet line hose to the charcoal canister.
  NOTE:
  - Check for damage or foreign objects on the connected part.
  - After connecting, check that the vent hose and the valve are securely connected by pulling on them.
2. Install the canister with the 4 nuts.
  Torque: 14.7 N*m (150 kgf*cm, 11 ft.*lbf)

  Fig 1: Locating Canister With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the air inlet line tube and vent line tube.
  1. Push the tubes into the port and push the retainer to lock it.
    NOTE:
    Check for damage or foreign objects on the connected part.

    After connecting, check that the vent hose and the valve are securely connected by pulling on them.
4. Connect the purge line hose.

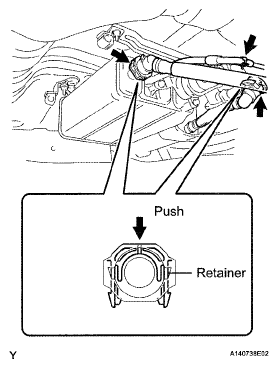

  Fig 2: Pushing Tubes Into Port And Push Retainer To Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the connector and attach the 2 clamps.

  Fig 3: Locating Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR UNDER COVER
1. Install the floor under cover with the 3 nuts and 6 clips.

  Fig 4: Identifying Floor Under Cover With Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL SERVICE PLUG GRIP (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION (2006/02-2006/07) ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
