Lexus
›
2007
›
GS 450h
›
Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emission Control
›
Emission Control System
›
Parts Location
Parts Location

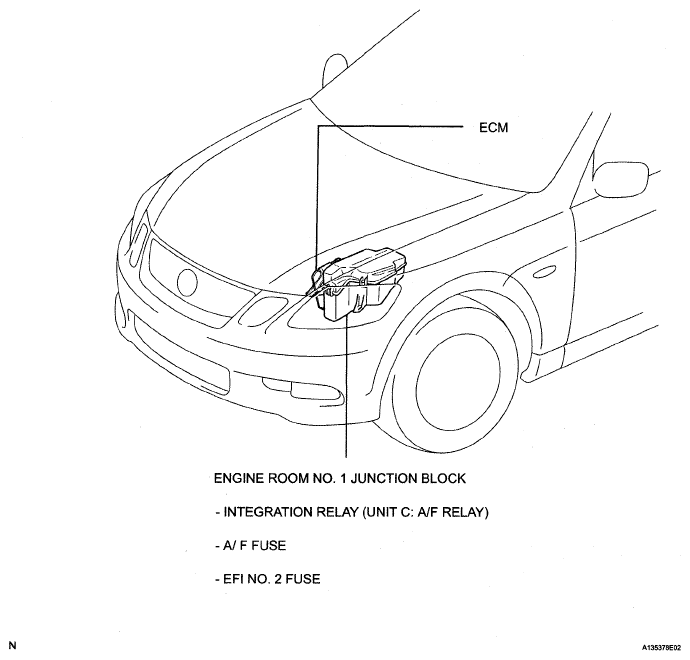

Fig 1: Identifying Emission Control System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

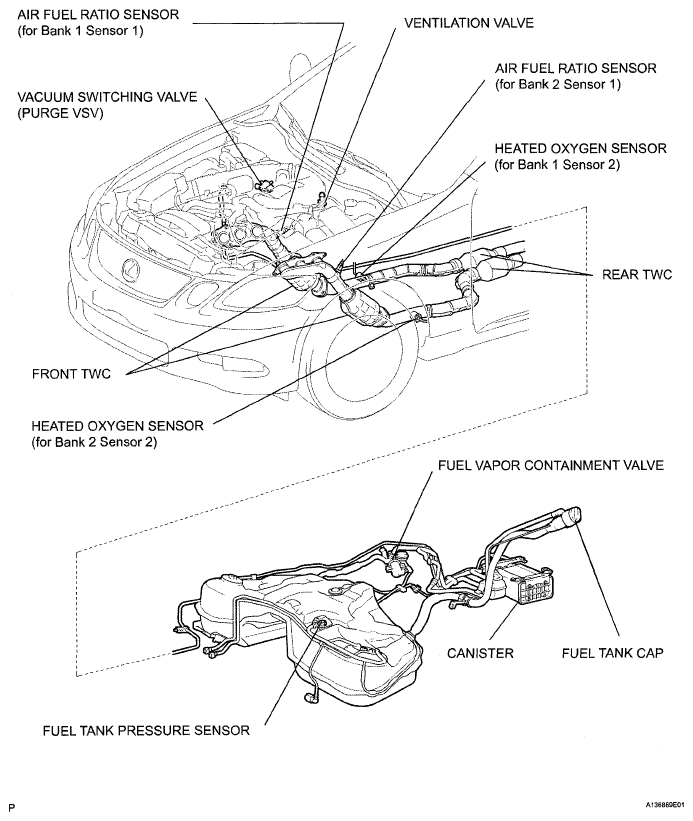

Fig 2: Identifying Emission Control System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
