System Diagram

  1. EMISSION CONTROL SYSTEM DIAGRAM

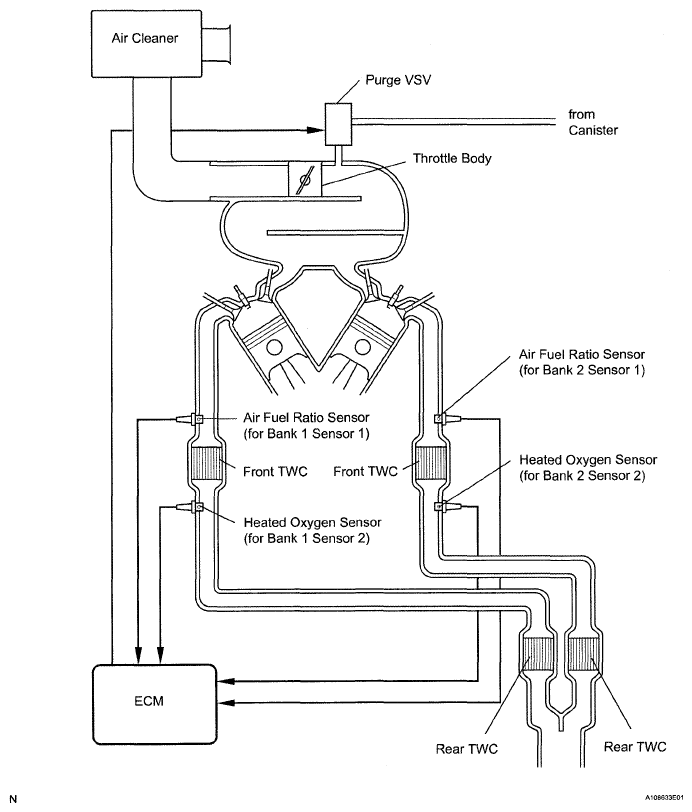

    Fig 1: Emission Control System Diagram
    G05303349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL SYSTEM DIAGRAM

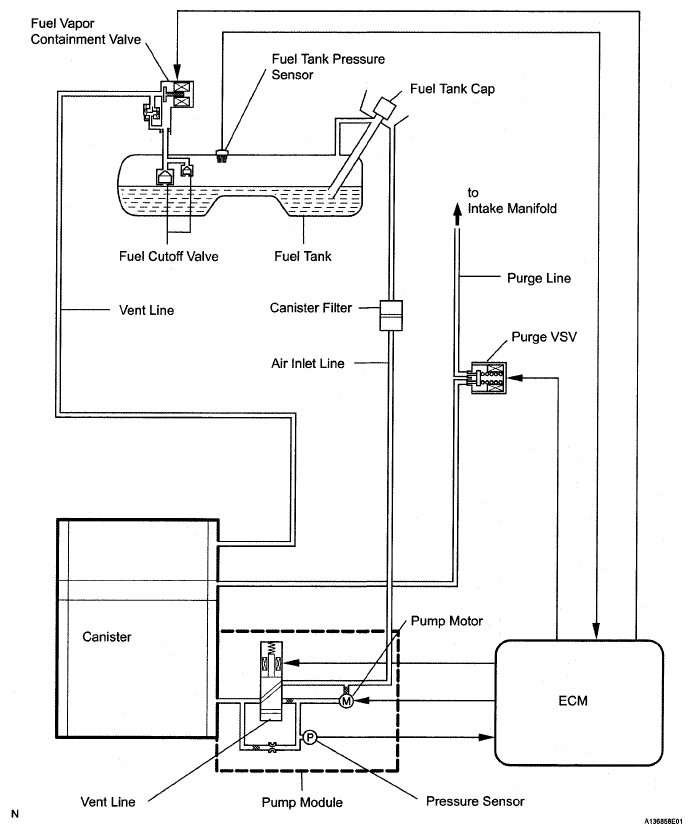

    Fig 2: EVAP Control System Diagram
    G05303350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. EVAP SYSTEM WIRING DIAGRAM

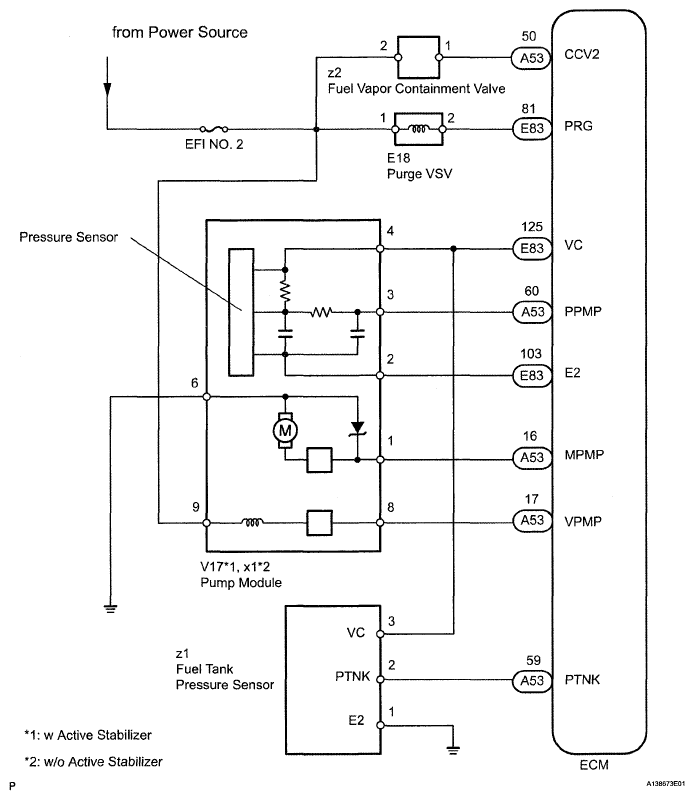

    Fig 3: EVAP System Wiring Diagram
    G05303351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM

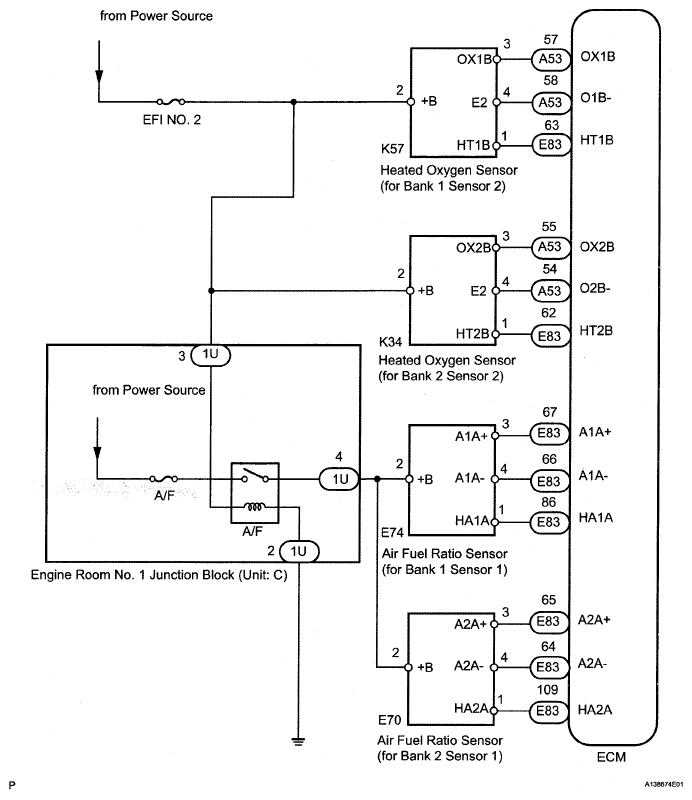

    Fig 4: Emission Control System Wiring Diagram
    G05303352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
