Fuel Tank Pressure Sensor: Components

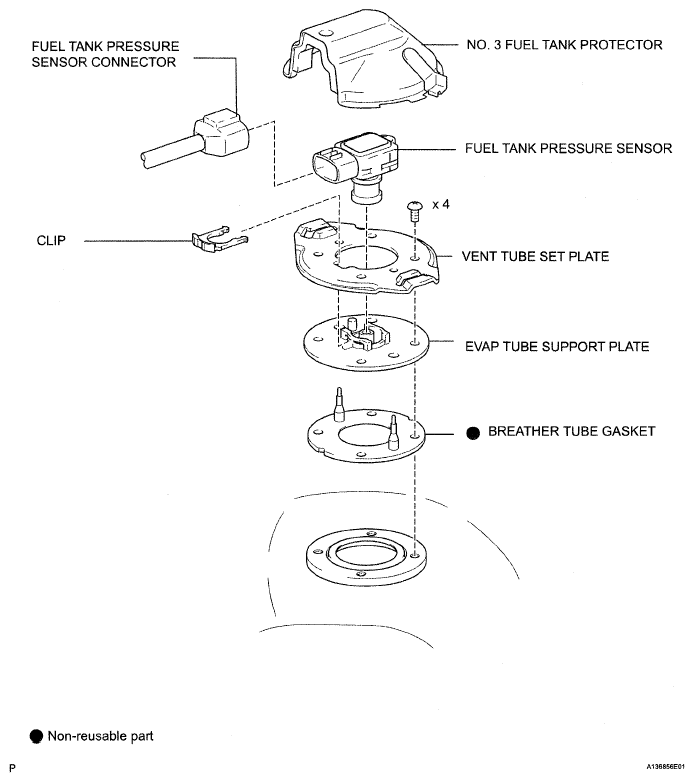

Fig 1: Identifying Fuel Tank Pressure Sensor Components

G05303390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
