Engine Control System - Component And System Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
MIL Circuit
›
Wiring Diagram
MIL Circuit: Wiring Diagram

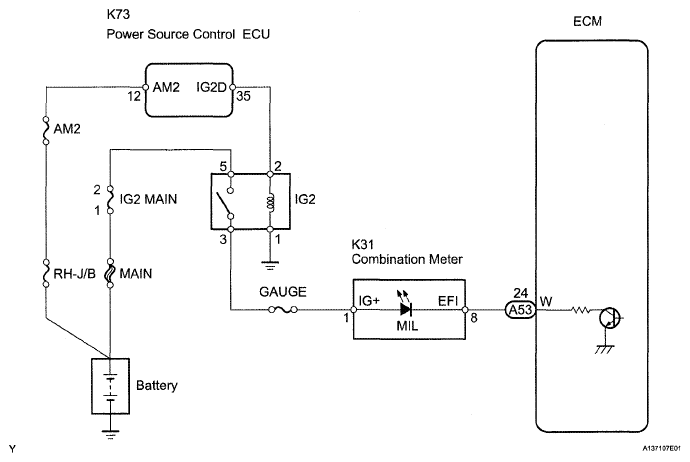

Fig 1: MIL - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
