Lexus
›
2007
›
GS 450h
›
Repair and Diagnosis
›
Engine Performance
›
Testing & Diagnosis
›
Engine Control System - Component And System Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

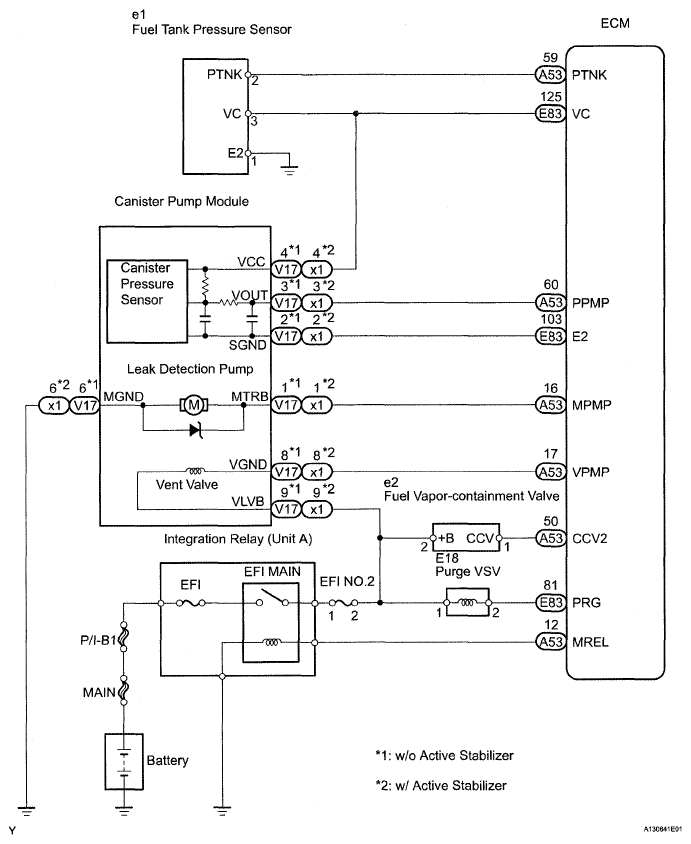

Fig 1: EVAP System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
