HV Relay Assembly: Inspection

If the values is not as specified, replace the HV relay assembly.

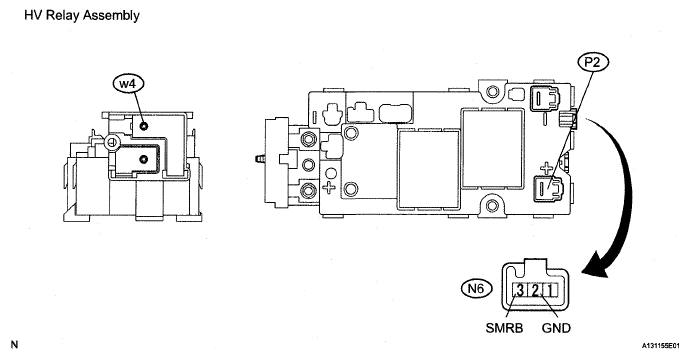

Fig 1: Identifying HV Relay Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   w4-1 - P2-1	10 kΩ or higher

2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   w4-1 - P2-1	Below 1 Ω (When battery voltage applied to terminals N6-2 and N6-3)

3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   N6-3 - GND (N6-2)	18.8 to 32.1 Ω at -35 to 80°C (-31 to 176°F)

If the value is not as specified, replace the HV relay assembly.

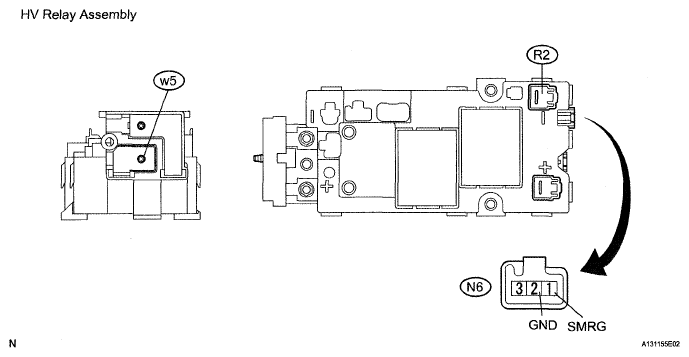

Fig 2: Identifying HV Relay Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   w5-1 - R2-1	10 kΩ or higher

2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   w5-1 - R2-1	Below 1 Ω (When battery voltage applied to terminals N6-1 and N6-2)

3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   N6-1 - GND (N6-2)	18.8 to 32.1 Ω at -35 to 80°C (-31 to 176°F)
