Parts Location

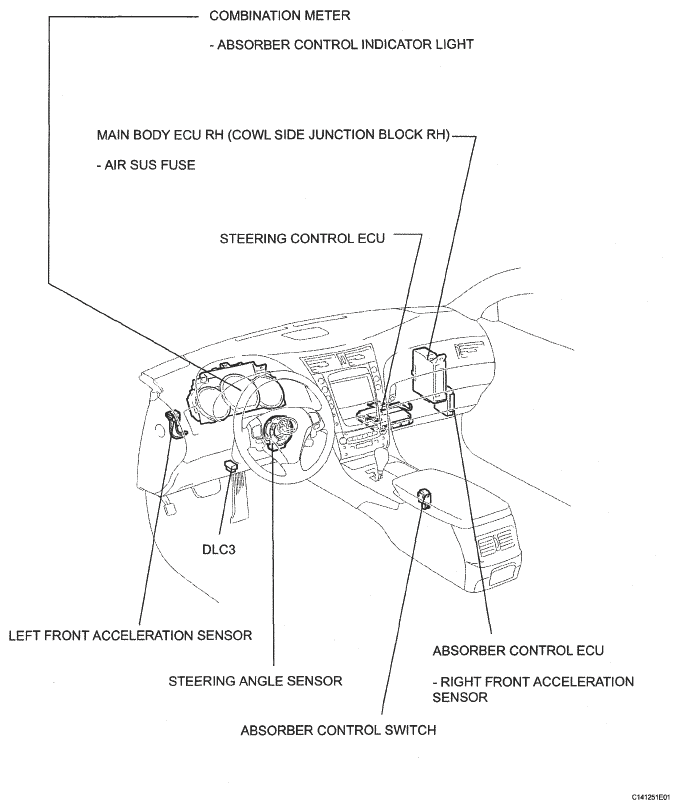

Fig 1: Identifying Adaptive Variable Suspension System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

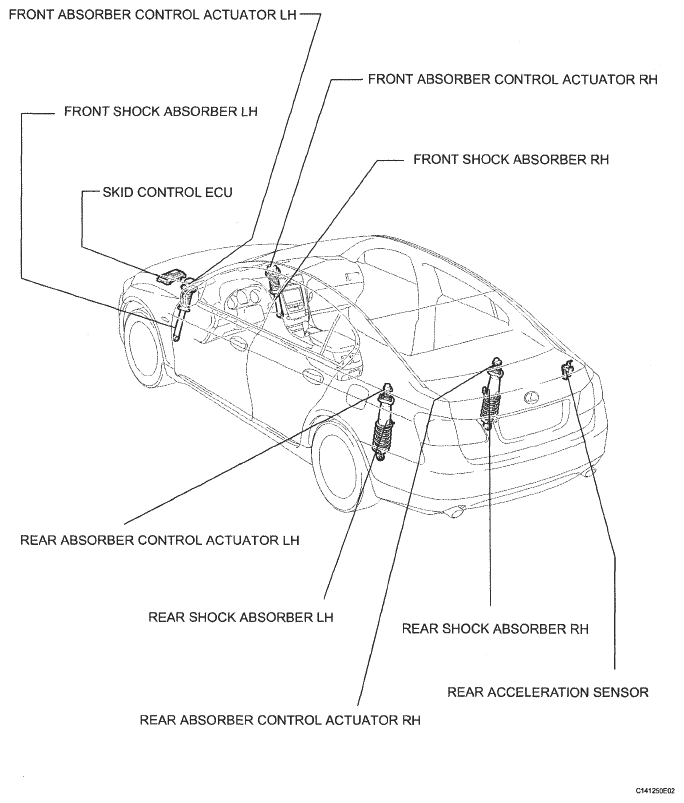

Fig 2: Identifying Adaptive Variable Suspension System Components Location (2 Of 2)
