System Diagram

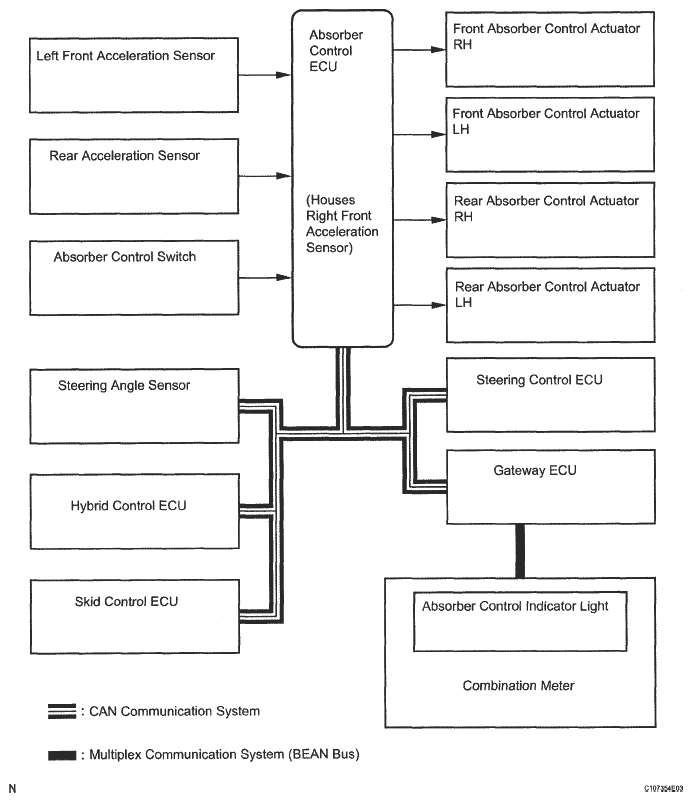

Fig 1: Adaptive Variable Suspension System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SIGNALS AND COMMUNICATION METHOD REFERENCE

Transmitting ECU (Sensor)	Receiving ECU	Signals	Communication method
Steering angle sensor	Absorber Control ECU	Steering angle signal VGRS setting status signal Steering angle sensor trouble signal	CAN communication system
Hybrid control ECU	Absorber Control ECU	Anti-squat control signal TC terminal signal	CAN communication system
Skid control ECU	Absorber Control ECU	Vehicle speed signal Stop light switch signal TS terminal signal Damping force demand signal	CAN communication system
Steering control ECU	Absorber Control ECU	VGRS control signal	CAN communication system
Absorber Control ECU	Combination meter (CPU)	Absorber control Indicator signal DTC output signal	CAN communication system Multiplex communication system
