Oil Pump Motor Controller: Components

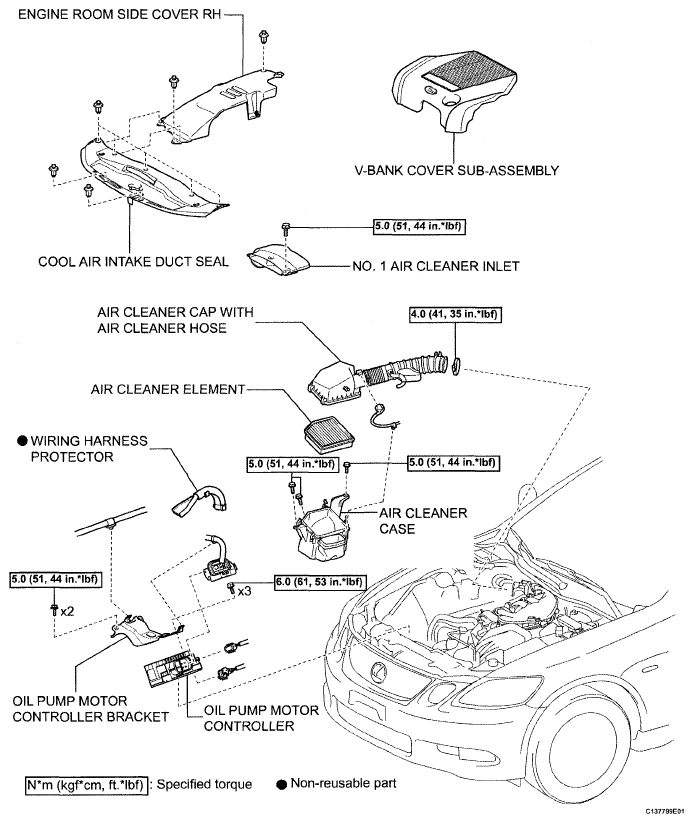

Fig 1: Identifying Oil Pump Motor Controller Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Oil Pump Motor Controller Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
