Entertainment Systems: Audio/Visual: Multi-Display: Components

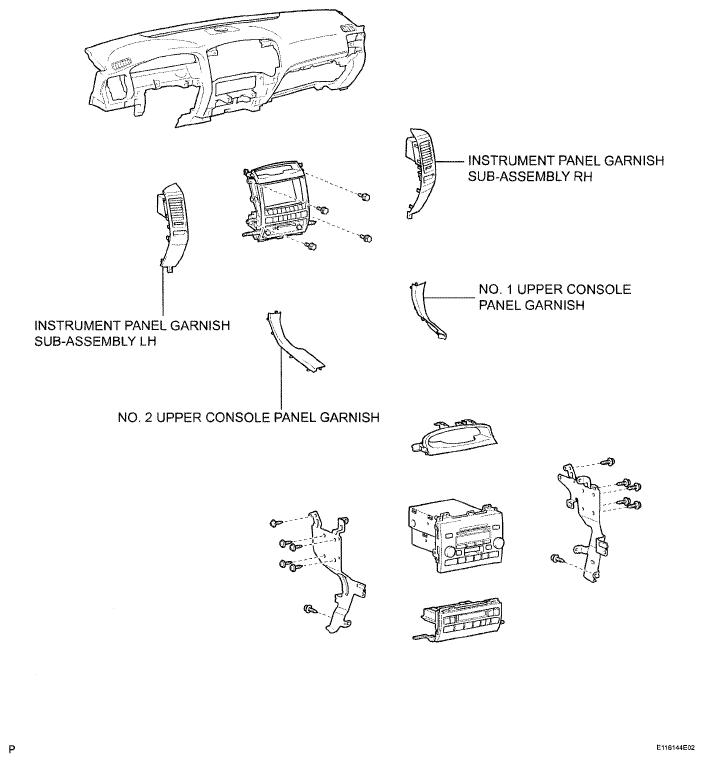

Fig 1: Identifying Multi-Display Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

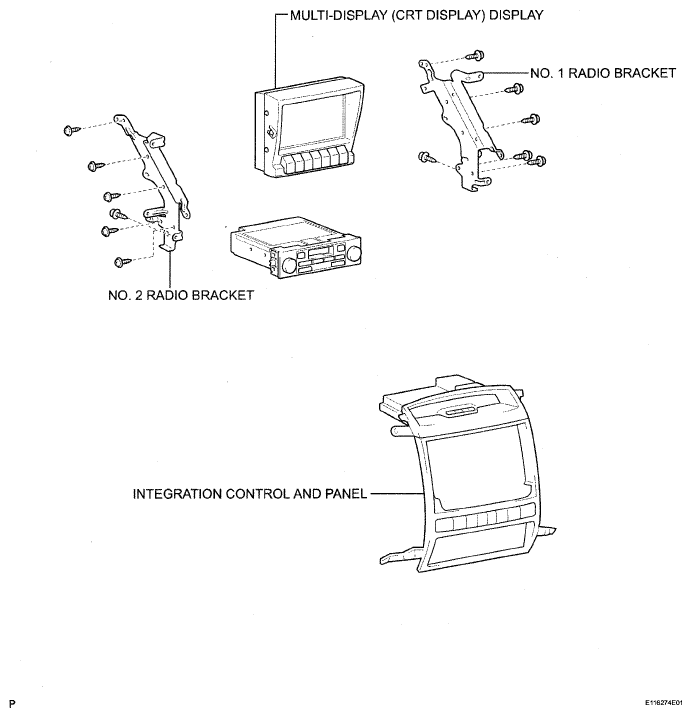

Fig 2: Identifying Multi-Display Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
