Manual Up/Down Function Does Not Operate On Rear RH Only
›
Wiring Diagram
Manual Up/Down Function Does Not Operate On Rear RH Only: Wiring Diagram

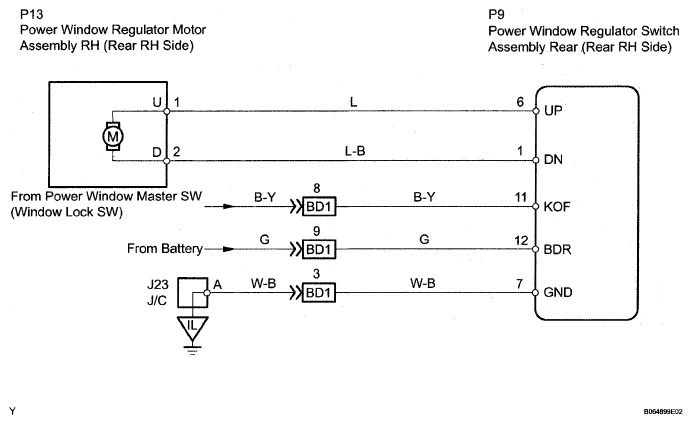

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
