DTC C1380/64: Stop Light Control Relay Malfunction: Wiring Diagram

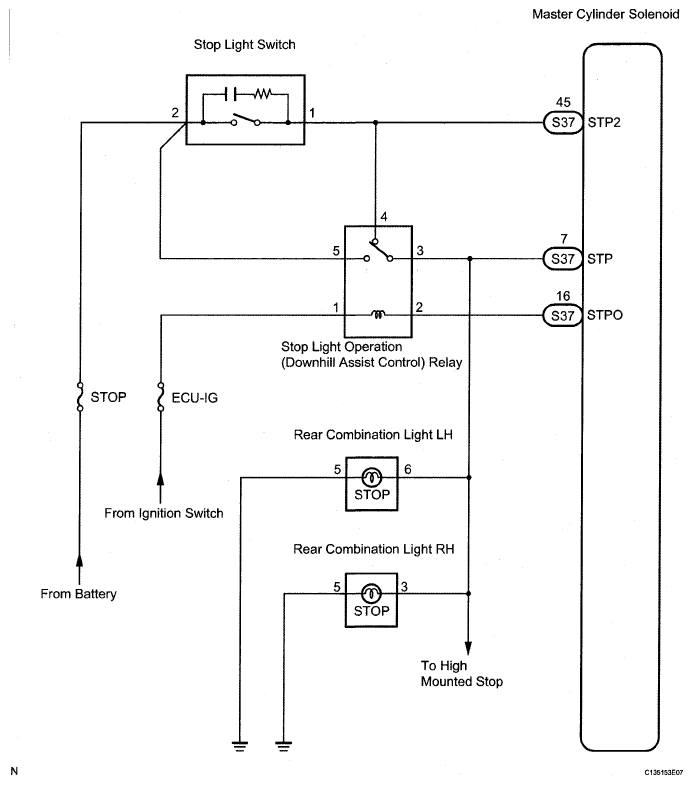

Fig 1: Identifying Stop Light Control Relay Malfunction Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
