VSC OFF Indicator Light Remains ON: Wiring Diagram

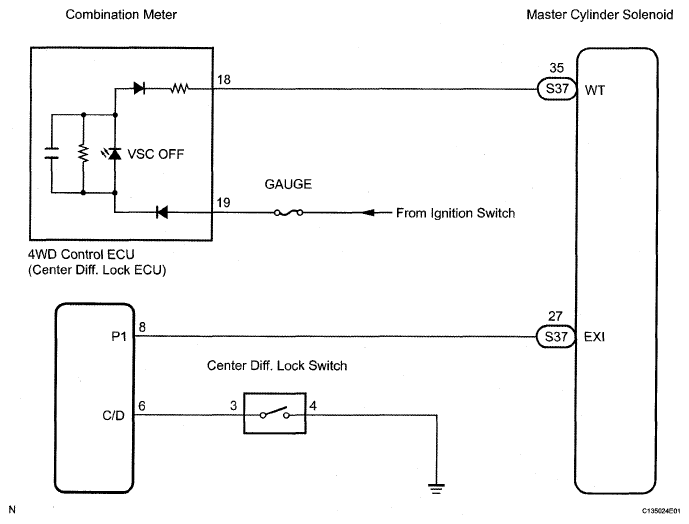

Fig 1: Identifying VSC Off Indicator Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
