Front Axle Hub: Installation

INSTALL FRONT AXLE HUB ASSEMBLY
1. Install the front axle hub assembly.
INSTALL FRONT SUSPENSION UPPER ARM ASSEMBLY
1. Install the front suspension upper arm assembly with a nut.
  Torque: 110 N*m (1,122 kgf*cm, 81 ft.*lbf)
2. Install a new cotter pin.
Fig 1: Installing Front Suspension Upper Arm Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 FRONT SUSPENSION LOWER ARM SUB-ASSEMBLY
1. Install the No. 1 front suspension lower arm sub-assembly with the 2 bolts.
  Torque: 160 N*m (1,630 kgf*cm, 118 ft.*lbf)

  Fig 2: Locating No. 1 Front Suspension Lower Arm Sub-Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIE ROD END SUB-ASSEMBLY
1. Install the tie rod end sub-assembly with the nut.
  Torque: 91 N*m (928 kgf*cm, 67 ft.*lbf)
2. Install a new cotter pin.
Fig 3: Installing Tie Rod End Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER LINK ASSEMBLY
1. Install the stabilizer link with a nut to the steering knuckle.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  HINT:

  If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

  Fig 4: Locating Front Stabilizer Link Assembly Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SPEED SENSOR (w/ABS)
1. Install the speed sensor wire harness to the steering knuckle with a bolt.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
2. Connect the 2 clips.
3. Using a hexagon wrench, install the speed sensor with the bolt.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

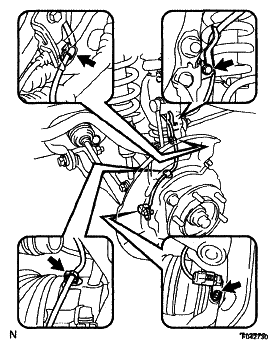

  Fig 5: Locating Speed Sensor Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB NUT
1. Install the hub nut.
  Torque: 235 N*m (2,396 kgf*cm, 173 ft.*lbf)
2. Install the adjusting cap and cotter pin.
INSPECT FRONT AXLE HUB (See AXLE SYSTEM )
INSTALL FRONT AXLE HUB GREASE CAP
1. Install the front axle hub grease cap.
INSTALL FRONT DISC

Fig 6: Locating Cotter Pin And Lock Cap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY
1. Install the front disc brake caliper assembly with the 2 bolts.
  Torque: 123 N*m (1,254 kgf*cm, 91 ft.*lbf)

  Fig 7: Locating Front Disc Brake Caliper Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the brake tube bracket to the steering knuckle with a bolt.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
3. Using SST, connect the brake tube to the disc brake caliper assembly.
  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
BLEED BRAKE LINE
INSPECT FLUID LEVEL IN RESERVOIR
CHECK BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 112 N*m (1,142 kgf*cm, 83 ft.*lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:

(See FRONT WHEEL ALIGNMENT )
INSPECT ABS SPEED SENSOR SIGNAL
HINT:

(See TEST MODE PROCEDURE )

Fig 8: Locating Brake Tube Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
