Center Differential Lock
›
Notes
Center Differential Lock: Notes

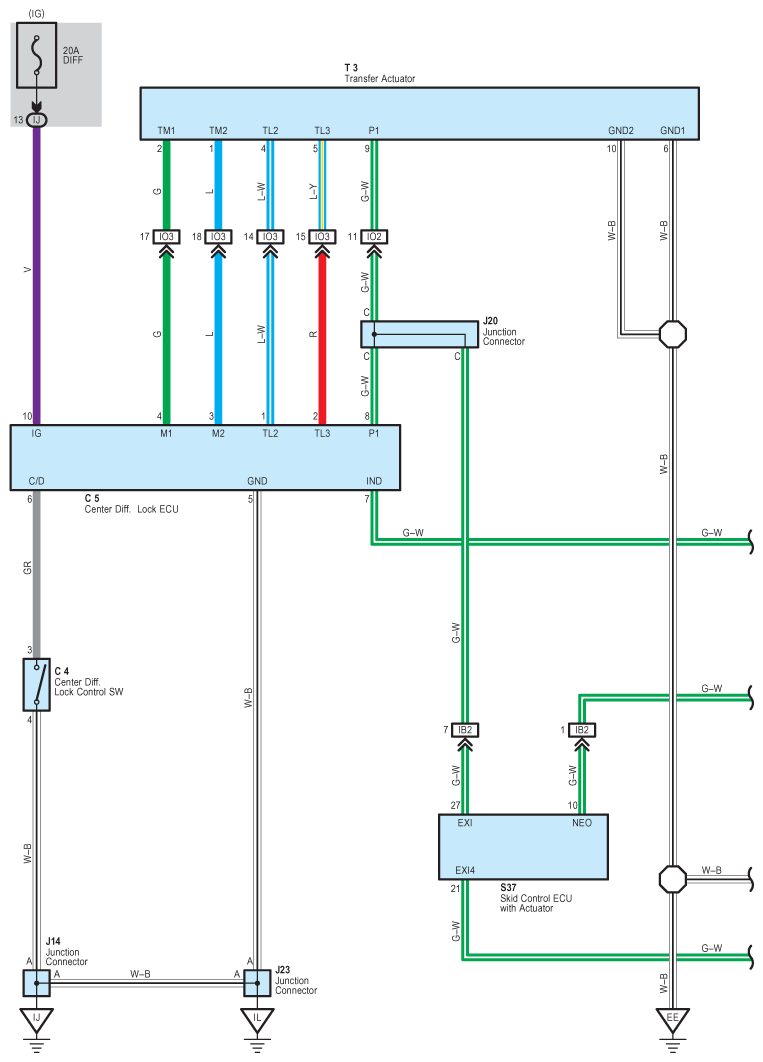

Fig 1: Center Differential Lock System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

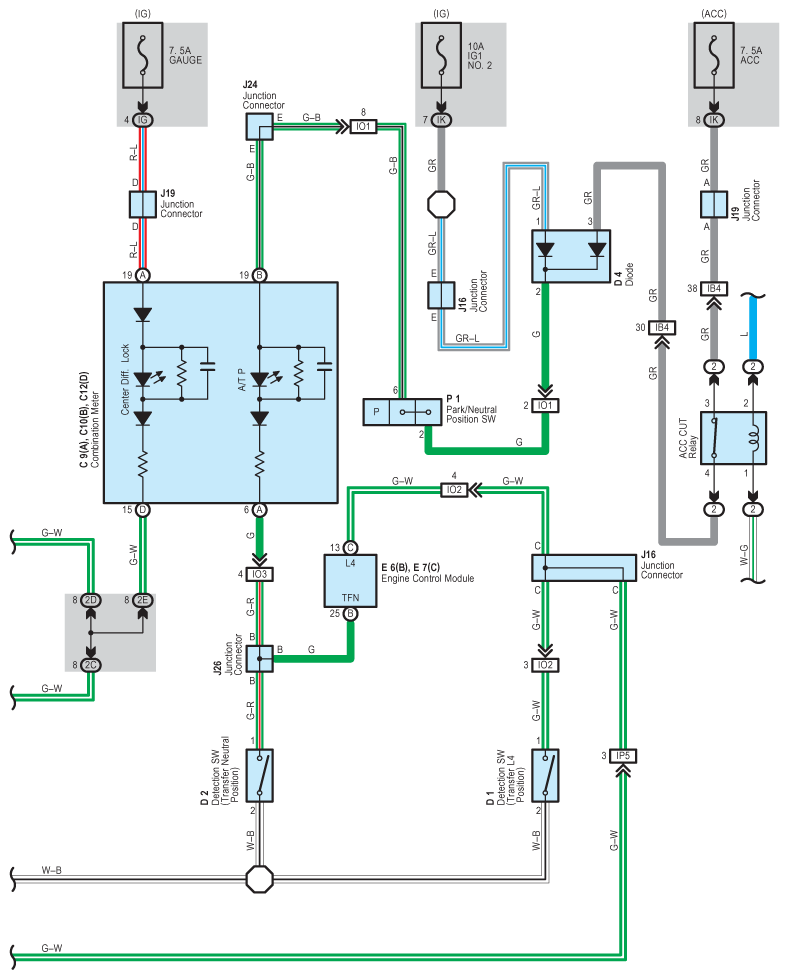

Fig 2: Center Differential Lock System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
