Condenser Fan: Notes

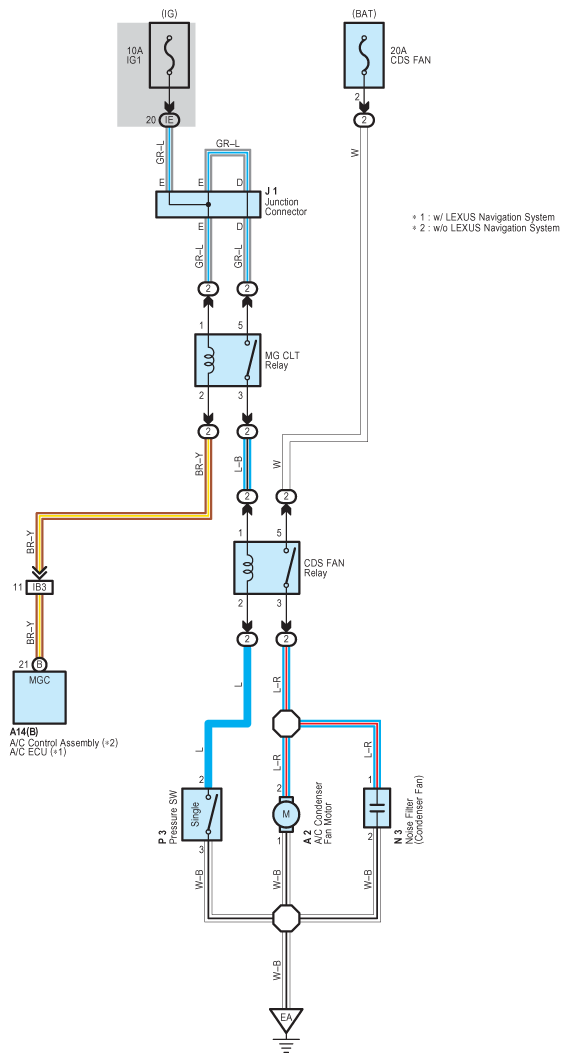

Fig 1: Condenser Fan System Wiring Diagram

G08917711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
