Electric Tension Reducer: Notes

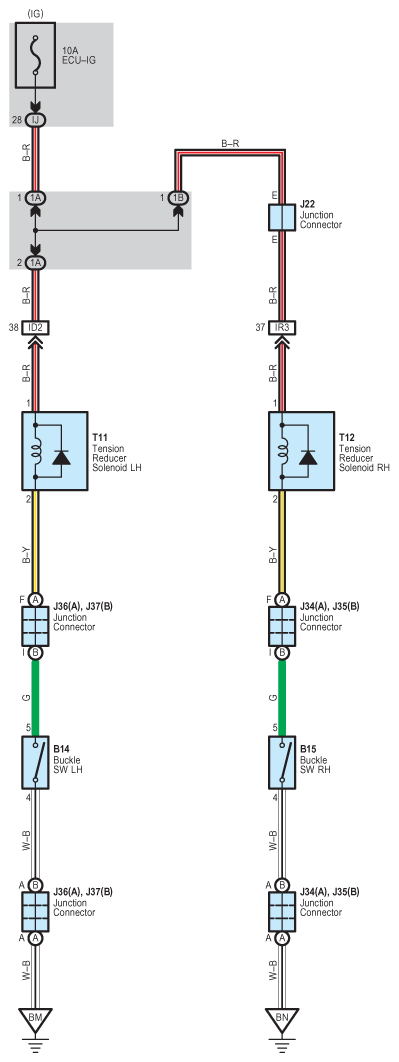

Fig 1: Electric Tension Reducer System Wiring Diagram
G08917665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
