Front Wiper with Rain Sensor and Washer: Notes

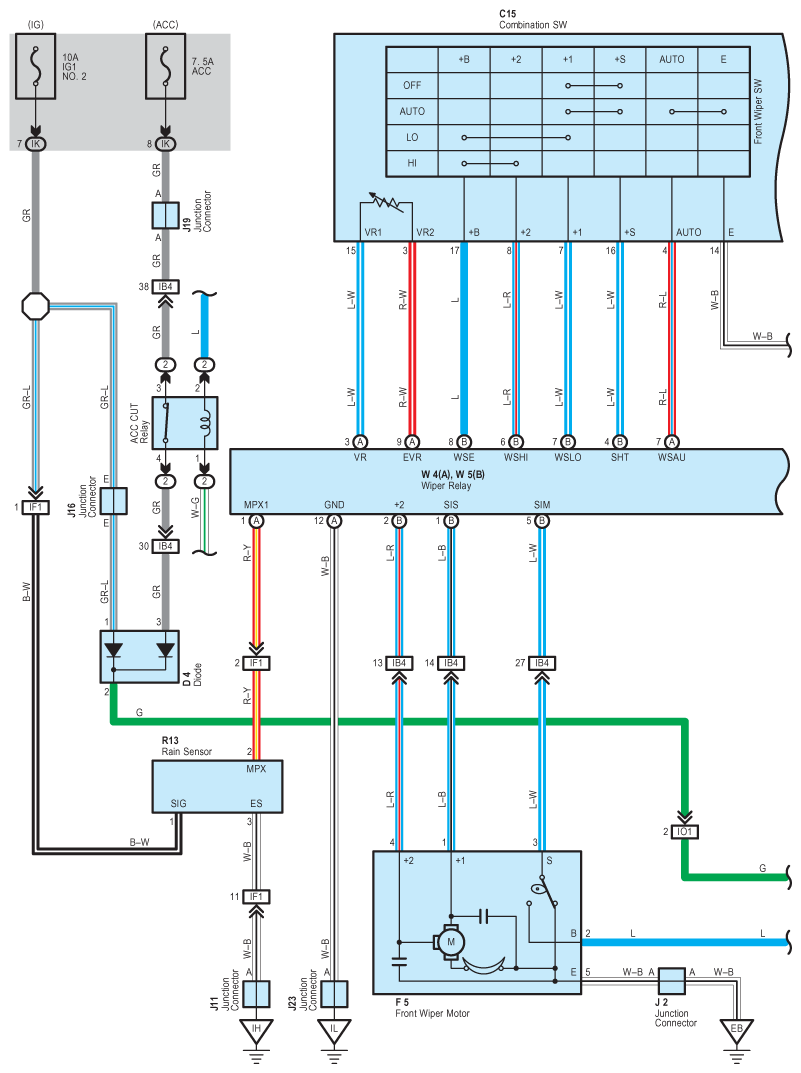

Fig 1: Front Wiper With Rain Sensor And Washer System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

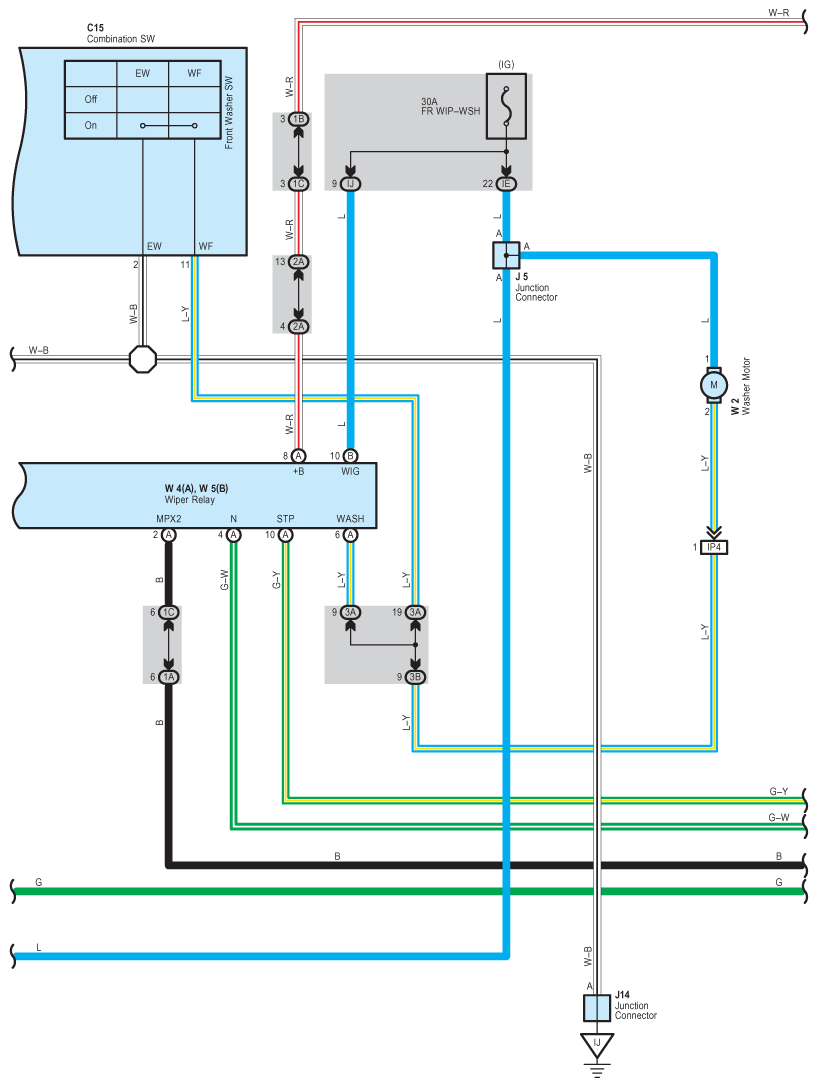

Fig 2: Front Wiper With Rain Sensor And Washer System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

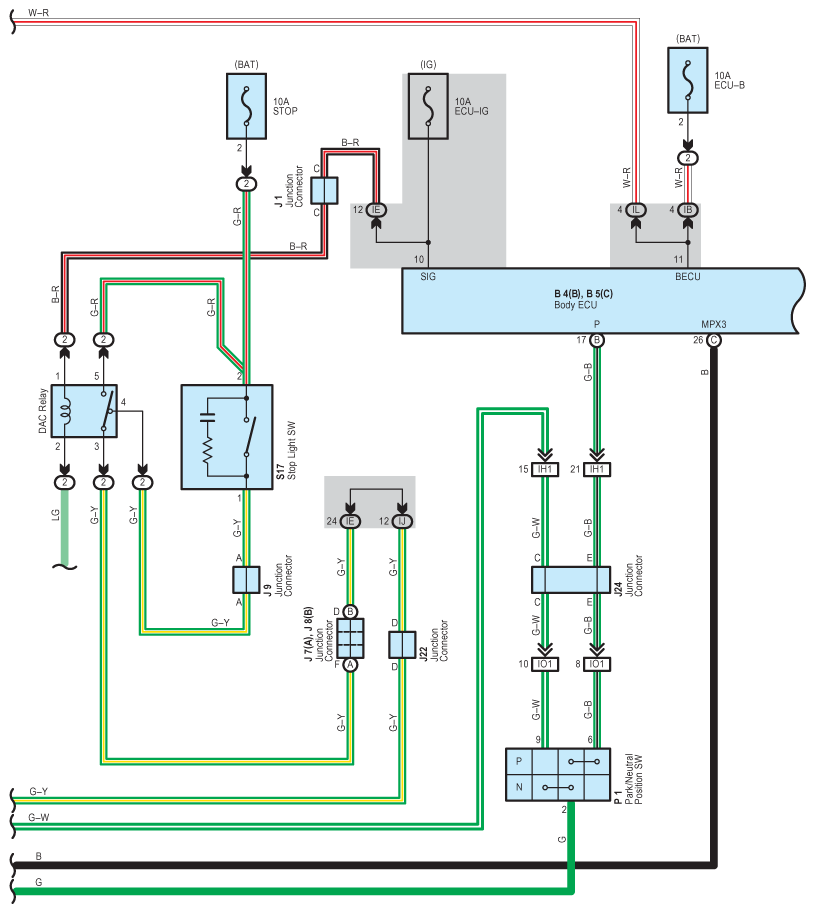

Fig 3: Front Wiper With Rain Sensor And Washer System Wiring Diagram (3 Of 4)

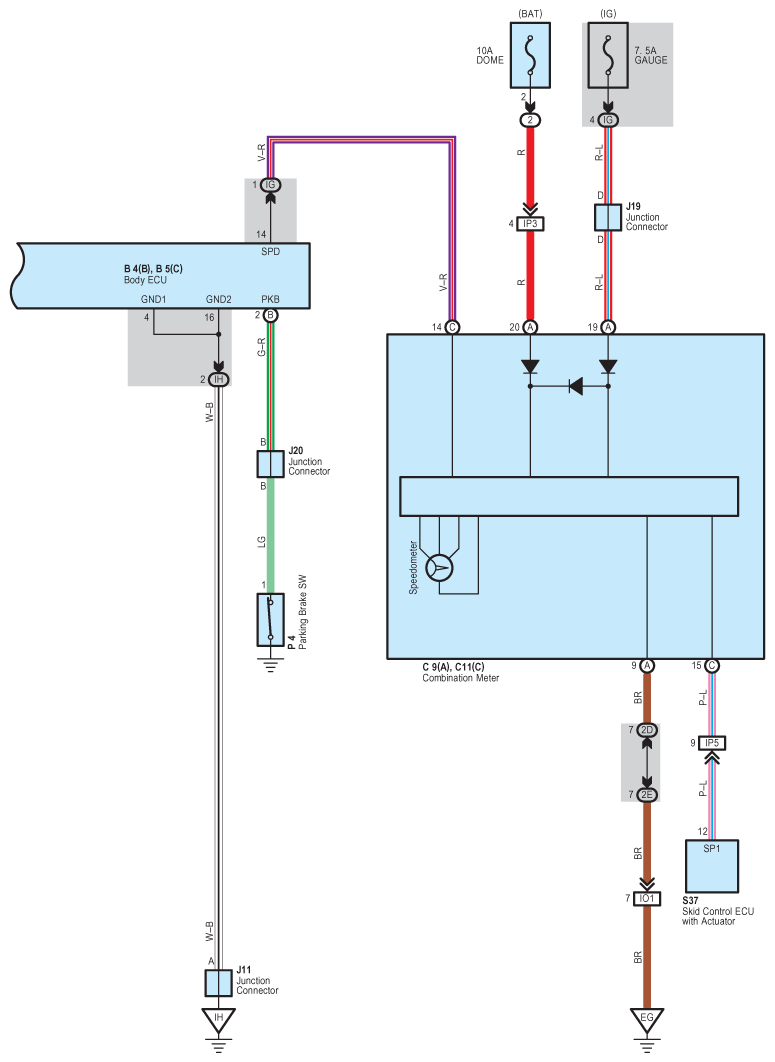

Fig 4: Front Wiper With Rain Sensor And Washer System Wiring Diagram (4 Of 4)
