Front Wiper without Rain Sensor and Washer: Notes

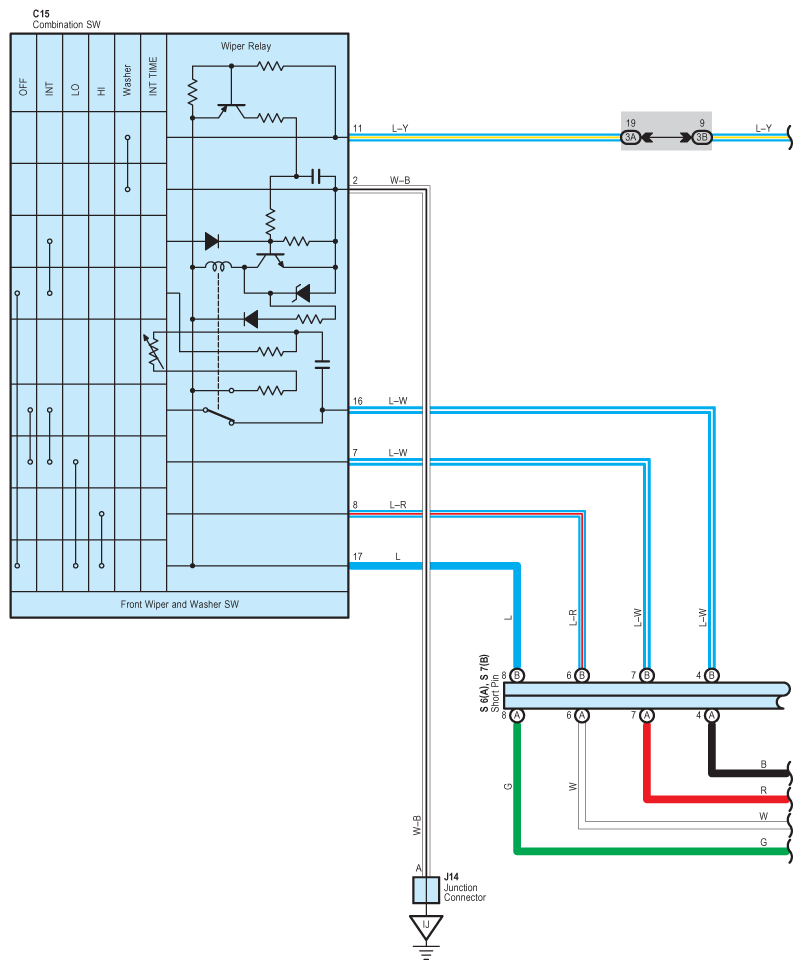

Fig 1: Front Wiper Without Rain Sensor And Washer System Wiring Diagram (1 Of 2)
G08917596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

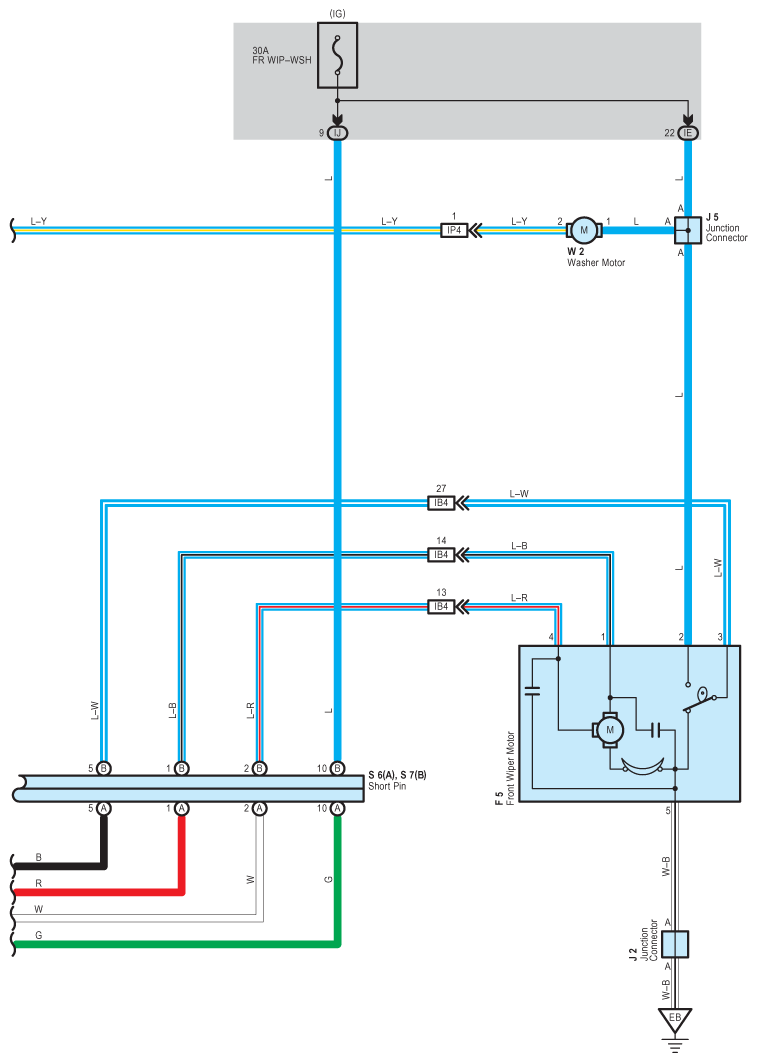

Fig 2: Front Wiper Without Rain Sensor And Washer System Wiring Diagram (2 Of 2)
G08917597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
