Mirror Heater: Notes

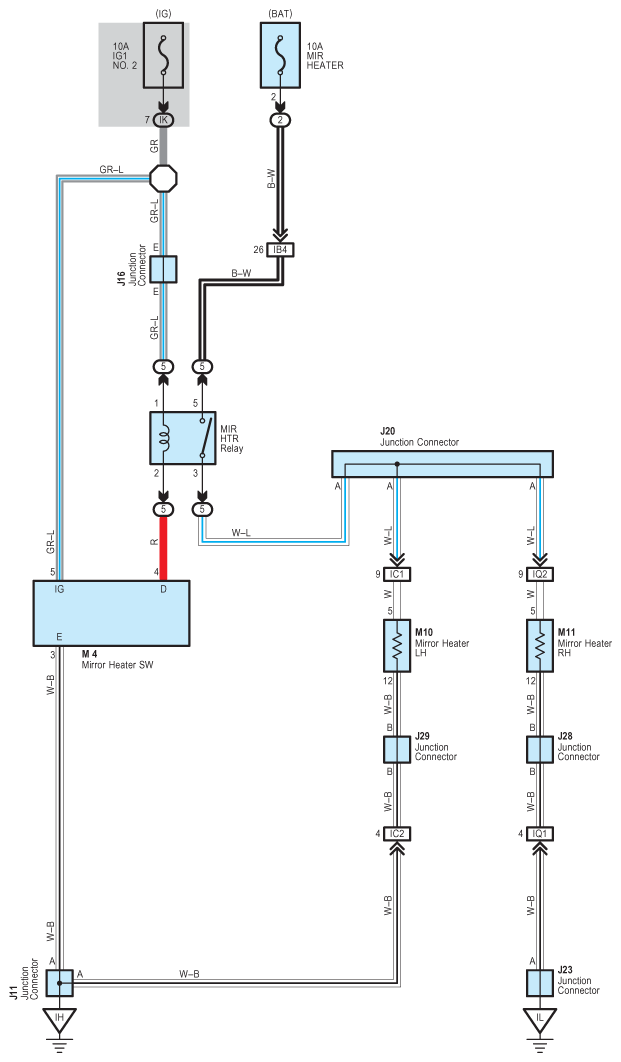

Fig 1: Mirror Heater System Wiring Diagram
G08917675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
