Moon Roof: Notes

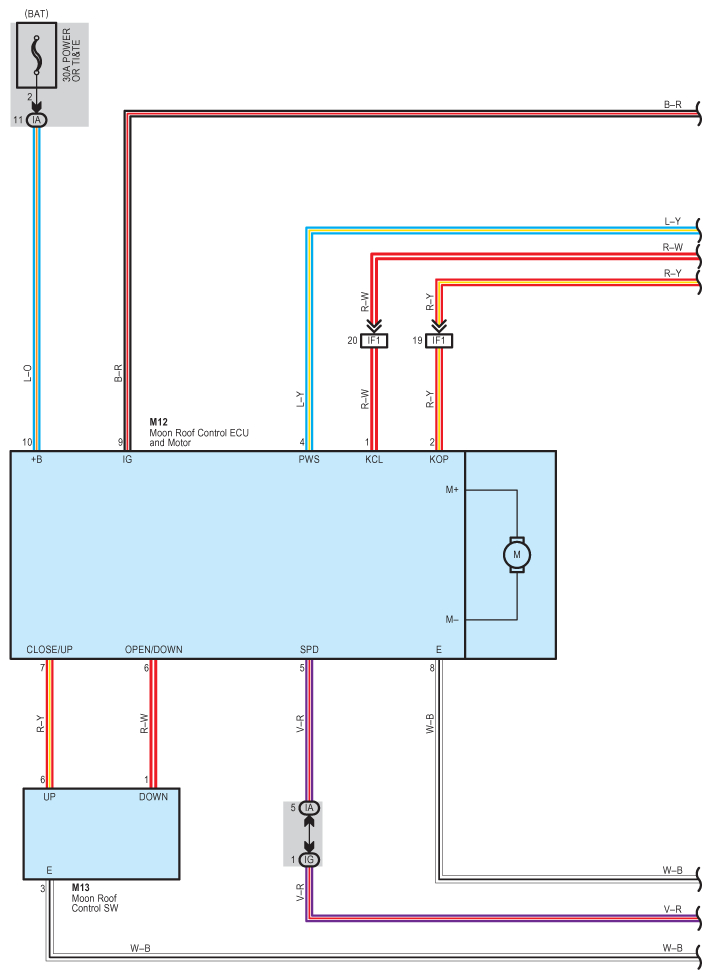

Fig 1: Moon Roof System Wiring Diagram (1 Of 3)
G08917651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

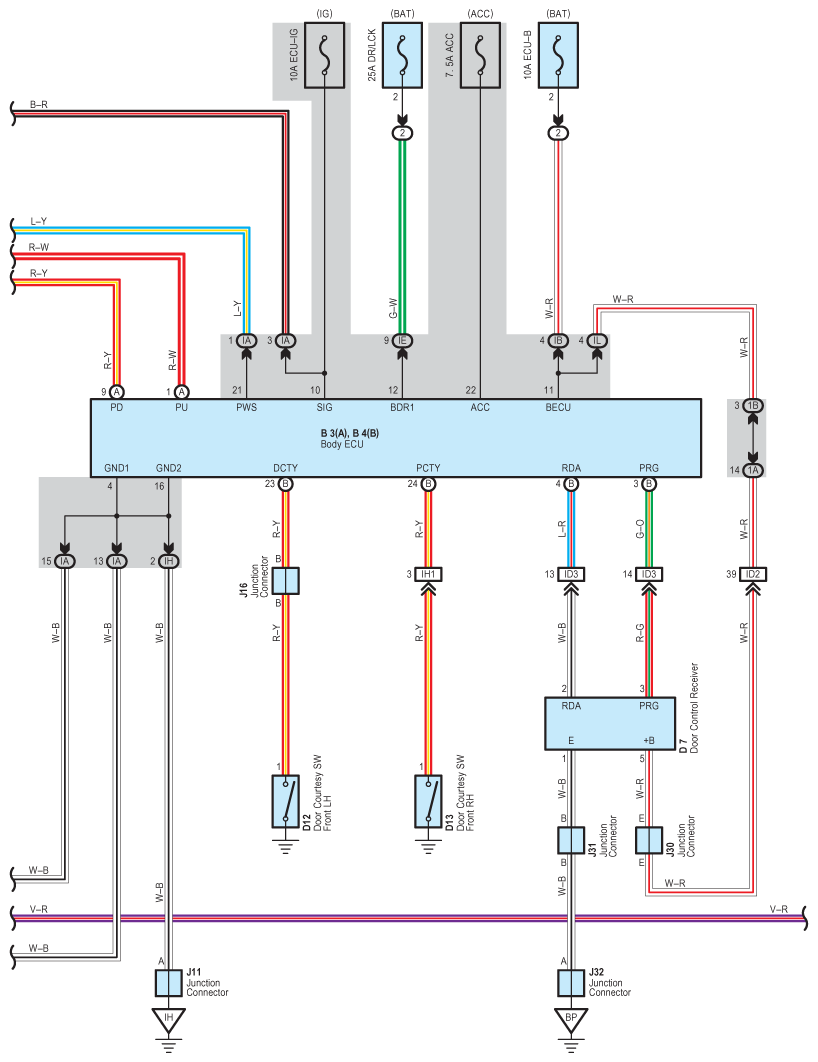

Fig 2: Moon Roof System Wiring Diagram (2 Of 3)
G08917652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

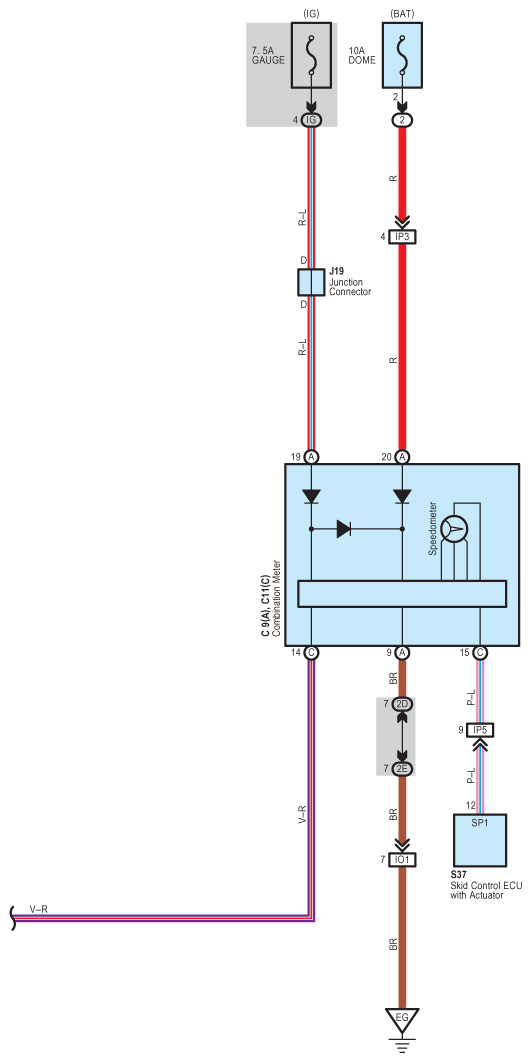

Fig 3: Moon Roof System Wiring Diagram (3 Of 3)
G08917653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
