Multiplex Communication System - CAN
›
Notes
Multiplex Communication System - CAN: Notes

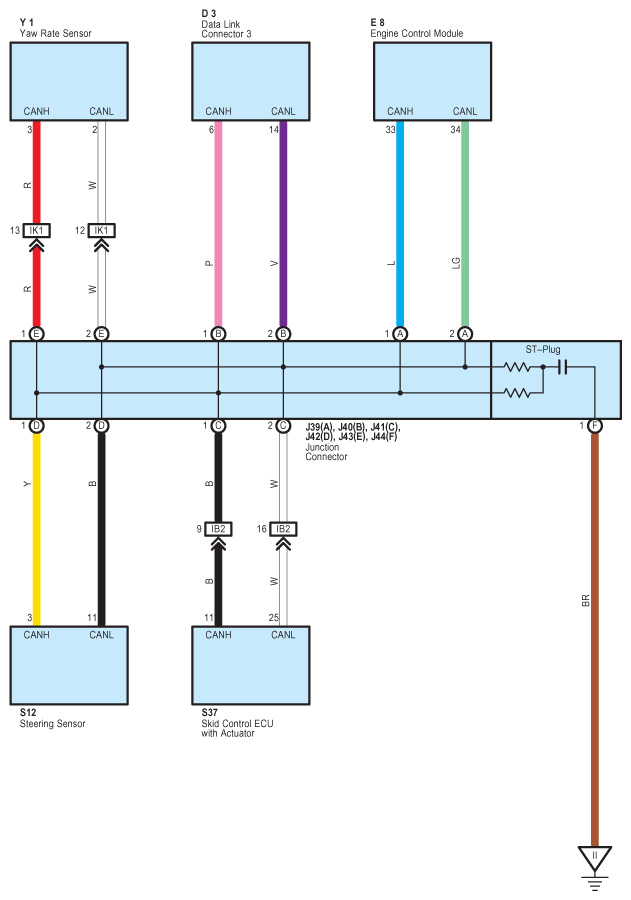

Fig 1: Multiplex Communication System - CAN System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
