Lexus
›
2007
›
GX 470
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Tire Pressure Warning System
›
Notes
Tire Pressure Warning System: Notes

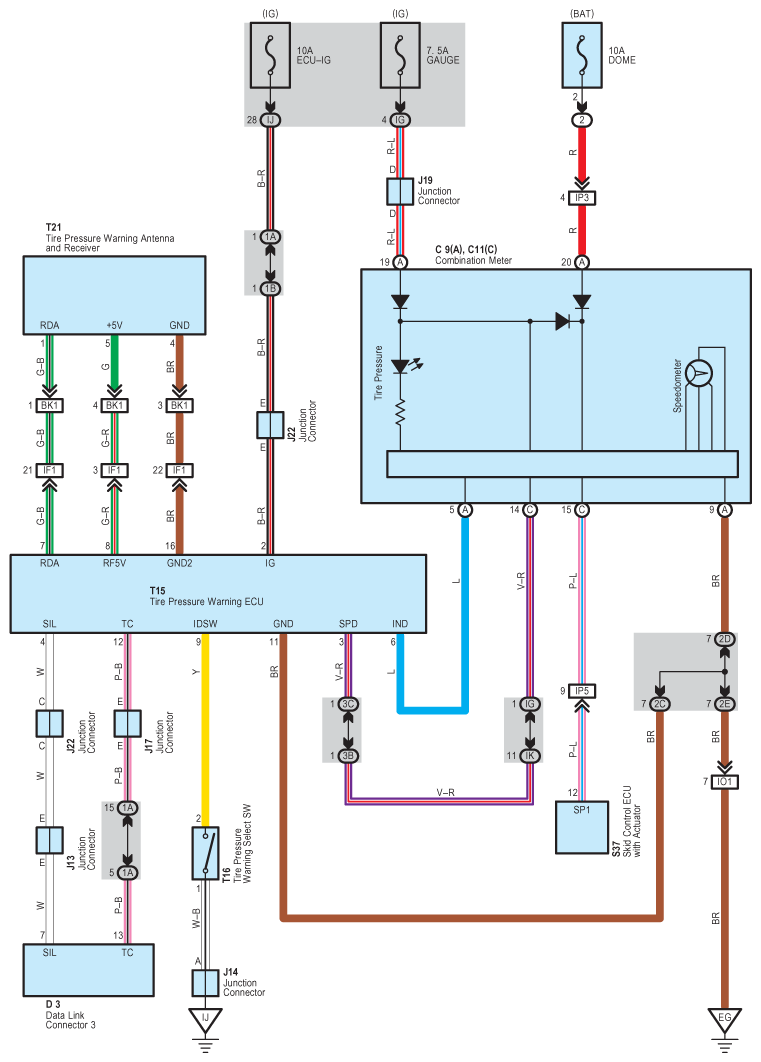

Fig 1: Tire Pressure Warning System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
