Accessory Meter: Components

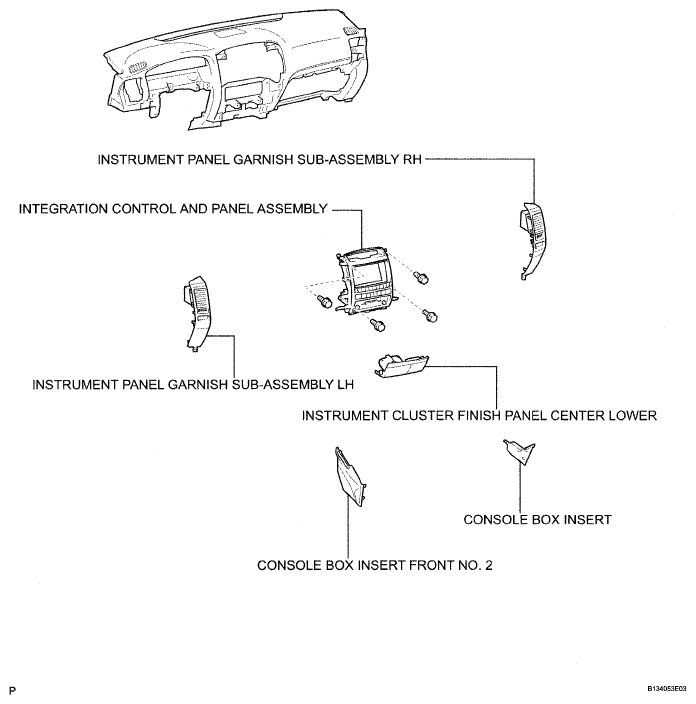

Fig 1: Identifying Accessory Meter Replacement Components (1 Of 3)
G05266050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

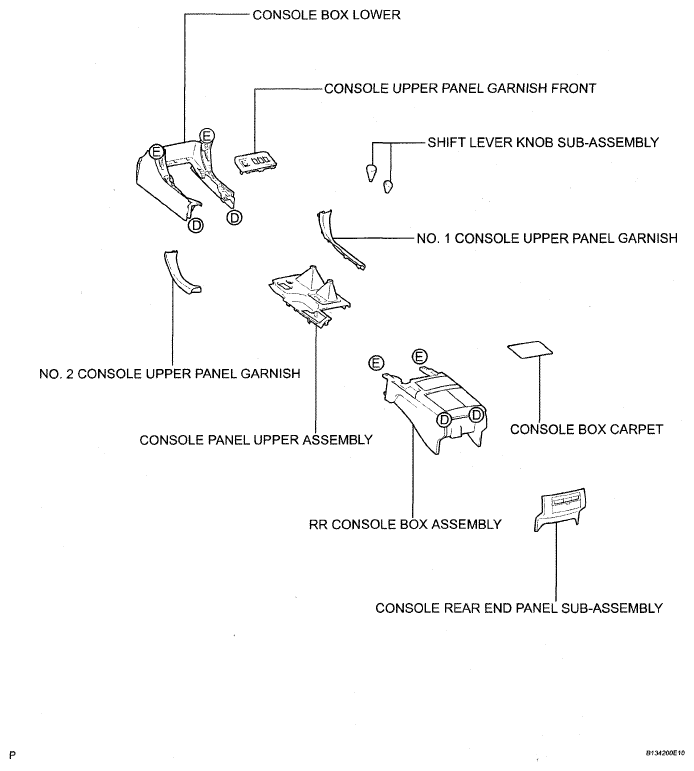

Fig 2: Identifying Accessory Meter Replacement Components (2 Of 3)
G05266051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

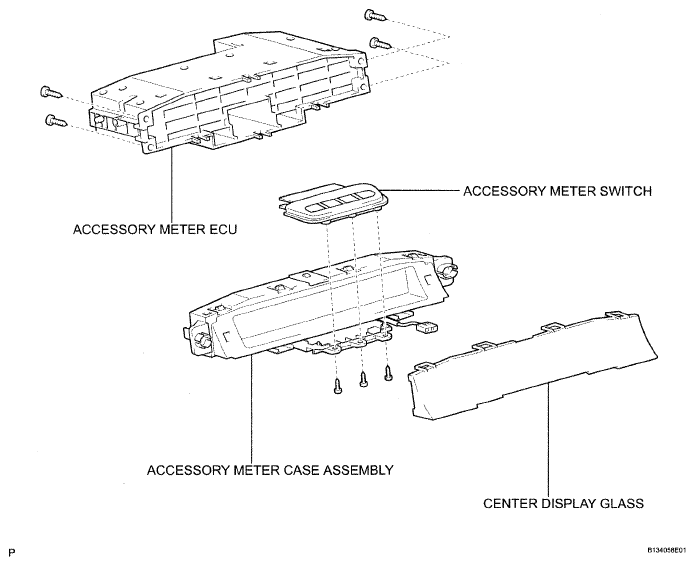

Fig 3: Identifying Accessory Meter Replacement Components (3 Of 3)
G05266052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
