Meter/Gauge System
›
Multi-Display Power Source Circuit
›
Wiring Diagram
Multi-Display Power Source Circuit: Wiring Diagram

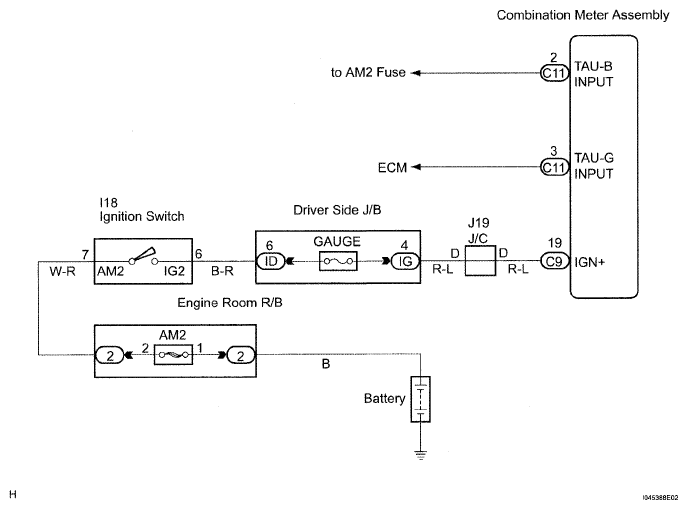

Fig 1: Identifying Multi-Display Power Source Circuit Wiring Diagram
