Exhaust Pipe: Components

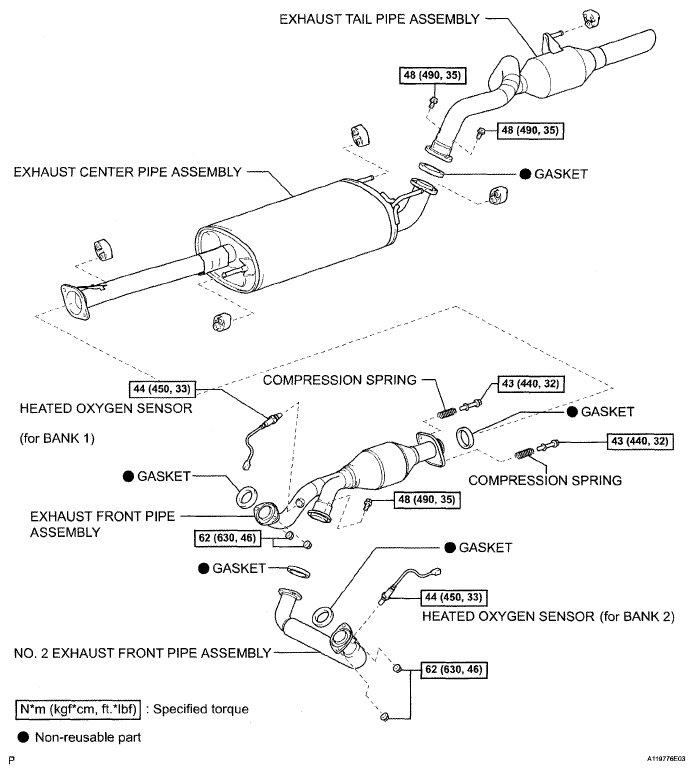

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications
G05264980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
