Parts Location

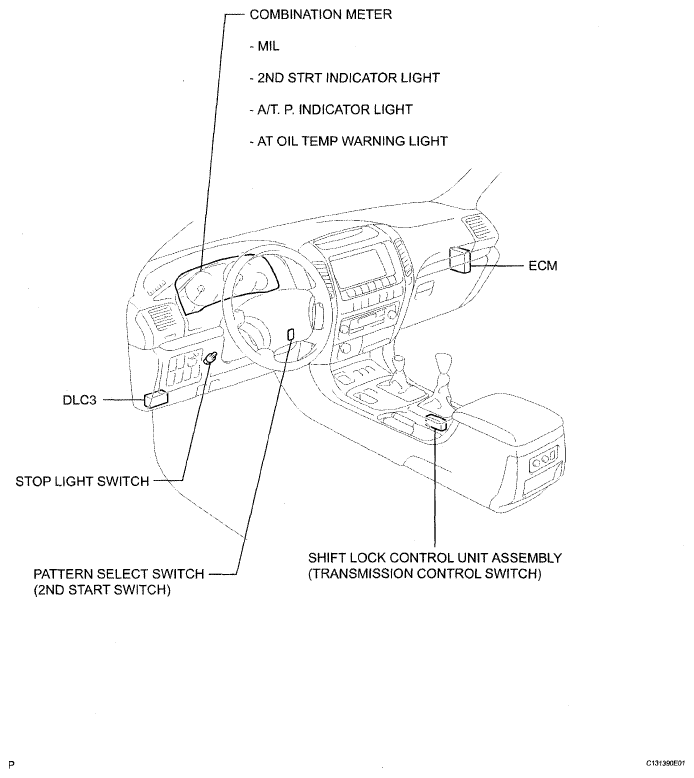

Fig 1: Identifying Automatic Transmission System Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

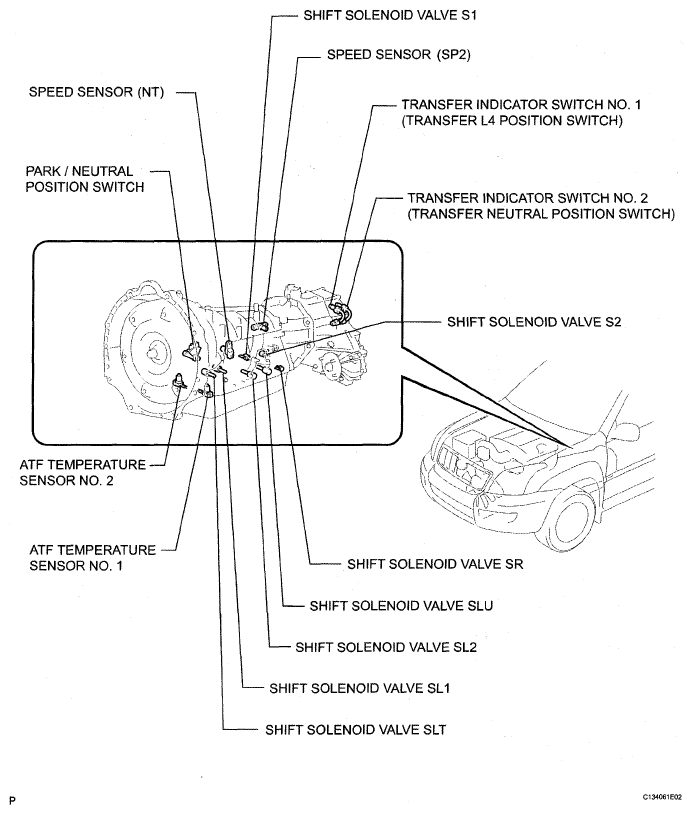

Fig 2: Identifying Automatic Transmission System Replacement Components (2 Of 2)
