Pattern Select Switch Circuit: Wiring Diagram

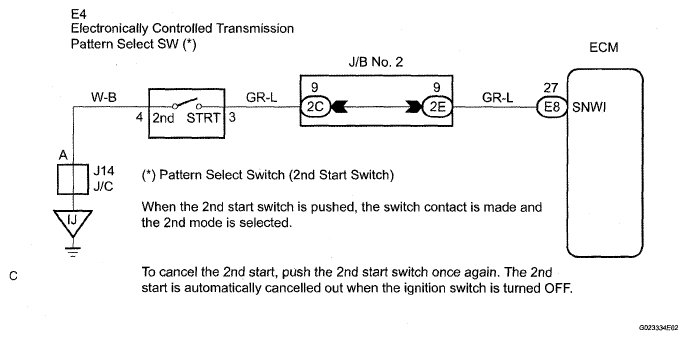

Fig 1: Identifying Pattern Select Switch Circuit Wiring Diagram
G05261293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
